ВБШвнг(А)-LS

Application

АВБШв, ВБШв cables are recommended for use in machine tool and packaging machine building, material handling and automation technology, automotive manufacturing and CNC machines.

Certifications and Standards

HD 21.12; HD 308 S2 DIN VDE 0281 Part 1, Part 12; DIN VDE 0293 p-308; DIN VDE 0295,
CEI 20-20/12, CEI 20-35 (EN60332-1)/CEI 20-37 (EN50267), EN50265-2-1
CE Low Voltage 73/23/EEC & 93/68/EEC Directives.,
ROHS Certification

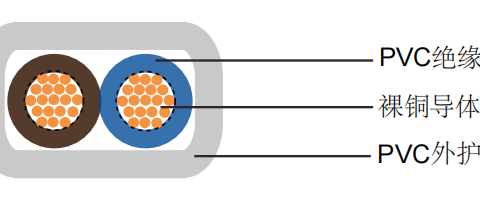

Construction

Conductor	Soft bare copper conductor, complies with DIN VDE 0295 cl.5, BS 6360 cl.5, IEC 60228 cl.5 and HD 383 standards
Insulation	PVC insulation category T12, following VDE-0281 Part 1
Core color	Color coding follows VDE-0293-308, yellow-green ground wire (three cores and above)
Shielding	None
Sheath material	PVC outer sheath TM2
Sheath color	Orange (similar to RAL2001), other colors can be customized as required.

Technical data

Nominal voltage	Uo/U 300/500 V
Test voltage	Core/core 3000V
Bending radius	Fixed laying: 4.0xD Flexible application: 15xD
Temperature range	Fixed installation: -40/+90 °C Flexible application: – 5/+90 °C Achievable temperature during short circuit: +160º C
Flame retardant	IEC 60332.1
Insulation resistance	20 MΩ x km
Environmentally friendly	Compliant with CEC and EU RoHS directives

Dimensions

Item number	Specifications	Conductor max. diameter	Outer diameter ± 5%	Copper weight	Cable weight
H33000205	2 x 0,50 mm²	0.21 mm	5 mm	9,6 Kg/km	37 Kg/km
H33000305	3 x 0,50 mm²	0.21 mm	5.3 mm	14,4 Kg/km	45 Kg/km
H33000405	4 x 0,50 mm²	0.21 mm	5.7 mm	19.2 Kg/km	51 Kg/km
H33000505	5 x 0,50 mm²	0.21 mm	6,4 mm	24 Kg/km	63 Kg/km
H33000705	7 x 0,50 mm²	0.21 mm	6,9 mm	33.6 Kg/km	77 Kg/km
H33001005	10 x 0,50 mm²	0.21 mm	8,8 mm	48 Kg/km	108 Kg/km
H33001205	12 x 0,50 mm²	0.21 mm	9,3 mm	576 Kg/km	127 Kg/km
H33001805	18 x 0,50 mm²	0.21 mm	10,9 mm	86,4 Kg/km	180 Kg/km
H33002505	25 x 0,50 mm²	0.21 mm	13,1 mm	120 Kg/km	240 Kg/km
H33003205	32 x 0,50 mm²	0.21 mm	14,2 mm	153,6 Kg/km	298 Kg/km
H33004205	42 x 0,50 mm²	0.21 mm	15,9 mm	201,6 Kg/km	380 Kg/km
H33006105	61 x 0,50 mm²	0.21 mm	18,7 mm	292,8 Kg/km	530 Kg/km
H33000207	2 x 0,75 mm²	0.21 mm	5.6 mm	14,4 Kg/km	48 Kg/km
H33000307	3 x 0,75 mm²	0.21 mm	5.9 mm	21,6 Kg/km	56 Kg/km
H33000407	4 x 0,75 mm²	0.21 mm	6,6 mm	28,8 Kg/km	70 Kg/km
H33000507	5 x 0,75 mm²	0.21 mm	7,2 mm	36 Kg/km	83 Kg/km
H33000707	7 x 0,75 mm²	0.21 mm	8 mm	50,4 Kg/km	106 Kg/km
H33001007	10 x 0,75 mm²	0.21 mm	10,2 mm	72 Kg/km	150 Kg/km
H33001207	12 x 0,75 mm²	0.21 mm	10,7 mm	86,4 Kg/km	174 Kg/km
H33001807	18 x 0,75 mm²	0.21 mm	126.6 mm	129,6 Kg/km	248 Kg/km
H33002507	25 x 0,75 mm²	0.21 mm	15,3 mm	180 Kg/km	339 Kg/km
H33003207	32 x 0,75 mm²	0.21 mm	16,6 mm	230,4 Kg/km	419 Kg/km
H33004207	42 x 0,75 mm²	0.21 mm	18,6 mm	302,4 Kg/km	535 Kg/km
H33006107	61 x 0,75 mm²	0.21 mm	21.8 mm	4392 Kg/km	750 Kg/km
