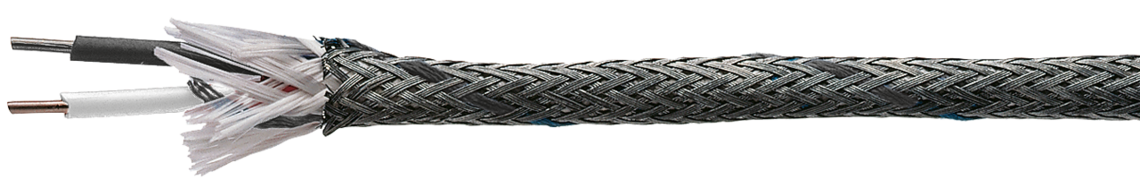

Type J thermocouple wire, silicone insulated, with insulated wire harness, steel wire armored and fiberglass braided. This thermocouple wire is suitable for type J, K, L, S, and R/S thermocouples.

DIN 43710 / 43714 (not for type B*)

* Non-standardized compensation cable for type B thermocouples with application temperatures up to 100 °C or 200 °C.

C= compensation cable · X = extension cable

Additional information

Also available in cross-sectional areas of 1.0 mm², 0.75 mm², 0.5 mm² and 0.22 mm²!

Construction

Insulated	EI2 complies. Conforms to EN 50363-1 + VDE 0207-363-1
Stranded	2 cores / 4 cores
Braided	Fiberglass
Armored	Galvanized steel wire armored with ribbon
Shape	Round shape
Conductor construction	Class 1 conductor
Conductor cross section	1.5 mm²
Outer diameter	Approx. 5.5 mm
Weight/100 meters	Approx. 6.4 Kg

Technical data

Bending radius	12 x d
Insulation temperature range	Fixed installation: -40/+180°C Flexible application: -25/+180°C Short-term use: +250°C
Insulation resistance	> 1 M Ω x km
Halogen-free	Conforms to IEC 60754-1 + VDE 0482-754-1
Fire protection performance	Flame retardant and self-extinguishing conforms to IEC 60332-1-2 + VDE 0482-332-1-2
Corrosivity of fire gases	Conforms to IEC 60754-2 + VDE 0482-754-2 – does not generate corrosive gases
Environmental protection	CompliantEURoHS Directive

Dimensions

No. Standard Type Material Cable type Insulation color (sheath) Voltage at 100 °C

L04238988 IEC 60584 Type T Cu – CuNi TX brown/white (brown) 4,28 mV

L04238982 IEC 60584 Type J Fe – CuNi JX black/white (black) 5,27 mV

L04238915 IEC 60584 Type K NiCr – Ni KCA green/white (green) 4,10 mV

L04238919 IEC 60584 Type K NiCr – Ni KCB green/white (green) 4,10 mV

L04238984 IEC 60584 Type K NiCr – Ni KX green/white (green) 4,10 mV

L04238983 IEC 60584 Type E NiCr – CuNi EX purple/white (purple) 6,32 mV

L04238917 IEC 60584 Type R/S PtRh13 – PTPtRh10 – PT R/SCB orange/white (orange) 0,65 mV

L04238911 IEC 60584 Type N NiCrSi – NiSi NC pink/white (pink) 2,77 mV

L04238912 DIN 43710 / 43714 Type L Fe CuNi LX red/blue (blue) 5,37 mV

L04238914 DIN 43710 / 43715 Type K ─ KCA ─ 4,10 mV

L04238916 DIN 43710 / 43716 Type R/S ─ R/SCB ─ 0,65 mV

L04238918 DIN 43710 / 43717 Type U Cu – CuNi UX red/brown (brown) 4,25 mV

L04238921 DIN 43710 / 43718 Type B* ─ BC-100 ─ 0,00 mV

L04238922 DIN 43710 / 43719 Type B* ─ BC200 ─ 0,033 mV

Other sizes and colors are available upon request. The above data are for reference only, and the actual product shall prevail.
