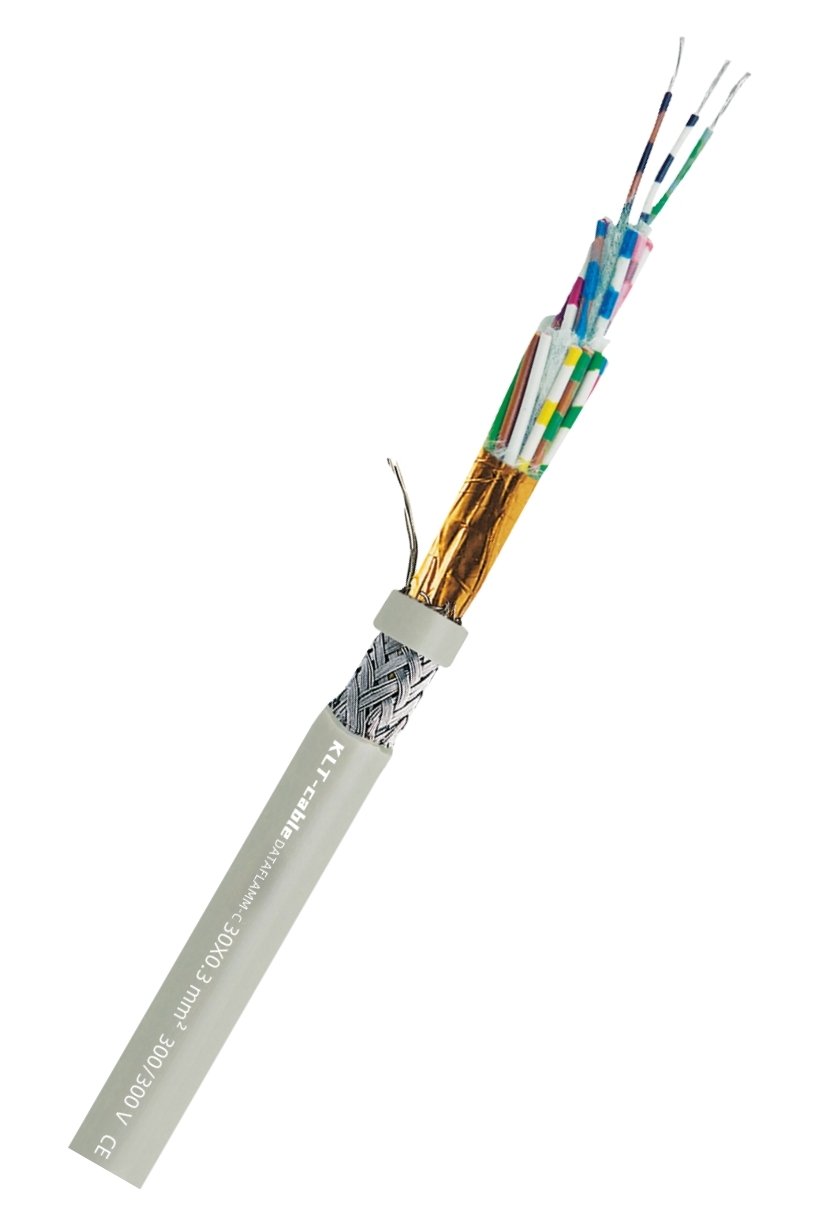

DATAFLAMM-C Halogen-free sheathed data cable 300/300V with total shielding
DATAFLAM halogen-free data cables can be used as connection cables for signaling, measuring, control, and calling and intercom functions, clock fixtures, scale devices, and office equipment. This cable is suitable for installation in dry, wet, and wet environments. PE-insulation core, compared with conventional PVC insulation core, is more conducive to ensuring the capacitance value. This cable is generally installed in communication equipment and data transmission systems such as public buildings, laboratories, trading centers, etc., where halogen diffusion must be avoided in the event of fire or flame transmission.
Halogen-free thermoplastic sheaths produce neither corrosive nor toxic gases.
CE= products comply with the EU Low Voltage Directive 2014/35/EU
application
The DATAFLAMM-C can be used as a connection cable for signal technology, measurement, control and intercom devices for paging and intercom systems, clock systems, weighing equipment and office equipment.
The cable can be laid on plaster and is suitable for use in dry, wet and humid rooms, as well as in masonry and concrete.
Applications include telecommunications and information processing systems in public buildings, laboratories, warehouses, and other buildings where halogen emissions must be avoided in the event of a fire.
Its shielding prevents interference from external pulses or high-frequency signals.
CE= products comply with the EU Low Voltage Directive 2014/35/EU
peculiarity
- Halogen-free, in accordance with DIN VDE 0482 Part 267, EN 50267-2-1, IEC 60754-1 (equivalent to DIN VDE 0472 Part 815) according to DIN VDE 0482 Part 267, DIN EN 50267-2-2, IEC 60754-2 (equivalent to DIN VDE 0472 Part 813)
- Halogen-free sheathing, self-extinguishing and flame retardant in accordance with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent to DIN VDE 0472 Part 804, Test Method B)
Product structure
| conductor | Bare copper conductors – Complies with DIN VDE 0295 cl.5, BS 6360 cl.5 and IEC 60228 cl.5
0.34 mm² = 7×0.25 mm |
|---|---|
| insulation | PE L/MD core insulation in accordance with DIN VDE 0819-103/DIN EN 50290-2-23 |
| shield | Tin plated wire weaving |
| structure | The core marking (paired marking) conforms to DIN 47100 The cores are stranded in pairs with the optimal pitch and the wire pairs are stranded with the best pitch |
| Sheath material: | HM2 outer sheath in accordance with DIN VDE 0207 Part 24 |
| Sheath color | Grey (RAL 7032) |
Technical parameters
| Operating voltage | 0.14 mm² = 300 V
≥ 0.25 mm² = 500 V |
|---|---|
| Test voltage | 0.14 mm² = 800 V
≥ 0.25 mm² = 1200 V |
| Bending radius | Fixed laying: 5xd
Flexible application: 10 xd |
| Temperature range | Fixed laying: -40/+85°C
Flexible application: -30 / +85°C |
| No halogens | Compliant with IEC 60754-1 + VDE 0482-754-1 |
| Flame spread | No flame spread, in accordance with IEC 60332-3-24 + VDE 0482-332-3-24 and IEC 60332-3-25 + VDE 0482-332-3-25 categories C and D |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of fire gases | Compliant with IEC 60754-2 + VDE 0482-754-2 – No corrosive gases are generated |
| Smoke density | Compliant with IEC 61034 + VDE 0482-1034 |
| flexibility | Can be moved occasionally |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|
| L63050214 | 2 x 0,14 mm² | 2,7 kg/km | 16 kg/km | Send an inquiry |
| L63050314 | 3 x 0,14 mm² | 4 kg/km | 18 kg/km | Send an inquiry |
| L63050414 | 4 x 0,14 mm² | 5,4 kg/km | 20 kg/km | Send an inquiry |
| L63050514 | 5 x 0,14 mm² | 6,7 kg/km | 22 kg/km | Send an inquiry |
| L63050714 | 7 x 0,14 mm² | 9,4 kg/km | 28 kg/km | Send an inquiry |
| L63050814 | 8 x 0,14 mm² | 10,8 kg/km | 35 kg/km | Send an inquiry |
| L63051214 | 12 x 0,14 mm² | 16,1 kg/km | 42 kg/km | Send an inquiry |
| L63051414 | 14 x 0,14 mm² | 18,8 kg/km | 47 kg/km | Send an inquiry |
| L63051614 | 16 x 0,14 mm² | 21,5 kg/km | 55 kg/km | Send an inquiry |
| L63051814 | 18 x 0,14 mm² | 24,2 kg/km | 61 kg/km | Send an inquiry |
| L63052114 | 21 x 0,14 mm² | 28,2 kg/km | 72 kg/km | Send an inquiry |
| L63052414 | 24 x 0,14 mm² | 32,3 kg/km | 80 kg/km | Send an inquiry |
| L63052714 | 27 x 0,14 mm² | 36,3 kg/km | 91 kg/km | Send an inquiry |
| L63053014 | 30 x 0,14 mm² | 40,3 kg/km | 97 kg/km | Send an inquiry |
| L63053214 | 32 x 0,14 mm² | 43 kg/km | 103 kg/km | Send an inquiry |
| L63053614 | 36 x 0,14 mm² | 48,4 kg/km | 113 kg/km | Send an inquiry |
| L63054014 | 40 x 0,14 mm² | 53,8 kg/km | 123 kg/km | Send an inquiry |
| L63054414 | 44 x 0,14 mm² | 59,1 kg/km | 133 kg/km | Send an inquiry |
| L63055014 | 50 x 0,14 mm² | 67,2 kg/km | 142 kg/km | Send an inquiry |
| L63056114 | 61 x 0,14 mm² | 82 kg/km | 165 kg/km | Send an inquiry |
| L63050225 | 2 x 0,25 mm² | 4,8 kg/km | 19 kg/km | Send an inquiry |
| L63050325 | 3 x 0,25 mm² | 7,2 kg/km | 23 kg/km | Send an inquiry |
| L63050425 | 4 x 0,25 mm² | 9,6 kg/km | 26 kg/km | Send an inquiry |
| L63050525 | 5 x 0,25 mm² | 12 kg/km | 31 kg/km | Send an inquiry |
| L63050725 | 7 x 0,25 mm² | 16,8 kg/km | 38 kg/km | Send an inquiry |
| L63050825 | 8 x 0,25 mm² | 19,2 kg/km | 45 kg/km | Send an inquiry |
| L63051225 | 12 x 0,25 mm² | 28,8 kg/km | 61 kg/km | Send an inquiry |
| L63051425 | 14 x 0,25 mm² | 33,6 kg/km | 69 kg/km | Send an inquiry |
| L63051625 | 16 x 0,25 mm² | 38,4 kg/km | 77 kg/km | Send an inquiry |
| L63051825 | 18 x 0,25 mm² | 43,2 kg/km | 85 kg/km | Send an inquiry |
| L63052125 | 21 x 0,25 mm² | 50,4 kg/km | 106 kg/km | Send an inquiry |
| L63052425 | 24 x 0,25 mm² | 57,6 kg/km | 110 kg/km | Send an inquiry |
| L63052725 | 27 x 0,25 mm² | 64,8 kg/km | 114 kg/km | Send an inquiry |
| L63053025 | 30 x 0,25 mm² | 72 kg/km | 125 kg/km | Send an inquiry |
| L63053225 | 32 x 0,25 mm² | 76,8 kg/km | 132 kg/km | Send an inquiry |
| L63053625 | 36 x 0,25 mm² | 86,4 kg/km | 156 kg/km | Send an inquiry |
| L63054025 | 40 x 0,25 mm² | 96 kg/km | 173 kg/km | Send an inquiry |
| L63054425 | 44 x 0,25 mm² | 105,6 kg/km | 184 kg/km | Send an inquiry |
| L63055025 | 50 x 0,25 mm² | 120 kg/km | 204 kg/km | Send an inquiry |
| L63056125 | 61 x 0,25 mm² | 146,4 kg/km | 241 kg/km | Send an inquiry |
| L63050234 | 2 x 0,34 mm² | 6,5 kg/km | 26 kg/km | Send an inquiry |
| L63050334 | 3 x 0,34 mm² | 9,8 kg/km | 30 kg/km | Send an inquiry |
| L63050434 | 4 x 0,34 mm² | 13,1 kg/km | 36 kg/km | Send an inquiry |
| L63050534 | 5 x 0,34 mm² | 16,3 kg/km | 43 kg/km | Send an inquiry |
| L63050734 | 7 x 0,34 mm² | 22,8 kg/km | 53 kg/km | Send an inquiry |
| L63050834 | 8 x 0,34 mm² | 26,1 kg/km | 66 kg/km | Send an inquiry |
| L63051234 | 12 x 0,34 mm² | 39,2 kg/km | 85 kg/km | Send an inquiry |
| L63051434 | 14 x 0,34 mm² | 45,7 kg/km | 104 kg/km | Send an inquiry |
| L63051634 | 16 x 0,34 mm² | 52,2 kg/km | 116 kg/km | Send an inquiry |
| L63051834 | 18 x 0,34 mm² | 58,8 kg/km | 128 kg/km | Send an inquiry |
| L63052134 | 21 x 0,34 mm² | 68,5 kg/km | 146 kg/km | Send an inquiry |
| L63052434 | 24 x 0,34 mm² | 78,3 kg/km | 157 kg/km | Send an inquiry |
| L63052734 | 27 x 0,34 mm² | 88,1 kg/km | 172 kg/km | Send an inquiry |
| L63053034 | 30 x 0,34 mm² | 97,9 kg/km | 187 kg/km | Send an inquiry |
| L63053234 | 32 x 0,34 mm² | 104,4 kg/km | 199 kg/km | Send an inquiry |
| L63053634 | 36 x 0,34 mm² | 117,5 kg/km | 220 kg/km | Send an inquiry |
| L63054034 | 40 x 0,34 mm² | 130,6 kg/km | 244 kg/km | Send an inquiry |
| L63054434 | 44 x 0,34 mm² | 143,6 kg/km | 261 kg/km | Send an inquiry |
| L63055034 | 50 x 0,34 mm² | 163,2 kg/km | 304 kg/km | Send an inquiry |
| L63056134 | 61 x 0,34 mm² | 199,1 kg/km | 358 kg/km | Send an inquiry |
| L63050250 | 2 x 0,50 mm² | 9,6 kg/km | 31 kg/km | Send an inquiry |
| L63050350 | 3 x 0,50 mm² | 14,4 kg/km | 36 kg/km | Send an inquiry |
| L63050450 | 4 x 0,50 mm² | 19,2 kg/km | 43 kg/km | Send an inquiry |
| L63050550 | 5 x 0,50 mm² | 24 kg/km | 51 kg/km | Send an inquiry |
| L63050750 | 7 x 0,50 mm² | 33,6 kg/km | 67 kg/km | Send an inquiry |
| L63050850 | 8 x 0,50 mm² | 38,4 kg/km | 82 kg/km | Send an inquiry |
| L63051250 | 12 x 0,50 mm² | 57,6 kg/km | 113 kg/km | Send an inquiry |
| L63051450 | 14 x 0,50 mm² | 67,2 kg/km | 127 kg/km | Send an inquiry |
| L63051650 | 16 x 0,50 mm² | 76,8 kg/km | 142 kg/km | Send an inquiry |
| L63051850 | 18 x 0,50 mm² | 86,4 kg/km | 157 kg/km | Send an inquiry |
| L63052150 | 21 x 0,50 mm² | 100,8 kg/km | 180 kg/km | Send an inquiry |
| L63052450 | 24 x 0,50 mm² | 115,2 kg/km | 195 kg/km | Send an inquiry |
| L63052750 | 27 x 0,50 mm² | 129,6 kg/km | 213 kg/km | Send an inquiry |
| L63053050 | 30 x 0,50 mm² | 144 kg/km | 232 kg/km | Send an inquiry |
| L63053250 | 32 x 0,50 mm² | 153,6 kg/km | 248 kg/km | Send an inquiry |
| L63053650 | 36 x 0,50 mm² | 172,8 kg/km | 274 kg/km | Send an inquiry |
| L63054450 | 44 x 0,50 mm² | 211,2 kg/km | 341 kg/km | Send an inquiry |
| L63055050 | 50 x 0,50 mm² | 240 kg/km | 411 kg/km | Send an inquiry |
| L63056150 | 61 x 0,50 mm² | 292,8 kg/km | 448 kg/km | Send an inquiry |
| L63050275 | 2 x 0,75 mm² | 14,4 kg/km | 41 kg/km | Send an inquiry |
| L63050375 | 3 x 0,75 mm² | 21,6 kg/km | 49 kg/km | Send an inquiry |
| L63050475 | 4 x 0,75 mm² | 28,8 kg/km | 62 kg/km | Send an inquiry |
| L63050575 | 5 x 0,75 mm² | 36 kg/km | 73 kg/km | Send an inquiry |
| L63050775 | 7 x 0,75 mm² | 50,4 kg/km | 91 kg/km | Send an inquiry |
| L63050875 | 8 x 0,75 mm² | 57,6 kg/km | 119 kg/km | Send an inquiry |
| L63051275 | 12 x 0,75 mm² | 86,4 kg/km | 153 kg/km | Send an inquiry |
| L63051475 | 14 x 0,75 mm² | 100,8 kg/km | 170 kg/km | Send an inquiry |
| L63051675 | 16 x 0,75 mm² | 115,2 kg/km | 192 kg/km | Send an inquiry |
| L63051875 | 18 x 0,75 mm² | 129,6 kg/km | 213 kg/km | Send an inquiry |
| L63052175 | 21 x 0,75 mm² | 151,2 kg/km | 248 kg/km | Send an inquiry |
| L63052475 | 24 x 0,75 mm² | 172,8 kg/km | 270 kg/km | Send an inquiry |
| L63052775 | 27 x 0,75 mm² | 194,4 kg/km | 297 kg/km | Send an inquiry |
| L63053075 | 30 x 0,75 mm² | 216 kg/km | 339 kg/km | Send an inquiry |
| L63053275 | 32 x 0,75 mm² | 230,4 kg/km | 360 kg/km | Send an inquiry |
| L63053675 | 36 x 0,75 mm² | 259,2 kg/km | 399 kg/km | Send an inquiry |
| L63054075 | 40 x 0,75 mm² | 288 kg/km | 443 kg/km | Send an inquiry |
| L63054475 | 44 x 0,75 mm² | 316,8 kg/km | 475 kg/km | Send an inquiry |
| L63055075 | 50 x 0,75 mm² | 360 kg/km | 530 kg/km | Send an inquiry |
| L63056175 | 61 x 0,75 mm² | 439,2 kg/km | 648 kg/km | Send an inquiry |
| L63050280 | 2 x 1,00 mm² | 19,2 kg/km | 47 kg/km | Send an inquiry |
| L63050380 | 3 x 1,00 mm² | 28,8 kg/km | 56 kg/km | Send an inquiry |
| L63050480 | 4 x 1,00 mm² | 38,4 kg/km | 71 kg/km | Send an inquiry |
| L63050580 | 5 x 1,00 mm² | 48 kg/km | 86 kg/km | Send an inquiry |
| L63050680 | 6 x 1,00 mm² | 57,6 kg/km | 100 kg/km | Send an inquiry |
| L63050780 | 7 x 1,00 mm² | 67,2 kg/km | 116 kg/km | Send an inquiry |
| L63050285 | 2 x 1,50 mm² | 28,8 kg/km | 64 kg/km | Send an inquiry |
| L63050385 | 3 x 1,50 mm² | 43,2 kg/km | 77 kg/km | Send an inquiry |
| L63050485 | 4 x 1,50 mm² | 57,6 kg/km | 94 kg/km | Send an inquiry |
| L63050585 | 5 x 1,50 mm² | 72 kg/km | 122 kg/km | Send an inquiry |
| L63050685 | 6 x 1,50 mm² | 86,4 kg/km | 142 kg/km | Send an inquiry |
| L63050785 | 7 x 1,50 mm² | 100,8 kg/km | 153 kg/km | Send an inquiry |
Other sizes and colors are available upon request.The above data is for reference only and is subject to the actual product.
