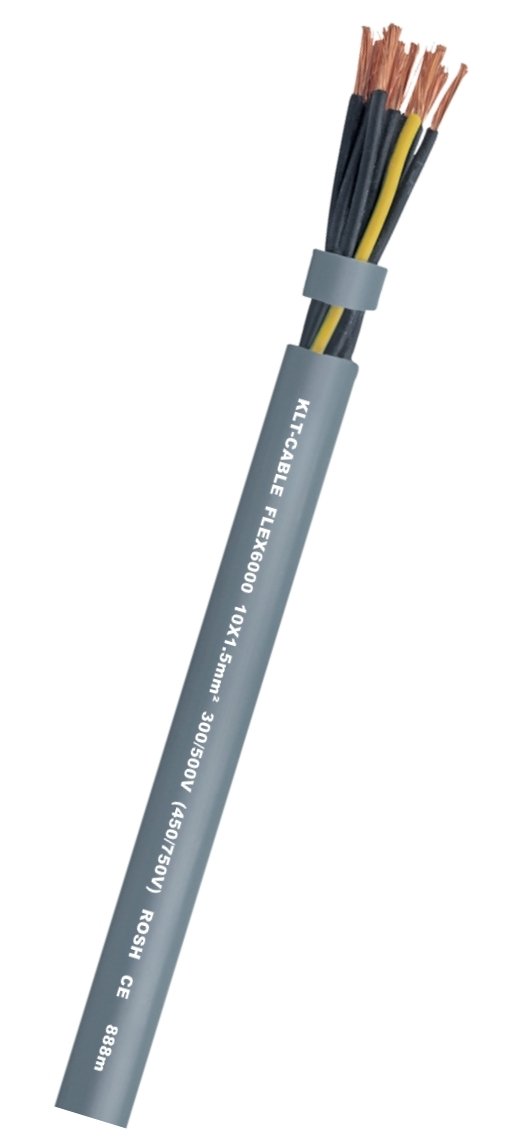

FLEX6000 Medium Speed PVC Sheathed Flexible Energy Chain Data Cable 300V

application

FLEX6000 is a continuous flexible PVC control cable for energy chain systems with numbered cores and small bend radii. This energy chain cable is recommended for use in wood processing and packaging machinery, assembly lines, and automated plants.

CE= products comply with the EU Low Voltage Directive 2014/35/EU

peculiarity

Very good flexibility
Small bending radius
Reinforced outer sheath

remark

Custom hybrid cables are also available, for example

3G1,0 + 16 x 0,34 mm²

3G1,0 + 08 x 0,34 mm²

1G0,5 + 04 x 0,34 mm²

Product structure

conductor	Fine bare copper multi-stranded wire (according to DIN EN 60228)
insulation	PVC mixture with high mechanical properties
Core color	With a serially numbered black core wire, conforming. Complies with EN 50334 + VDE 0293-334 > 3 cores with green and yellow ground wire
shield	not
Sheath material	Low viscosity, PVC-based mixture for use in energy chains
Sheath color	Grey (RAL 7000) Other colours available on request

Technical parameters

Operating voltage	＜0.5 mm2: 300V ; ≥0.5 mm2: 500V
Test voltage	1500V
Bending radius	Fixed laying 7xd Non-energy chain in-chain 10xd 12.5xd in the energy chain
Temperature range	Fixed laying: -15/+70 °C Continuous flexibility: -5/+90 °C Continuous flexibility: +5/+90 °C
Movement speed	Overhead 1 mls
acceleration	10 mls
Travel distance	Overhead with a distance of less than 10 meters

Cable parameters

numbering	specification	The monofilament has a large diameter	Cable OD – ø ± 5%	Copper weight	Finished product weight
L37720201	2 x 0,14 mm²	0.11 mm	3,1 mm	2,7Kg/Km	13Kg/Km	Send an inquiry
L37720301	3 x 0,14 mm²	0.11 mm	3.3 mm	4Kg/Km	15Kg/Km	Send an inquiry
L37720401	4 x 0,14 mm²	0.11 mm	3.5 mm	5,4Kg/Km	17Kg/Km	Send an inquiry
L37720501	5 x 0,14 mm²	0.11 mm	3.8 mm	6,7Kg/Km	21Kg/Km	Send an inquiry
L37720701	7 x 0,14 mm²	0.11 mm	4.4 mm	9,4Kg/Km	29Kg/Km	Send an inquiry
L37721001	10 x 0,14 mm²	0.11 mm	5.2 mm	13,4Kg/Km	36Kg/Km	Send an inquiry
L37721201	12 x 0,14 mm²	0.11 mm	5.6 mm	16,1Kg/Km	43Kg/Km	Send an inquiry
L37721401	14 x 0,14 mm²	0.11 mm	5.8 mm	18,8Kg/Km	48Kg/Km	Send an inquiry
L37721801	18 x 0,14 mm²	0.11 mm	6,4 mm	24,2Kg/Km	60Kg/Km	Send an inquiry
L37722501	25 x 0,14 mm²	0.11 mm	7,8 mm	33.6Kg/Km	81Kg/Km	Send an inquiry
L37720202	2 x 0,25 mm²	0.11 mm	3,4 mm	4,8Kg/Km	16Kg/Km	Send an inquiry
L37720302	3 x 0,25 mm²	0.11 mm	3.6 mm	7,2Kg/Km	19Kg/Km	Send an inquiry
L37720402	4 x 0,25 mm²	0.11 mm	3.9 mm	9,6Kg/Km	23Kg/Km	Send an inquiry
L37720502	5 x 0,25 mm²	0.11 mm	4.2 mm	12Kg/Km	29Kg/Km	Send an inquiry
L37720702	7 x 0,25 mm²	0.11 mm	5 mm	16,8Kg/Km	39Kg/Km	Send an inquiry
L37721002	10 x 0,25 mm²	0.11 mm	6 mm	24Kg/Km	52Kg/Km	Send an inquiry
L37721202	12 x 0,25 mm²	0.11 mm	6,2 mm	28,8Kg/Km	60Kg/Km	Send an inquiry
L37721402	14 x 0,25 mm²	0.11 mm	6,5 mm	33.6Kg/Km	67Kg/Km	Send an inquiry
L37721802	18 x 0,25 mm²	0.11 mm	7,2 mm	43.2Kg/Km	85Kg/Km	Send an inquiry
L37722502	25 x 0,25 mm²	0.11 mm	8,7 mm	60Kg/Km	114Kg/Km	Send an inquiry
L37720203	2 x 0,34 mm²	0.11 mm	4,0 mm	6.5Kg/Km	22Kg/Km	Send an inquiry
L37720303	3 x 0,34 mm²	0.11 mm	4.2 mm	9,8Kg/Km	27Kg/Km	Send an inquiry
L37720403	4 x 0,34 mm²	0.11 mm	4.6 mm	13,1Kg/Km	32Kg/Km	Send an inquiry
L37720503	5 x 0,34 mm²	0.11 mm	5 mm	16,3Kg/Km	39Kg/Km	Send an inquiry
L37720703	7 x 0,34 mm²	0.11 mm	6,1 mm	22,8Kg/Km	58Kg/Km	Send an inquiry
L37721003	10 x 0,34 mm²	0.11 mm	7,3 mm	32,6Kg/Km	73Kg/Km	Send an inquiry
L37721203	12 x 0,34 mm²	0.11 mm	7,5 mm	39.2Kg/Km	84Kg/Km	Send an inquiry
L37721403	14 x 0,34 mm²	0.11 mm	7,9 mm	45.7Kg/Km	95Kg/Km	Send an inquiry
L37721803	18 x 0,34 mm²	0.11 mm	8,8 mm	588Kg/Km	120Kg/Km	Send an inquiry
L37722503	25 x 0,34 mm²	0.11 mm	10, mm	81,6Kg/Km	169Kg/Km	Send an inquiry

L37720205	2 x 0,50 mm²	0.16 mm	5.3 mm	9,6Kg/Km	38Kg/Km	Send an inquiry
L37720305	3 x 0,50 mm²	0.16 mm	5.6 mm	14,4Kg/Km	45Kg/Km	Send an inquiry
L37720405	4 x 0,50 mm²	0.16 mm	6,2 mm	19.2Kg/Km	56Kg/Km	Send an inquiry
L37720505	5 x 0,50 mm²	0.16 mm	6,8 mm	24Kg/Km	69Kg/Km	Send an inquiry
L37720705	7 x 0,50 mm²	0.16 mm	8 mm	33.6Kg/Km	97Kg/Km	Send an inquiry
L37721205	12 x 0,50 mm²	0.16 mm	9.9 mm	576Kg/Km	141Kg/Km	Send an inquiry
L37721805	18 x 0,50 mm²	0.16 mm	116 mm	86,4Kg/Km	203Kg/Km	Send an inquiry
L37722505	25 x 0,50 mm²	0.16 mm	14,2 mm	120Kg/Km	280Kg/Km	Send an inquiry
L37723605	36 x 0,50 mm²	0.16 mm	15,9 mm	172,8Kg/Km	283Kg/Km	Send an inquiry
L37724405	44 x 0,50 mm²	0.16 mm	18,2 mm	211,2Kg/Km	472Kg/Km	Send an inquiry
L37725205	52 x 0,50 mm²	0.16 mm	189 mm	249,6Kg/Km	537Kg/Km	Send an inquiry
L37726505	65 x 0,50 mm²	0.16 mm	21,5 mm	312Kg/Km	677Kg/Km	Send an inquiry
L37720207	2 x 0,75 mm²	0.16 mm	5.8 mm	14,4Kg/Km	46Kg/Km	Send an inquiry
L37720307	3 x 0,75 mm²	0.16 mm	6.3 mm	21,6Kg/Km	59Kg/Km	Send an inquiry
L37720407	4 x 0,75 mm²	0.16 mm	6,8 mm	28,8Kg/Km	71Kg/Km	Send an inquiry
L37720507	5 x 0,75 mm²	0.16 mm	7,6 mm	36Kg/Km	90Kg/Km	Send an inquiry
L37720707	7 x 0,75 mm²	0.16 mm	9,1 mm	50,4Kg/Km	128Kg/Km	Send an inquiry
L37721207	12 x 0,75 mm²	0.16 mm	11,1 mm	86,4 kg / km	186 kg/km	Send an inquiry
L37721807	18 x 0,75 mm²	0.16 mm	13,1 mm	129,6Kg/Km	270Kg/Km	Send an inquiry
L37722507	25 x 0,75 mm²	0.16 mm	15,9 mm	180Kg/Km	368Kg/Km	Send an inquiry
L37723607	36 x 0,75 mm²	0.16 mm	18,1 mm	259,2Kg/Km	516Kg/Km	Send an inquiry
L37725207	52 x 0,75 mm²	0.16 mm	21,4 mm	374,4Kg/Km	721Kg/Km	Send an inquiry
L37726507	65 x 0,75 mm²	0.16 mm	243 mm	468Kg/Km	913Kg/Km	Send an inquiry
L37720210	2 x 1,00 mm²	0.16 mm	6,2 mm	19.2Kg/Km	56Kg/Km	Send an inquiry
L37720310	3 x 1,00 mm²	0.16 mm	6,5 mm	28,8 kg/km	68Kg/Km	Send an inquiry
L37720410	4 x 1,00 mm²	0.16 mm	7,1 mm	384Kg/Km	82Kg/Km	Send an inquiry
L37720510	5 x 1,00 mm²	0.16 mm	7,9 mm	48Kg/Km	104Kg/Km	Send an inquiry
L37720710	7 x 1,00 mm²	0.16 mm	9,4 mm	672Kg/Km	147Kg/Km	Send an inquiry
L37721210	12 x 1,00 mm²	0.16 mm	11,5 mm	115,2Kg/Km	218Kg/Km	Send an inquiry
L37721810	18 x 1,00 mm²	0.16 mm	13,8 mm	172,8Kg/Km	324Kg/Km	Send an inquiry
L37722510	25 x 1,00 mm²	0.16 mm	16,7 mm	240Kg/Km	442Kg/Km	Send an inquiry
L37723610	36 x 1,00 mm²	0.16 mm	18,8 mm	345,6Kg/Km	615Kg/Km	Send an inquiry
L37725210	52 x 1,00 mm²	0.16 mm	22.5 mm	499,2Kg/Km	866Kg/Km	Send an inquiry
L37726510	65 x 1,00 mm²	0.16 mm	25,4 mm	624Kg/Km	1095Kg/Km	Send an inquiry
L37720215	2 x 1,50 mm²	0.16 mm	6,8 mm	28,8Kg/Km	70Kg/Km	Send an inquiry
L37720315	3 x 1,50 mm²	0.16 mm	7,2 mm	43.2Kg/Km	87Kg/Km	Send an inquiry
L37720415	4 x 1,50 mm²	0.16 mm	8 mm	576Kg/Km	111Kg/Km	Send an inquiry
L37720515	5 x 1,50 mm²	0.16 mm	8,7 mm	72Kg/Km	136Kg/Km	Send an inquiry
L37720715	7 x 1,50 mm²	0.16 mm	106 mm	100,8Kg/Km	198Kg/Km	Send an inquiry
L37721215	12 x 1,50 mm²	0.16 mm	13 mm	172,8Kg/Km	294Kg/Km	Send an inquiry
L37721815	18 x 1,50 mm²	0.16 mm	15,5 mm	259,2Kg/Km	437Kg/Km	Send an inquiry
L37722515	25 x 1,50 mm²	0.16 mm	18,8 mm	360Kg/Km	594Kg/Km	Send an inquiry
L37723615	36 x 1,50 mm²	0.16 mm	21,3 mm	5184Kg/Km	835Kg/Km	Send an inquiry
L37725215	52 x 1,50 mm²	0.16 mm	25,4 mm	7488Kg/Km	1182Kg/Km	Send an inquiry
L37726515	65 x 1,50 mm²	0.16 mm	287 mm	936Kg/Km	1491Kg/Km	Send an inquiry
L37720225	2 x 2,50 mm²	0.16 mm	8,6 mm	48Kg/Km	111Kg/Km	Send an inquiry
L37720325	3 x 2,50 mm²	0.16 mm	9,3 mm	72Kg/Km	143Kg/Km	Send an inquiry
L37720425	4 x 2,50 mm²	0.16 mm	10,1 mm	96Kg/Km	176Kg/Km	Send an inquiry
L37720525	5 x 2,50 mm²	0.16 mm	11,3 mm	120Kg/Km	221Kg/Km	Send an inquiry
L37720725	7 x 2,50 mm²	0.16 mm	13,6 mm	168Kg/Km	224Kg/Km	Send an inquiry
L37721225	12 x 2,50 mm²	0.16 mm	16,9 mm	288Kg/Km	486Kg/Km	Send an inquiry
L37721825	18 x 2,50 mm²	0.16 mm	203 mm	432Kg/Km	707Kg/Km	Send an inquiry
L37722525	25 x 2,50 mm²	0.16 mm	247 mm	600Kg/Km	950Kg/Km	Send an inquiry
L37723625	36 x 2,50 mm²	0.16 mm	279 mm	864Kg/Km	1390Kg/Km	Send an inquiry
L37720240	2 x 4,00 mm²	0.16 mm	9.9 mm	768Kg/Km	156Kg/Km	Send an inquiry
L37720340	3 x 4,00 mm²	0.16 mm	10,8 mm	115,2Kg/Km	213Kg/Km	Send an inquiry
L37720440	4 x 4,00 mm²	0.16 mm	1188 mm	153,6Kg/Km	269Kg/Km	Send an inquiry
L37720540	5 x 4,00 mm²	0.16 mm	13,1 mm	192Kg/Km	321Kg/Km	Send an inquiry
L37720740	7 x 4,00 mm²	0.16 mm	16,5 mm	268,8Kg/Km	488Kg/Km	Send an inquiry
L37720260	2 x 6,00 mm²	0.21 mm	12,3 mm	115,2Kg/Km	227Kg/Km	Send an inquiry
L37720360	3 x 6,00 mm²	0.21 mm	13 mm	172,8Kg/Km	305Kg/Km	Send an inquiry
L37720460	4 x 6,00 mm²	0.21 mm	14,4 mm	230,4Kg/Km	391Kg/Km	Send an inquiry
L37720560	5 x 6,00 mm²	0.21 mm	16,1 mm	288Kg/Km	472Kg/Km	Send an inquiry
L37720760	7 x 6,00 mm²	0.21 mm	19.5 mm	403,2Kg/Km	690Kg/Km	Send an inquiry
L37720361	3 x 10,0 mm²	0.21 mm	15,7 mm	288Kg/Km	475Kg/Km	Send an inquiry
L37720461	4 x 10,0 mm²	0.21 mm	173 mm	384Kg/Km	630Kg/Km	Send an inquiry
L37720561	5 x 10,0 mm²	0.21 mm	19.5 mm	480Kg/Km	673Kg/Km	Send an inquiry
L37720462	4 x 16,0 mm²	0.21 mm	20.9 mm	614,4Kg/Km	934Kg/Km	Send an inquiry
L37720562	5 x 16,0 mm²	0.21 mm	23,3 mm	768Kg/Km	1133Kg/Km	Send an inquiry
L37720463	4 x 25,0 mm²	0.21 mm	247 mm	960Kg/Km	1310Kg/Km	Send an inquiry
L37720464	4 x 35,0 mm²	0.21 mm	287 mm	1344Kg/Km	1807Kg/Km	Send an inquiry
L37720465	4 x 50,0 mm²	0.31 mm	34.5 mm	1920Kg/Km	2623Kg/Km	Send an inquiry
