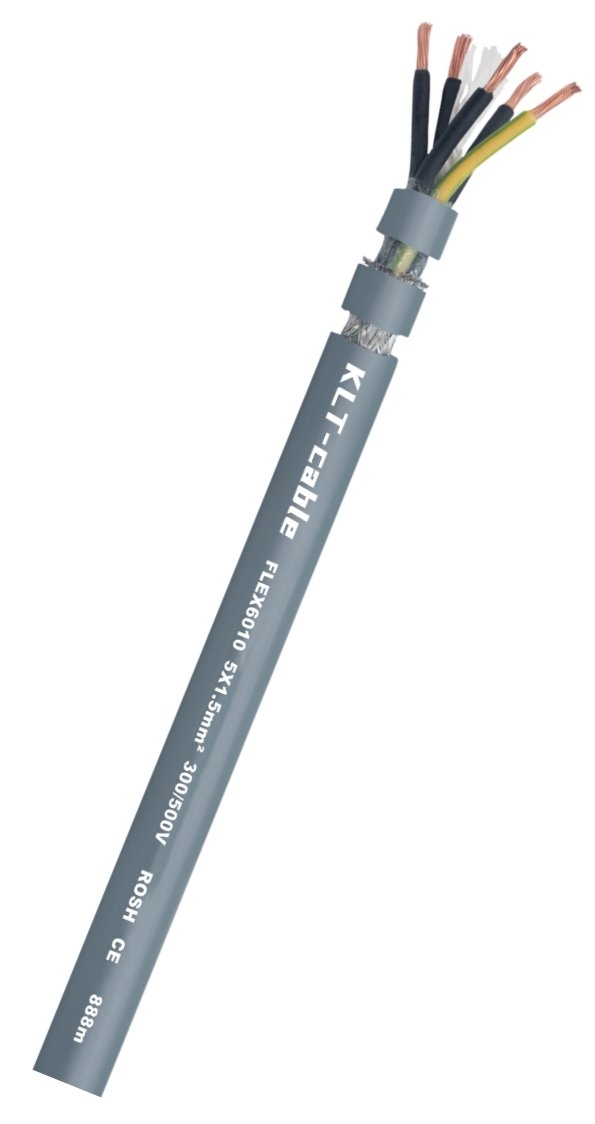

FLEX6010 Medium Speed PVC Sheathed Flexible Energy Chain Special Shielded Data Cable 300V

application

FLEX6010 bend-resistant data cables are mainly used in data transmission systems in automated production processes for measuring, controlling and adjusting signals, which are more flexible and durable, suitable for use in frequently moving machinery sites, and are designed for recycling in power energy chains.

EMC= Electromagnetic Compatibility. In order to optimize EMC characteristics,

We recommend: Please ensure that the shielding at both ends of the cable is fully and fully touched during installation/connection.

CE= products comply with the EU Low Voltage Directive 2014/35/EU

peculiarity

Very good flexibility
Small bending radius
EMC applications
Reinforced outer sheath

remark

Custom hybrid cables are also available, for example

3G1,0 + 16 x 0,34 mm²

3G1,0 + 08 x 0,34 mm²

1G0,5 + 04 x 0,34 mm²

Product structure

conductor	Fine bare copper multi-stranded wire (according to DIN EN 60228)
insulation	PVC mixture with high mechanical properties
Core color	With a serially numbered black core wire, conforming. Complies with EN 50334 + VDE 0293-334 > 3 cores with green and yellow ground wire
shield	Copper weaving
Sheath material	Low viscosity, PVC mixture for use in energy chains
Sheath color	Grey (RAL 7000) Other colours available on request

Technical parameters

Operating voltage	300V
Test voltage	1500V
Bending radius	Fixed laying 7xd Non-energy chain in-chain 10xd 12.5xd in the energy chain
Temperature range	Fixed laying: -15/+70 °C Continuous flexibility: -5/+90 °C Continuous flexibility: +5/+90 °C
Movement speed	Overhead 1 mls
acceleration	10 mls
Travel distance	Overhead with a distance of less than 10 meters

Cable parameters

numbering	specification	Monofilament max.	Cable diameter – ø ± 5%	Copper weight	Finished product weight
L37820201	2 x 0,14 mm²	0.11 mm	3.7 mm	11,6Kg/Km	20Kg/Km
L37820301	3 x 0,14 mm²	0.11 mm	3.9 mm	15,0Kg/Km	24Kg/Km
L37820401	4 x 0,14 mm²	0.11 mm	4.1 mm	15,7Kg/Km	26Kg/Km
L37820501	5 x 0,14 mm²	0.11 mm	4.4 mm	18,8Kg/Km	32Kg/Km
L37820701	7 x 0,14 mm²	0.11 mm	5.2 mm	23,4Kg/Km	42Kg/Km
L37821201	12 x 0,14 mm²	0.11 mm	6.3 mm	33,9Kg/Km	59Kg/Km
L37821801	18 x 0,14 mm²	0.11 mm	7,1 mm	45.5Kg/Km	78Kg/Km
L37822501	25 x 0,14 mm²	0.11 mm	8,8 mm	598Kg/Km	110Kg/Km
L37820202	2 x 0,25 mm²	0.11 mm	4 mm	15,1Kg/Km	24Kg/Km
L37820302	3 x 0,25 mm²	0.11 mm	4.2 mm	18,3Kg/Km	30Kg/Km
L37820402	4 x 0,25 mm²	0.11 mm	4.5 mm	21,7Kg/Km	34Kg/Km
L37820502	5 x 0,25 mm²	0.11 mm	5 mm	25,9Kg/Km	42Kg/Km
L37820702	7 x 0,25 mm²	0.11 mm	5.7 mm	32,9Kg/Km	54Kg/Km
L37821202	12 x 0,25 mm²	0.11 mm	6,9 mm	48,5Kg/Km	76Kg/Km
L37821802	18 x 0,25 mm²	0.11 mm	8,3 mm	67Kg/Km	112Kg/Km
L37822502	25 x 0,25 mm²	0.11 mm	9,7 mm	89,1Kg/Km	145Kg/Km
L37820203	2 x 0,34 mm²	0.11 mm	4.8 mm	18,7Kg/Km	33Kg/Km
L37820303	3 x 0,34 mm²	0.11 mm	5 mm	23,7Kg/Km	39Kg/Km
L37820403	4 x 0,34 mm²	0.11 mm	5,4 mm	27,1Kg/Km	46Kg/Km
L37820503	5 x 0,34 mm²	0.11 mm	5.8 mm	32,3Kg/Km	54Kg/Km
L37820703	7 x 0,34 mm²	0.11 mm	6,8 mm	42,4Kg/Km	74Kg/Km
L37821203	12 x 0,34 mm²	0.11 mm	8,5 mm	63Kg/Km	116Kg/Km
L37821803	18 x 0,34 mm²	0.11 mm	9,8 mm	879Kg/Km	151Kg/Km
L37822503	25 x 0,34 mm²	0.11 mm	117 mm	136Kg/Km	209Kg/Km
