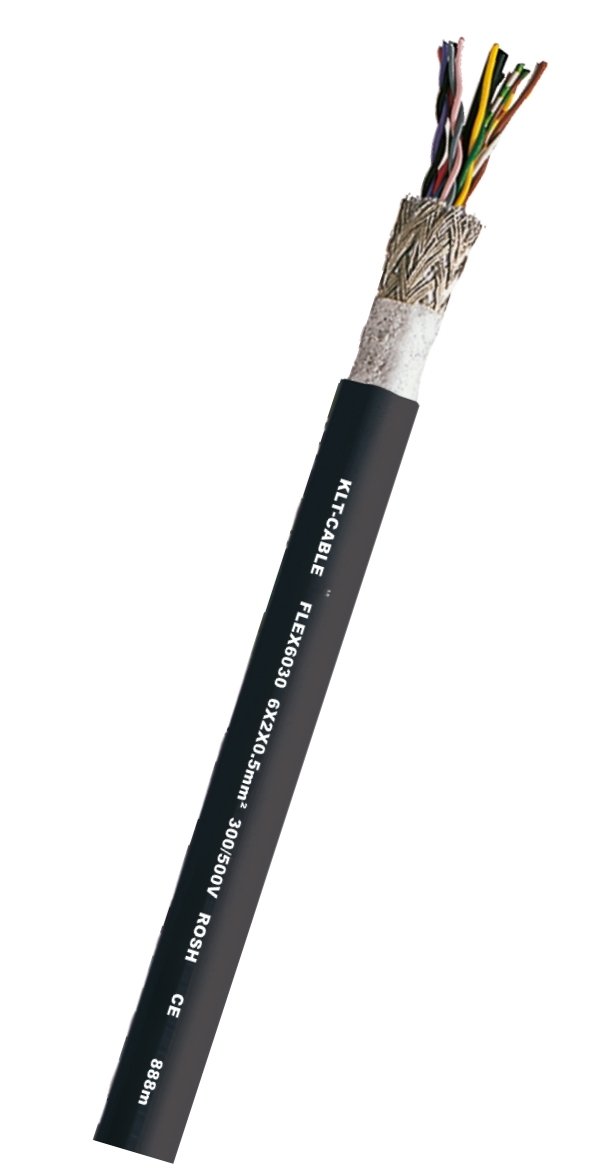

FLEX6030Medium Speed PVC Sheathed Flexible Energy Chain Special Twisted Shielded Data Cable 300V

application

It is suitable for data signal transmission and measurement cables in energy chain systems such as machine tools, conveyor belts, factory buildings, air conditioners, foundries, glass machinery, packaging machinery, woodworking machinery, logistics equipment, etc.

is a continuous flexible twisted pair PVC data cable for cable energy chains with integral copper shielding and a small bending radius. This energy chain cable is recommended for use in wood processing and packaging machinery, assembly lines, and automated plants.

EMC= electromagnetic compatibility. To optimize EMC characteristics,

We recommend: Please ensure that the shielding at both ends of the cable is fully and fully touched during installation/connection.

CE= products comply with the EU Low Voltage Directive 2014/35/EU

peculiarity

Very good flexibility
Small bending radius
EMC applications
Reinforced outer sheath

remark

It can also be customized with other hybrid cables, such as:

2G1.0+2 x 2 x 0,14 mm²

4G1.0+2 x 2 x 0,14 mm²

Product structure

conductor	Fine bare copper multi-stranded wire (according to DIN EN 60228)
insulation	PVC mixture with high mechanical properties
Core color	With a serially numbered black core wire, conforming. Complies with EN 50334 + VDE 0293-334 > 3 cores with green and yellow ground wire
shield	Bare copper braided, FLEX6050 shielded by tinned wire
Sheath material	Low viscosity, PVC-based mixture for use in energy chains
Sheath color color	Grey (RAL 7000) Other colours available on request

Technical parameters

Operating voltage	300V
Test voltage	1500V
Bending radius	Fixed laying 7xd Non-energy chain in-chain 10xd 12.5xd in the energy chain
Temperature range	Fixed laying: -15/+70 °C Continuous flexibility: -5/+90 °C Continuous flexibility: +5/+90 °C
Movement speed	Overhead 1 mls
acceleration	10 mls
Travel distance	Overhead with a distance of less than 10 meters

Cable parameters

numbering	specification	The monofilament has a large diameter	Cable diameter – ø ± 5%	Copper weight	Finished product weight
L37640214	2 x 2 x 0,14 mm²	0.11 mm	4.9 mm	19.3Kg/Km	31Kg/Km
L37640314	3 x 2 x 0,14 mm²	0.11 mm	5,4 mm	24Kg/Km	40Kg/Km
L37640414	4 x 2 x 0,14 mm²	0.11 mm	6,2 mm	28,4Kg/Km	49Kg/Km
L37640514	5 x 2 x 0,14 mm²	0.11 mm	6,7 mm	33Kg/Km	58Kg/Km
L37640714	7 x 2 x 0,14 mm²	0.11 mm	7,2 mm	40,2Kg/Km	79Kg/Km
L37641014	10 x 2 x 0,14 mm²	0.11 mm	8,7 mm	53Kg/Km	95Kg/Km
L37641214	12 x 2 x 0,14 mm²	0.11 mm	9,5 mm	61.3Kg/Km	109Kg/Km
L37641414	14 x 2 x 0,14 mm²	0.11 mm	10 mm	66,8Kg/Km	120Kg/Km
L37641814	18 x 2 x 0,14 mm²	0.11 mm	10,9 mm	96,2Kg/Km	158Kg/Km
L37642514	25 x 2 x 0,14 mm²	0.11 mm	12,7 mm	126,7Kg/Km	210Kg/Km
L37640225	2 x 2 x 0,25 mm²	0.11 mm	5,4 mm	25,5Kg/Km	40Kg/Km
L37640325	3 x 2 x 0,25 mm²	0.11 mm	6,1 mm	30,5Kg/Km	52Kg/Km
L37640425	4 x 2 x 0,25 mm²	0.11 mm	6,9 mm	389Kg/Km	64Kg/Km
L37640525	5 x 2 x 0,25 mm²	0.11 mm	7,4 mm	45.4Kg/Km	76Kg/Km
L37640725	7 x 2 x 0,25 mm²	0.11 mm	7,9 mm	573Kg/Km	96Kg/Km
L37641025	10 x 2 x 0,25 mm²	0.11 mm	9,6 mm	77Kg/Km	124Kg/Km
L37641225	12 x 2 x 0,25 mm²	0.11 mm	10,7 mm	105,3Kg/Km	155Kg/Km
L37641425	14 x 2 x 0,25 mm²	0.11 mm	11,3 mm	121,3Kg/Km	175Kg/Km
L37641825	18 x 2 x 0,25 mm²	0.11 mm	12,5 mm	141Kg/Km	220Kg/Km
L37642525	25 x 2 x 0,25 mm²	0.11 mm	14,3 mm	206Kg/Km	293Kg/Km
L37640234	2 x 2 x 0,34 mm²	0.11 mm	6,5 mm	30,8Kg/Km	53Kg/Km
L37640334	3 x 2 x 0,34 mm²	0.11 mm	7,1 mm	39,3Kg/Km	67Kg/Km
L37640434	4 x 2 x 0,34 mm²	0.11 mm	8,5 mm	49,9Kg/Km	90Kg/Km
L37640534	5 x 2 x 0,34 mm²	0.11 mm	9,2 mm	589Kg/Km	108Kg/Km
L37640734	7 x 2 x 0,34 mm²	0.11 mm	9,8 mm	748Kg/Km	136Kg/Km
L37641034	10 x 2 x 0,34 mm²	0.11 mm	116 mm	119,6Kg/Km	179Kg/Km
L37641234	12 x 2 x 0,34 mm²	0.11 mm	13,2 mm	138,1Kg/Km	218Kg/Km
L37641434	14 x 2 x 0,34 mm²	0.11 mm	14,1 mm	177,2Kg/Km	260Kg/Km
L37641834	18 x 2 x 0,34 mm²	0.11 mm	15,1 mm	215Kg/Km	319Kg/Km
L37642534	25 x 2 x 0,34 mm²	0.11 mm	17,5 mm	274Kg/Km	413Kg/Km
L37640250	2 x 2 x 0,50 mm²	0.11 mm	7,1 mm	39Kg/Km	66Kg/Km
L37640350	3 x 2 x 0,50 mm²	0.11 mm	7,8 mm	52,5Kg/Km	84Kg/Km
L37640450	4 x 2 x 0,50 mm²	0.11 mm	9,3 mm	64,7Kg/Km	112Kg/Km
L37640550	5 x 2 x 0,50 mm²	0.11 mm	10,1 mm	772Kg/Km	129Kg/Km
L37640750	7 x 2 x 0,50 mm²	0.11 mm	11 mm	121,1Kg/Km	186Kg/Km
L37641050	10 x 2 x 0,50 mm²	0.11 mm	13,3 mm	155,8Kg/Km	236Kg/Km
L37641250	12 x 2 x 0,50 mm²	0.11 mm	14,8 mm	212,4Kg/Km	301Kg/Km
L37641450	14 x 2 x 0,50 mm²	0.11 mm	15,9 mm	232,3Kg/Km	340Kg/Km
L37641850	18 x 2 x 0,50 mm²	0.11 mm	17,1 mm	283,1Kg/Km	408Kg/Km
L37642550	25 x 2 x 0,50 mm²	0.11 mm	19.4 mm	364,8Kg/Km	525Kg/Km
L37640275	2 x 2 x 0,75 mm²	0.11 mm	8 mm	52,6Kg/Km	86Kg/Km
L37640375	3 x 2 x 0,75 mm²	0.11 mm	9,2 mm	695Kg/Km	118Kg/Km
L37640475	4 x 2 x 0,75 mm²	0.11 mm	10,7 mm	105,3Kg/Km	158Kg/Km
L37640575	5 x 2 x 0,75 mm²	0.11 mm	117 mm	126,4Kg/Km	195Kg/Km
L37640775	7 x 2 x 0,75 mm²	0.11 mm	13 mm	160,5Kg/Km	256Kg/Km
L37641075	10 x 2 x 0,75 mm²	0.11 mm	15,3 mm	241,7Kg/Km	328Kg/Km
L37641275	12 x 2 x 0,75 mm²	0.11 mm	173 mm	283,4Kg/Km	403Kg/Km
L37641475	14 x 2 x 0,75 mm²	0.11 mm	18,2 mm	313,3Kg/Km	442Kg/Km
L37641875	18 x 2 x 0,75 mm²	0.11 mm	19.5 mm	384,1Kg/Km	545Kg/Km
L37642575	25 x 2 x 0,75 mm²	0.11 mm	22.2 mm	501,3Kg/Km	694Kg/Km
