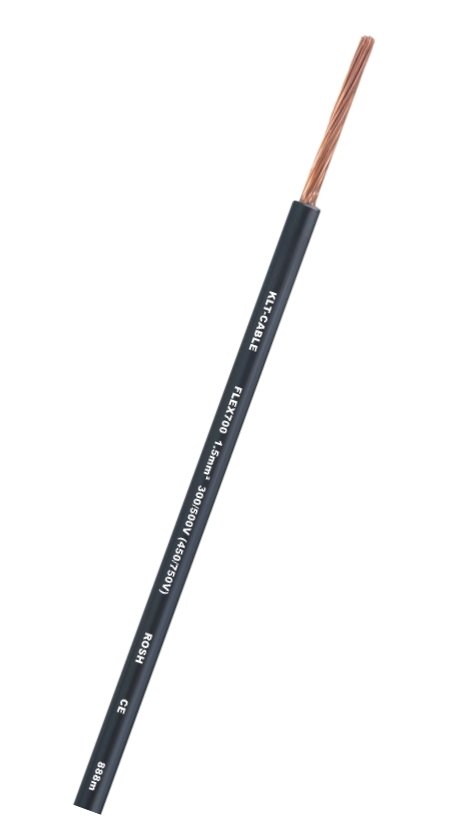

FLEX700 High-speed flexible single-core energy chain cable
High-speed flexible single-core energy chain cables are used to connect mobile devices, such as elevators, electric doors, lifting cranes, etc., instead of rubber insulation and sheathed cables, improving environmental conditions and reducing weight.
Other types of ultra-soft wires can be used to form extra-flexible cables, or they can be composed of different specifications of extra-soft wires, which can be braided and shielded.
CE= products comply with the EU Low Voltage Directive 2014/35/EU
application
High-speed flexible single-core energy chain cables are used to connect mobile devices, such as elevators, electric doors, lifting cranes, etc., instead of rubber insulation and sheathed cables, improving environmental conditions and reducing weight.
Other types of ultra-soft wires can be used to form extra-flexible cables, or they can be composed of different specifications of extra-soft wires, which can be braided and shielded.
CE= products comply with the EU Low Voltage Directive 2014/35/EU
peculiarity
- Very good flexibility
- Small bending radius
- The outer sheath can be reinforced
Product structure
| conductor | Fine bare copper multi-stranded wire (according to DIN EN 60228) |
|---|---|
| insulation | PVC mixture with high mechanical properties |
| Core color | With a serially numbered black core wire, conforming. Complies with EN 50334 + VDE 0293-334 > 3 cores with green and yellow ground wire |
| shield | Optional |
| Sheath material | If available (low-viscosity, PVC-based mixture), it is suitable for energy chains |
| Sheath color | Black (RAL 9005) Other colours available on request |
Technical parameters
| Operating voltage | Uo/U 300/500 V ； 450/750V ； 0.6/1 kV |
|---|---|
| Test voltage | Core/Core 1000V ; 1500V ; 4000 V |
| Bending radius | Fixed laying 7xd
Non-energy chain in-chain 10xd 12.5xd in the energy chain |
| Temperature range | Fixed laying: -15/+70 °C
Continuous flexibility: -5/+90 °C Continuous flexibility: +5/+90 °C |
| Movement speed | Overhead 1 mls |
| acceleration | 10 mls |
| Travel distance | Overhead with a distance of less than 10 meters |
Cable parameters
| numbering | specification | The monofilament has a large diameter | Cable diameter – ø ± 5% | Copper weight | Finished product weight |
|---|---|---|---|---|---|
| L7166 .. 82* | 1,5 mm² | 0.26mm | 3.2mm | 14,4Kg/Km | 23Kg/Km |
| L7166 .. 84* | 2,5 mm² | 0.26mm | 3.9mm | 24Kg/Km | 35Kg/Km |
| L7166 .. 86* | 4 mm² | 0.31mm | 4.5mm | 384Kg/Km | 51Kg/Km |
| T7166 .. 87* | 6 mm² | 0.31mm | 5mm | 576Kg/Km | 71Kg/Km |
| T7166 .. 88* | 10 mm² | 0.41mm | 7,3mm | 96Kg/Km | 131Kg/Km |
| T7166 .. 89* | 16 mm² | 0.41mm | 8,3mm | 153,6Kg/Km | 199Kg/Km |
| T7166 .. 90* | 25 mm² | 0.41mm | 10,2mm | 240Kg/Km | 305Kg/Km |
| T7166 .. 91* | 35 mm² | 0.41mm | 11,4mm | 336Kg/Km | 404Kg/Km |
| T7166 .. 92* | 50 mm² | 0.41mm | 14,1mm | 480Kg/Km | 576Kg/Km |
| T7166 .. 93* | 70 mm² | 0.41mm | 15,1mm | 672Kg/Km | 765Kg/Km |
| T7166 .. 94* | 95 mm² | 0.51mm | 18,5mm | 512Kg/Km | 1052Kg/Km |
| T7166 .. 95* | 120 mm² | 0.51mm | 20mm | 1152Kg/Km | 1261Kg/Km |
| T7166 .. 96* | 150 mm² | 0.51mm | 221mm | 1440Kg/Km | 1567Kg/Km |
| T7166 .. 97* | 185 mm² | 0.51mm | 23,5mm | 1776Kg/Km | 1892Kg/Km |
| T7166 .. 98* | 240 mm² | 0.51mm | 272mm | 2304Kg/Km | 2538Kg/Km |
Other sizes and colors can be on request. The above data is for reference only and is subject to the actual product.
