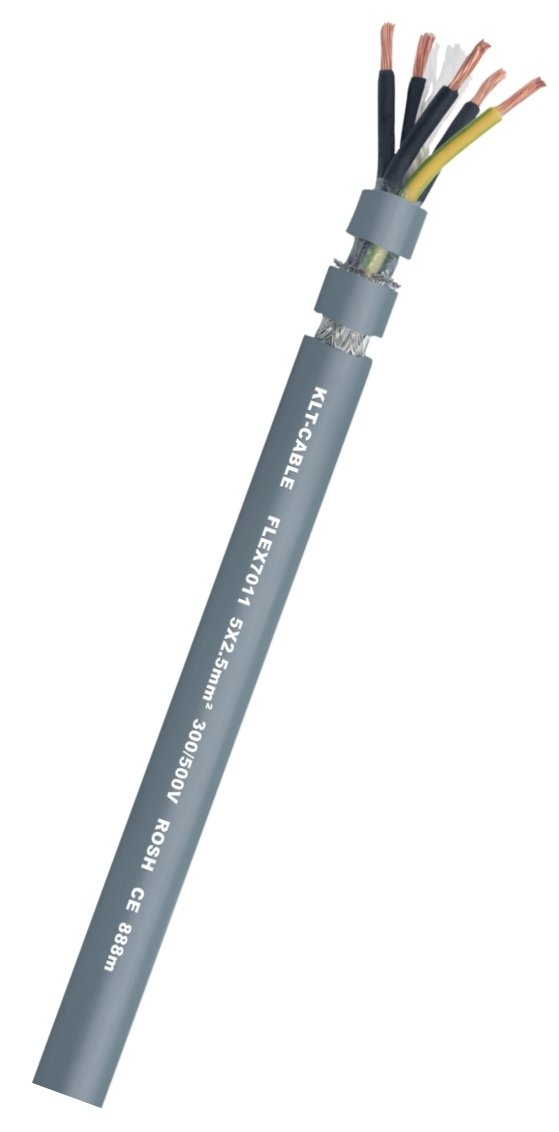

FLEX7011 High-speed flexible sheathed energy chain cable with shielding

application

Mainly used in the electrical control system, conveying and transmission system of industrial automation equipment, the overall tinned copper wire shield is especially suitable for applications that require anti-electromagnetic interference, suitable for use in mechanical places with high-intensity movement,

Designed for recycling in power chains over 10 million cycles.

We recommend: Please ensure that the shielding at both ends of the cable is fully and fully touched during installation/connection.

CE= products comply with the EU Low Voltage Directive 2014/35/EU

peculiarity

Very good flexibility
Small bending radius
EMC applications
10 million to 15 million cycles of energy chains

remark

Custom hybrid cables are also available, for example

3G1,0 + 16 x 0,34 mm²

3G1,0 + 08 x 0,34 mm²

1G0,5 + 04 x 0,34 mm²

Product structure

conductor	Fine bare copper multi-stranded wire (according to DIN EN 60228)
insulation	PVC mixture with high mechanical properties
Core color	<0.5 mm2: Colour code according to DIN 47100 ≥0.5 mm2: One is a yellow-green core, the rest are black with white numerals
shield	Copper wire weaving
Sheath material	Low viscosity, PVC-based mixture for use in energy chains
Sheath color	Grey (RAL 7000) Other colours available on request

Technical parameters

Operating voltage	<0.5 mm2: 300V ≥0.5 mm2: 300/500V
Test voltage	1500V 2500V
Bending radius	Fixed laying 7xd Non-energy chain in-chain 10xd 12.5xd in the energy chain
Temperature range	Fixed laying: -15/+70 °C Continuous flexibility: -5/+90 °C Continuous flexibility: +5/+90 °C
Movement speed	Overhead 3 m/s
acceleration	20 m/s
Travel distance	Overhead with a distance of less than 10 meters

Cable parameters

numbering	specification	The monofilament has a large diameter	Cable OD – ø ± 5%	Copper weight	Finished product weight
F37820201	2 x 0,14 mm²	0.11 mm	3.7 mm	11,6Kg/Km	20Kg/Km
F37820301	3 x 0,14 mm²	0.11 mm	3.9 mm	15,0Kg/Km	24Kg/Km
F37820401	4 x 0,14 mm²	0.11 mm	4.1 mm	15,7Kg/Km	26Kg/Km
F37820501	5 x 0,14 mm²	0.11 mm	4.4 mm	18,8Kg/Km	32Kg/Km
F37820701	7 x 0,14 mm²	0.11 mm	5.2 mm	23,4Kg/Km	42Kg/Km
F37821201	12 x 0,14 mm²	0.11 mm	6.3 mm	33,9Kg/Km	59Kg/Km
F37821801	18 x 0,14 mm²	0.11 mm	7,1 mm	45.5Kg/Km	78Kg/Km
F37822501	25 x 0,14 mm²	0.11 mm	8,8 mm	598Kg/Km	110Kg/Km
F37820202	2 x 0,25 mm²	0.11 mm	4 mm	15,1Kg/Km	24Kg/Km
F37820302	3 x 0,25 mm²	0.11 mm	4.2 mm	18,3Kg/Km	30Kg/Km
F37820402	4 x 0,25 mm²	0.11 mm	4.5 mm	21,7Kg/Km	34Kg/Km
F37820502	5 x 0,25 mm²	0.11 mm	5 mm	25,9Kg/Km	42Kg/Km
F37820702	7 x 0,25 mm²	0.11 mm	5.7 mm	32,9Kg/Km	54Kg/Km
F37821202	12 x 0,25 mm²	0.11 mm	6,9 mm	48,5Kg/Km	76Kg/Km
F37821802	18 x 0,25 mm²	0.11 mm	8,3 mm	67Kg/Km	112Kg/Km
F37822502	25 x 0,25 mm²	0.11 mm	9,7 mm	89,1Kg/Km	145Kg/Km
F37820203	2 x 0,34 mm²	0.11 mm	4.8 mm	18,7Kg/Km	33Kg/Km
F37820303	3 x 0,34 mm²	0.11 mm	5 mm	23,7Kg/Km	39Kg/Km
F37820403	4 x 0,34 mm²	0.11 mm	5,4 mm	27,1Kg/Km	46Kg/Km
F37820503	5 x 0,34 mm²	0.11 mm	5.8 mm	32,3Kg/Km	54Kg/Km
F37820703	7 x 0,34 mm²	0.11 mm	6,8 mm	42,4Kg/Km	74Kg/Km
F37821203	12 x 0,34 mm²	0.11 mm	8,5 mm	63Kg/Km	116Kg/Km
F37821803	18 x 0,34 mm²	0.11 mm	9,8 mm	879Kg/Km	151Kg/Km
F37822503	25 x 0,34 mm²	0.11 mm	117 mm	136Kg/Km	209Kg/Km
