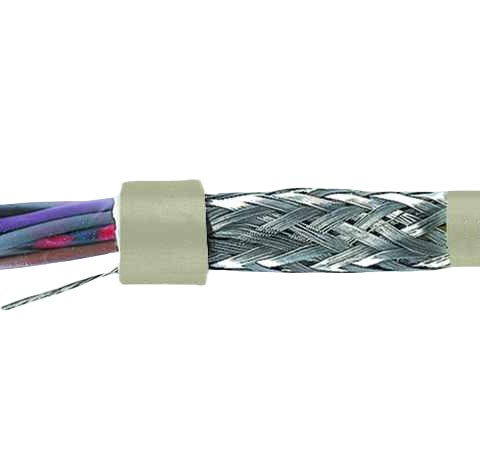

FLEX7231

Application

FLEX 7231 core wires are twisted to reduce electromagnetic interference between the core wires inside the cable. The tinned copper braided shield makes the cable highly resistant to external electromagnetic interference and ensures stable transmission of data and signals. Highly flexible cables are recommended for wood processing and packaging machinery, assembly lines and automated factories. EMC = electromagnetic compatibility. To optimize EMC characteristics,
we recommend: Please ensure that the shielding layers at both ends of the cable are fully and completely contacted during installation/connection. CE= The product complies with the provisions of the European Union Low Voltage Directive 2014/35/EU

Features

Very good flexibility
Small bending radius
Electromagnetic compatibility EMC occasions
10 million to 15 million drag chain cycle life

Remarks

Other hybrid cables can also be specified, such as

2G1.0+2 x 2 x 0,14 mm²

4G1.0+2 x 2 x 0,14 mm²

******

Construction

Conductor	Fine bare copper stranded wire (according to DIN EN 60228 standard)
Insulation	PVC mixture with high mechanical properties
Core color	Consecutively numbered black core wires comply. Conforming to EN 50334 + VDE 0293-334, > 3 cores with green and yellow ground wire
Inner sheath	PVC mixture
Shielding	Copper wire braid, FLEX7251 is a tinned wire braid shield
Sheath material	Low viscosity, PVC-based mixture, suitable for drag chains

Sheath color	Grey (RAL 7000) Other colors on request

Technical data

Operating voltage
<0.5 mm2: ="">

≥0.5 mm2: 300/500V

Test voltage
1500V 2500V

Bending radius
Fixed laying 7xd

Within non drag chain 10xd

Within drag chain 12.5xd

Temperature range
Fixed laying: -15/+70 °C

Continuous flexible: -5/+90 °C

Continuous flexible: +5/+90 °C

Moving speed
Overhead 3 m/s

Acceleration
20 m/s

Stroke distance
Overhead with distance less than 10 meters

Operating voltage	<0.5 mm2: =""> ≥0.5 mm2: 300/500V
Test voltage	1500V 2500V
Bending radius	Fixed laying 7xd Within non drag chain 10xd Within drag chain 12.5xd
Temperature range	Fixed laying: -15/+70 °C Continuous flexible: -5/+90 °C Continuous flexible: +5/+90 °C
Moving speed	Overhead 3 m/s
Acceleration	20 m/s
Stroke distance	Overhead with distance less than 10 meters

Dimensions

No. Specifications Maximum diameter of monofilament Outer diameter of cable -ø ± 5% Copper weight Finished product weight

L47640214 2 x 2 x 0,14 mm² 0.11 mm 4.9 mm 19.3Kg/Km 31Kg/Km

L47640314 3 x 2 x 0,14 mm² 0.11 mm 5,4 mm 24Kg/Km 40Kg/Km

L47640414 4 x 2 x 0,14 mm² 0.11 mm 6,2 mm 28,4Kg/Km 49Kg/Km

L47640514 5 x 2 x 0,14 mm² 0.11 mm 6,7 mm 33Kg/Km 58Kg/Km

L47640714 7 x 2 x 0,14 mm² 0.11 mm 7,2 mm 40,2Kg/Km 79Kg/Km

L47641014 10 x 2 x 0,14 mm² 0.11 mm 8,7 mm 53Kg/Km 95Kg/Km

L47641214 12 x 2 x 0,14 mm² 0.11 mm 9,5 mm 61.3Kg/Km 109Kg/Km

L47641414 14 x 2 x 0,14 mm² 0.11 mm 10 mm 66,8 thousand Kg/Km 120Kg/Km

L47641814 18 x 2 x 0,14 mm² 0.11 mm 10,9 mm 96,2Kg/Km 158Kg/Km

L47642514 25 x 2 x 0,14 mm² 0.11 mm 12,7 mm 126,7Kg/Km 210Kg/Km

L47640225 2 x 2 x 0,25 mm² 0.11 mm 5,4 mm 25,5Kg/Km 40Kg/Km

L47640325 3 x 2 x 0,25 mm² 0.11 mm 6,1 mm 30,5Kg/Km 52Kg/Km

L47640425 4 x 2 x 0,25 mm² 0.11 mm 6,9 mm 389Kg/Km 64Kg/Km

L47640525 5 x 2 x 0,25 mm² 0.11 mm 7,4 mm 45.4Kg/Km 76Kg/Km

L47640725 7 x 2 x 0,25 mm² 0.11 mm 7,9 mm 573Kg/Km 96Kg/Km

L47641025 10 x 2 x 0,25 mm² 0.11 mm 9,6 mm 77Kg/Km 124Kg/Km

L47641225 12 x 2 x 0,25 mm² 0.11 mm 10,7 mm 105,3Kg/Km 155Kg/Km

L47641425 14 x 2 x 0,25 mm² 0.11 mm 11,3 mm 121,3Kg/Km 175Kg/Km

L47641825 18 x 2 x 0,25 mm² 0.11 mm 12,5 mm 141Kg/Km 220Kg/Km

L47642525 25 x 2 x 0,25 mm² 0.11 mm 14,3 mm 206Kg/Km 293 thousand Kg/Km

L47640234 2 x 2 x 0,34 mm² 0.11 mm 6,5 mm 30,8Kg/Km 53Kg/Km

L47640334 3 x 2 x 0,34 mm² 0.11 mm 7,1 mm 39,3Kg/Km 67Kg/Km

L47640434 4 x 2 x 0,34 mm² 0.11 mm 8,5 mm 49,9Kg/Km 90Kg/Km

L47640534 5 x 2 x 0,34 mm² 0.11 mm 9,2 mm 589Kg/Km 108Kg/Km

L47640734 7 x 2 x 0,34 mm² 0.11 mm 9,8 mm 748Kg/Km 136Kg/Km

L47641034 10 x 2 x 0,34 mm² 0.11 mm 116 mm 119,6Kg/Km 179Kg/Km

L47641234 12 x 2 x 0,34 mm² 0.11 mm 13,2 mm 138,1Kg/Km 218Kg/Km

L47641434 14 x 2 x 0,34 mm² 0.11 mm 14,1 mm 177,2Kg/Km 260Kg/Km

L47641834 18 x 2 x 0,34 mm² 0.11 mm 15,1 mm 215Kg/Km 319Kg/Km

L47642534 25 x 2 x 0,34 mm² 0.11 mm 17,5 mm 274Kg/Km 413Kg/Km

L47640250 2 x 2 x 0,50 mm² 0.11 mm 7,1 mm 39Kg/Km 66Kg/Km

L47640350 3 x 2 x 0,50 mm² 0.11 mm 7,8 mm 52,5Kg/Km 84Kg/Km

L47640450 4 x 2 x 0,50 mm² 0.11 mm 9,3 mm 64,7Kg/Km 112Kg/Km

L47640550 5 x 2 x 0,50 mm² 0.11 mm 10,1 mm 772Kg/Km 129Kg/Km

L47640750 7 x 2 x 0,50 mm² 0.11 mm 11 mm 121,1Kg/Km 186Kg/Km

L47641050 10 x 2 x 0,50 mm² 0.11 mm 13,3 mm 155,8Kg/Km 236Kg/Km

L47641250 12 x 2 x 0,50 mm² 0.11 mm 14,8 mm 212,4Kg/Km 301Kg/Km

L47641450 14 x 2 x 0,50 mm² 0.11 mm 15,9 mm 232,3Kg/Km 340Kg/Km

L47641850 18 x 2 x 0,50 mm² 0.11 mm 17,1 mm 283,1Kg/Km 408Kg/Km

L47642550 25 x 2 x 0,50 mm² 0.11 mm 19.4 mm 364,8Kg/Km 525Kg/Km

L47640275 2 x 2 x 0,75 mm² 0.11 mm 8 mm 52,6Kg/Km 86Kg/Km

L47640375 3 x 2 x 0,75 mm² 0.11 mm 9,2 mm 695Kg/Km 118Kg/Km

L47640475 4 x 2 x 0,75 mm² 0.11 mm 10,7 mm 105,3Kg/Km 158Kg/Km

L47640575 5 x 2 x 0,75 mm² 0.11 mm 117 mm 126,4Kg/Km 195Kg/Km

L47640775 7 x 2 x 0,75 mm² 0.11 mm 13 mm 160,5Kg/Km 256Kg/Km

L47641075 10 x 2 x 0,75 mm² 0.11 mm 15,3 mm 241,7Kg/Km 328Kg/Km

L47641275 12 x 2 x 0,75 mm² 0.11 mm 173 mm 283,4Kg/Km 403Kg/Km

L47641475 14 x 2 x 0,75 mm² 0.11 mm 18,2 mm 313,3Kg/Km 442Kg/Km

L47641875 18 x 2 x 0,75 mm² 0.11 mm 19.5 mm 384,1Kg/Km 545Kg/Km

L47642575 25 x 2 x 0,75 mm² 0.11 mm 22.2 mm 501,3Kg/Km 694Kg/Km

Other sizes and colors are available upon request. The above data are for reference only, subject to the actual product.

No.	Specifications	Maximum diameter of monofilament	Outer diameter of cable -ø ± 5%	Copper weight	Finished product weight
L47640214	2 x 2 x 0,14 mm²	0.11 mm	4.9 mm	19.3Kg/Km	31Kg/Km
L47640314	3 x 2 x 0,14 mm²	0.11 mm	5,4 mm	24Kg/Km	40Kg/Km
L47640414	4 x 2 x 0,14 mm²	0.11 mm	6,2 mm	28,4Kg/Km	49Kg/Km
L47640514	5 x 2 x 0,14 mm²	0.11 mm	6,7 mm	33Kg/Km	58Kg/Km
L47640714	7 x 2 x 0,14 mm²	0.11 mm	7,2 mm	40,2Kg/Km	79Kg/Km
L47641014	10 x 2 x 0,14 mm²	0.11 mm	8,7 mm	53Kg/Km	95Kg/Km
L47641214	12 x 2 x 0,14 mm²	0.11 mm	9,5 mm	61.3Kg/Km	109Kg/Km
L47641414	14 x 2 x 0,14 mm²	0.11 mm	10 mm	66,8 thousand Kg/Km	120Kg/Km
L47641814	18 x 2 x 0,14 mm²	0.11 mm	10,9 mm	96,2Kg/Km	158Kg/Km
L47642514	25 x 2 x 0,14 mm²	0.11 mm	12,7 mm	126,7Kg/Km	210Kg/Km
L47640225	2 x 2 x 0,25 mm²	0.11 mm	5,4 mm	25,5Kg/Km	40Kg/Km
L47640325	3 x 2 x 0,25 mm²	0.11 mm	6,1 mm	30,5Kg/Km	52Kg/Km
L47640425	4 x 2 x 0,25 mm²	0.11 mm	6,9 mm	389Kg/Km	64Kg/Km
L47640525	5 x 2 x 0,25 mm²	0.11 mm	7,4 mm	45.4Kg/Km	76Kg/Km
L47640725	7 x 2 x 0,25 mm²	0.11 mm	7,9 mm	573Kg/Km	96Kg/Km
L47641025	10 x 2 x 0,25 mm²	0.11 mm	9,6 mm	77Kg/Km	124Kg/Km
L47641225	12 x 2 x 0,25 mm²	0.11 mm	10,7 mm	105,3Kg/Km	155Kg/Km
L47641425	14 x 2 x 0,25 mm²	0.11 mm	11,3 mm	121,3Kg/Km	175Kg/Km
L47641825	18 x 2 x 0,25 mm²	0.11 mm	12,5 mm	141Kg/Km	220Kg/Km
L47642525	25 x 2 x 0,25 mm²	0.11 mm	14,3 mm	206Kg/Km	293 thousand Kg/Km
L47640234	2 x 2 x 0,34 mm²	0.11 mm	6,5 mm	30,8Kg/Km	53Kg/Km
L47640334	3 x 2 x 0,34 mm²	0.11 mm	7,1 mm	39,3Kg/Km	67Kg/Km
L47640434	4 x 2 x 0,34 mm²	0.11 mm	8,5 mm	49,9Kg/Km	90Kg/Km
L47640534	5 x 2 x 0,34 mm²	0.11 mm	9,2 mm	589Kg/Km	108Kg/Km
L47640734	7 x 2 x 0,34 mm²	0.11 mm	9,8 mm	748Kg/Km	136Kg/Km
L47641034	10 x 2 x 0,34 mm²	0.11 mm	116 mm	119,6Kg/Km	179Kg/Km
L47641234	12 x 2 x 0,34 mm²	0.11 mm	13,2 mm	138,1Kg/Km	218Kg/Km
L47641434	14 x 2 x 0,34 mm²	0.11 mm	14,1 mm	177,2Kg/Km	260Kg/Km
L47641834	18 x 2 x 0,34 mm²	0.11 mm	15,1 mm	215Kg/Km	319Kg/Km
L47642534	25 x 2 x 0,34 mm²	0.11 mm	17,5 mm	274Kg/Km	413Kg/Km
L47640250	2 x 2 x 0,50 mm²	0.11 mm	7,1 mm	39Kg/Km	66Kg/Km
L47640350	3 x 2 x 0,50 mm²	0.11 mm	7,8 mm	52,5Kg/Km	84Kg/Km
L47640450	4 x 2 x 0,50 mm²	0.11 mm	9,3 mm	64,7Kg/Km	112Kg/Km
L47640550	5 x 2 x 0,50 mm²	0.11 mm	10,1 mm	772Kg/Km	129Kg/Km
L47640750	7 x 2 x 0,50 mm²	0.11 mm	11 mm	121,1Kg/Km	186Kg/Km
L47641050	10 x 2 x 0,50 mm²	0.11 mm	13,3 mm	155,8Kg/Km	236Kg/Km
L47641250	12 x 2 x 0,50 mm²	0.11 mm	14,8 mm	212,4Kg/Km	301Kg/Km
L47641450	14 x 2 x 0,50 mm²	0.11 mm	15,9 mm	232,3Kg/Km	340Kg/Km
L47641850	18 x 2 x 0,50 mm²	0.11 mm	17,1 mm	283,1Kg/Km	408Kg/Km
L47642550	25 x 2 x 0,50 mm²	0.11 mm	19.4 mm	364,8Kg/Km	525Kg/Km
L47640275	2 x 2 x 0,75 mm²	0.11 mm	8 mm	52,6Kg/Km	86Kg/Km
L47640375	3 x 2 x 0,75 mm²	0.11 mm	9,2 mm	695Kg/Km	118Kg/Km
L47640475	4 x 2 x 0,75 mm²	0.11 mm	10,7 mm	105,3Kg/Km	158Kg/Km
L47640575	5 x 2 x 0,75 mm²	0.11 mm	117 mm	126,4Kg/Km	195Kg/Km
L47640775	7 x 2 x 0,75 mm²	0.11 mm	13 mm	160,5Kg/Km	256Kg/Km
L47641075	10 x 2 x 0,75 mm²	0.11 mm	15,3 mm	241,7Kg/Km	328Kg/Km
L47641275	12 x 2 x 0,75 mm²	0.11 mm	173 mm	283,4Kg/Km	403Kg/Km
L47641475	14 x 2 x 0,75 mm²	0.11 mm	18,2 mm	313,3Kg/Km	442Kg/Km
L47641875	18 x 2 x 0,75 mm²	0.11 mm	19.5 mm	384,1Kg/Km	545Kg/Km
L47642575	25 x 2 x 0,75 mm²	0.11 mm	22.2 mm	501,3Kg/Km	694Kg/Km
