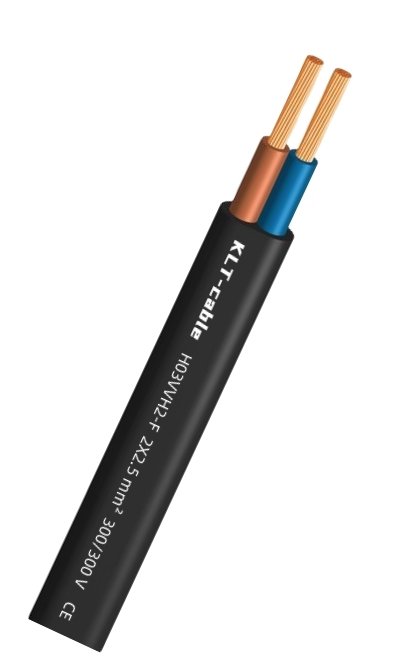

H03VVH2-F PVC Sheathed Control Cable 300/300V Flat 2 Cores

These cables are mainly suitable for use in small household appliances and light household appliances, such as connecting kitchen utensils, table lamps, floor lamps, vacuum cleaners, office equipment, radios, etc., as for the relevant scope of equipment for which these cables are applicable, they are not allowed to be used for cooking or heating equipment.
Cables with a cross-section of less than 0.75 square millimeters are not suitable for outdoor use and industrial or agricultural machinery applications. The maximum operating voltage is Uo/U 330/330 V in single-phase or three-phase systems, and Uo/U 500/500 V in DC systems.

application

These cables are mainly suitable for use in small household appliances and light household appliances, such as connecting kitchen utensils, table lamps, floor lamps, vacuum cleaners, office equipment, radios, etc., as for the relevant scope of equipment for which these cables are applicable, they are not allowed to be used for cooking or heating equipment.
Cables with a cross-section of less than 0.75 square millimeters are not suitable for outdoor use and industrial or agricultural machinery applications. The maximum operating voltage is Uo/U 330/330 V in single-phase or three-phase systems, and Uo/U 500/500 V in DC systems.
CE= products comply with the EU Low Voltage Directive 2014/35/EU

certifications and standards

  •   HD22.6 S2, VDE-0282 P-6, IEC 60332.3, IEC 60754.1, UNEL 35368, CEI 20-22 II, CEI 20-38,
  • CE Low Voltage 73/23/EEC & 93/68/EEC Directive.,
  • ROHS certified

Product structure

conductor Soft bare copper conductors in accordance with DIN VDE 0295 cl.5, BS 6360 cl.5, IEC 60228 cl.5 and HD 383
insulation PVC insulation class T12, following VDE-0281 Part I
Core color Color coding follows VDE-0293-308, yellow-green ground wire (3-core and above)
shield not
Sheath material PVC outer sheath TM2
Sheath color Gray (RAL7001), other colors can be customized according to the request.

Technical parameters

Nominal voltage Uo/U 300/300 V
Test voltage Core/Core 2000V
Bending radius Fixed laying: 4.0xD

Flexible application: 7.5xD

Temperature range Fixed laying: -40/+70 °C

Flexible application: -5/+70 °C

Temperature reachable in case of short circuit: +160º C

Flame retardant  IEC 60332.1
Insulation resistance 20 MΩ x km
environmental protection Comply with EU RoHS directive

Cable parameters

Project number specification Conductor max. diameter Outer Diameter± 5% Copper weight Cable weight
H31000205 2 x 0,50 mm² 0.21 mm 3.2 x 5.2 mm 9,6  Kg/km 37  Kg/km Send an inquiry
H31000305 3 x 0,50 mm² 0.21 mm 3.6 x 5.2 mm 14,4  Kg/km 43  Kg/km Send an inquiry
H31000405 4 x 0,50 mm² 0.21 mm 4.2 x 5.2 mm 19.2  Kg/km 51  Kg/km Send an inquiry
H31000207 2 x 0,75 mm² 0.21 mm 3.4 x 5.6 mm 14,4  Kg/km 48  Kg/km Send an inquiry
H31000307 3 x 0,75 mm² 0.21 mm 3.9 x 5.2 mm 21,6  Kg/km 56  Kg/km Send an inquiry
H31000407 4 x 0,75 mm² 0.21 mm 4.5 x 5.2 mm 28,8  Kg/km 70 Kg/km Send an inquiry
H31000507 5 x 0,75 mm² 0.21 mm 6.2 x 5.2 mm 36  Kg/km 83  Kg/km Send an inquiry

Other sizes and colors can be upon request. The above data is for reference and subject to reality.
