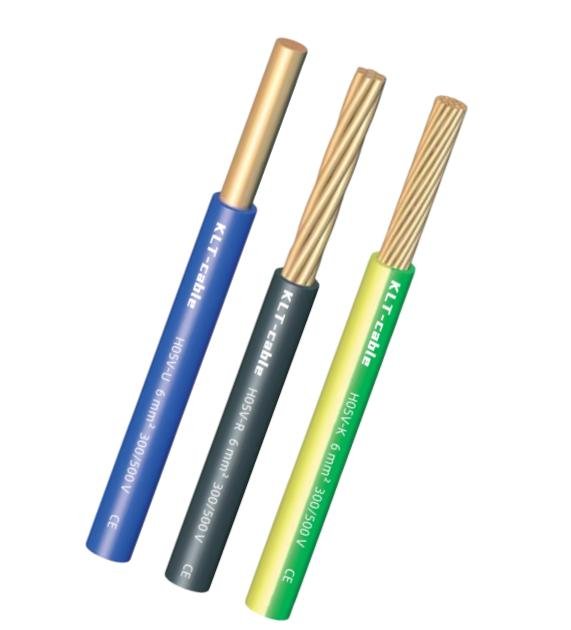

H05V-U PVC insulation Class I conductor -30 ∽+80°C 300/500V
The H05V-U is mainly installed inside equipment and is used in protected lighting and dry rooms, production facilities, switches and switchboards.
application
The H05V-U is mainly installed inside equipment and is used in protected lighting and dry rooms, production facilities, switches and switchboards.
peculiarity
- HD 21.3 S3, VDE-0281 Part 3, CEI 20-20, CEI20-52,
- CE Low Voltage 73/23/EEC and 93/68/EEC Directive, ROHS certified
ADDITIONAL INFORMATION
- Customizable colors
- Higher temperatures can be customized
Product structure
| conductor | Tinned copper/bare copper strands comply with IEC 60228, VDE 0295, Class 1 |
|---|---|
| insulation | PVC, TI1 complies with EN 50363-3 + VDE 0207-363-3 |
| Insulation color | Black, red, blue, yellow, brown, orange, etc |
Technical parameters
| Operating voltage | Uo/U 300/500 V |
|---|---|
| Test voltage | 2000 V |
| Bending radius | 12.5 x d |
| Temperature range | Fixed laying: -5/+70°C
Flexible application: -30/+80°C |
| Flame retardant | IEC 60332.1 conforms to EN50525-2-31 (EC 60227-3) |
| Insulation resistance | 10 MΩ x km |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | Meets internal standards |
| Chemical resistance | See “Technical Data” – Chemical Resistance |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Copper wire diameter -ø | Finished product diameter – ø | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L01660050 | 0,50 mm² | 0,80 mm | 2,3 mm | 4.9 kg/km | 10 kg/km | Send an inquiry |
| L01660075 | 0,75 mm² | 0,97 mm | 2,5 mm | 7,6 kg/km | 13 kg/km | Send an inquiry |
| L01661000 | 1,00 mm² | 1,13 mm | 2,7 mm | 9,2 kg/km | 15 kg/km | Send an inquiry |
Other sizes and colors are available upon request. The above data is for reference only and is subject to the actual product.
