Li9YC11Y PUR Sheathed Data Cable 300/300V with total shielding

application

Li9YC11Y is an ideal cable for cable energy chains, which can be used to connect electrodes with cable energy chain system software or intelligent robot control and data transmission system software, and is suitable for installation in dry or wet and cold rooms. Overall electroplated tin copper wire hand red braided shielding can be safely protected from internal and external high-frequency interference signals. The application place should be in the cable energy chain system software that is constantly bent and moved at will, without tensile resistance and compulsory fitness exercise.

The exquisite cable structure is matched with each other, and the non-adhesive PVC outer wire jacket promotes the cable to have excellent practical results in the specific application of cable energy chain system software.

peculiarity

Bending life: 40 times/minute, > 6 million cycles
Shallow water resistance, oil resistance, UV resistance, and weather resistance
Low temperature resistance, wear resistance, and the ability to bear the external force of heavy machinery and equipment
Smooth data signal transmission characteristics (anti-interference, anti-crosstalk)

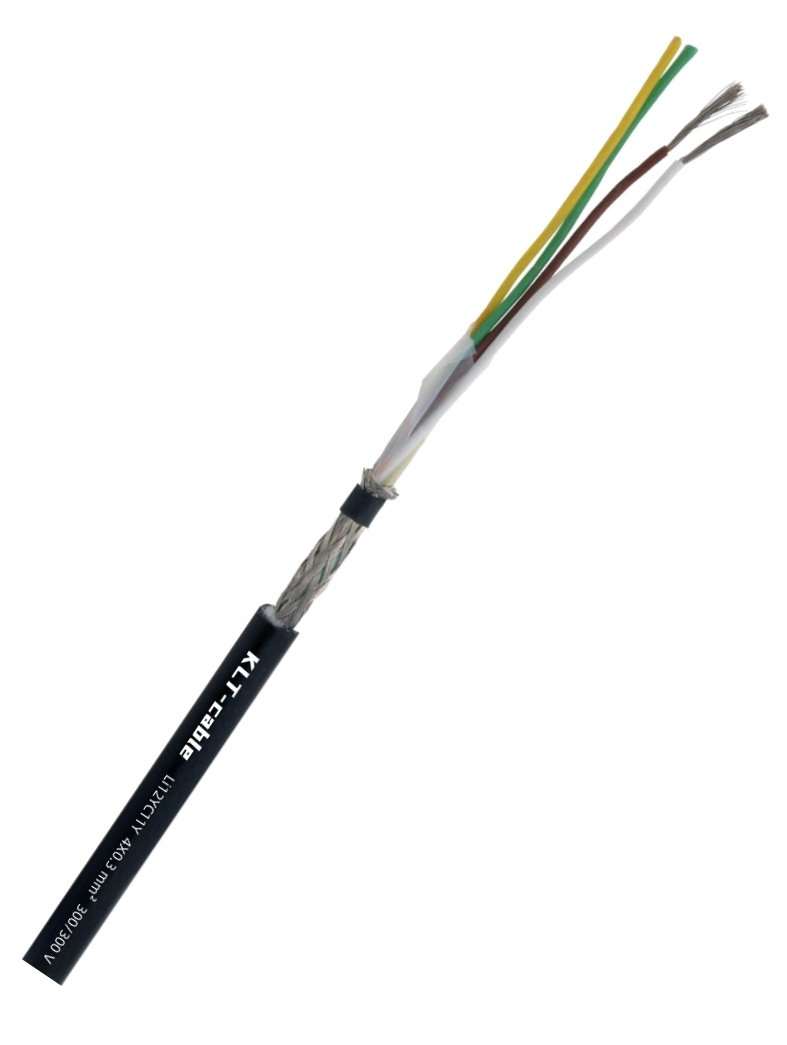

Product structure

conductor	Multi-stranded filament conductors in accordance with VDE 0295 and IEC 60288 Class 2 or 5 conductors
insulation	PP
color	The color core standard is in accordance with DIN 47100
structure	Core wire pitch twisted into a cable
Wrap the bag	Non-woven fabric wraps
shield	Tin plated wire weaving
Sheath material:	Specialty PUR (TMPU)
Sheath color	Grey (RAL 7032)

Technical parameters

Peak operating voltage	< 0,25 mm² = max. 300 V ≥ 0,25 mm² = max. 350 V
Test voltage	Core/Core 1500 V Core/shielded 1200 V
Minimum bend radius	Fixed laying: 5xd Flexible application: 10 xd
capacitance	See “Technical Data” – Capacitors
Radiation resistant	8 x 10^7 cJ/kg
Temperature range	Fixed laying: -40/+80°C Flexible application: -30 / +80°C
Fire resistance	Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	Meets internal standards
Chemical resistance	See “Technical Data” – Chemical Resistance
environmental protection	Comply with EU RoHS directive

Cable parameters

numbering	specification	Outer Diameter – ø ± 10%	Copper weight	Cable weight ≈
L05450214	2 x 2 x 0,14 mm²	5,2 mm	19,1 kg/km	34 kg/km	Send an inquiry
L05450314	3 x 2 x 0,14 mm²	5,7 mm	23,4 kg/km	41 kg/km	Send an inquiry
L05450414	4 x 2 x 0,14 mm²	6,5 mm	27,8 kg/km	53 kg/km	Send an inquiry
L05450514	5 x 2 x 0,14 mm²	7 mm	31,9 kg/km	60 kg/km	Send an inquiry
L05450614	6 x 2 x 0,14 mm²	7,2 mm	36,2 kg/km	68 kg/km	Send an inquiry
L05450814	8 x 2 x 0,14 mm²	7,8 mm	43,4 kg/km	80 kg/km	Send an inquiry
L05451014	10 x 2 x 0,14 mm²	8,9 mm	50,6 kg/km	100 kg/km	Send an inquiry
L05451214	12 x 2 x 0,14 mm²	9,7 mm	58,2 kg/km	111 kg/km	Send an inquiry
L05451614	16 x 2 x 0,14 mm²	10,5 mm	71,4 kg/km	136 kg/km	Send an inquiry
L05451814	18 x 2 x 0,14 mm²	11,1 mm	92,8 kg/km	159 kg/km	Send an inquiry
L05452014	20 x 2 x 0,14 mm²	11,1 mm	98,1 kg/km	164 kg/km	Send an inquiry
L05452414	24 x 2 x 0,14 mm²	12,8 mm	114,8 kg/km	203 kg/km	Send an inquiry
L05452514	25 x 2 x 0,14 mm²	12,8 mm	117,5 kg/km	207 kg/km	Send an inquiry
L05452814	28 x 2 x 0,14 mm²	13,1 mm	125,7 kg/km	221 kg/km	Send an inquiry
L05453014	30 x 2 x 0,14 mm²	13,8 mm	135,6 kg/km	237 kg/km	Send an inquiry
L05453614	36 x 2 x 0,14 mm²	14,6 mm	157,3 kg/km	275 kg/km	Send an inquiry
L05454014	40 x 2 x 0,14 mm²	14,9 mm	168,2 kg/km	296 kg/km	Send an inquiry
L05454414	44 x 2 x 0,14 mm²	16,3 mm	205,9 kg/km	348 kg/km	Send an inquiry
L05455214	52 x 2 x 0,14 mm²	17 mm	228,1 kg/km	388 kg/km	Send an inquiry
L05456114	61 x 2 x 0,14 mm²	18,3 mm	263,2 kg/km	443 kg/km	Send an inquiry
L05450225	2 x 2 x 0,25 mm²	5,7 mm	24,9 kg/km	42 kg/km	Send an inquiry
L05450325	3 x 2 x 0,25 mm²	6,4 mm	31,4 kg/km	55 kg/km	Send an inquiry
L05450625	6 x 2 x 0,25 mm²	7,9 mm	50,7 kg/km	85 kg/km	Send an inquiry
L05450825	8 x 2 x 0,25 mm²	9 mm	62,1 kg/km	109 kg/km	Send an inquiry
L05451025	10 x 2 x 0,25 mm²	9,8 mm	73,9 kg/km	132 kg/km	Send an inquiry
L05451225	12 x 2 x 0,25 mm²	10,9 mm	101,9 kg/km	160 kg/km	Send an inquiry
L05451625	16 x 2 x 0,25 mm²	11,9 mm	126,8 kg/km	195 kg/km	Send an inquiry
L05451825	18 x 2 x 0,25 mm²	12,7 mm	136,6 kg/km	222 kg/km	Send an inquiry
L05452425	24 x 2 x 0,25 mm²	14,2 mm	170,3 kg/km	270 kg/km	Send an inquiry
L05450234	2 x 2 x 0,34 mm²	6,8 mm	31,5 kg/km	57 kg/km	Send an inquiry
L05450334	3 x 2 x 0,34 mm²	7,4 mm	39,7 kg/km	72 kg/km	Send an inquiry
L05450434	4 x 2 x 0,34 mm²	8,8 mm	49,8 kg/km	99 kg/km	Send an inquiry
L05450534	5 x 2 x 0,34 mm²	9,5 mm	58,5 kg/km	116 kg/km	Send an inquiry
L05450634	6 x 2 x 0,34 mm²	9,7 mm	65,1 kg/km	128 kg/km	Send an inquiry
L05450834	8 x 2 x 0,34 mm²	10,6 mm	80,7 kg/km	144 kg/km	Send an inquiry
L05451234	12 x 2 x 0,34 mm²	13,4 mm	133,1 kg/km	225 kg/km	Send an inquiry
L05451634	16 x 2 x 0,34 mm²	14,6 mm	165 kg/km	280 kg/km	Send an inquiry
L05451834	18 x 2 x 0,34 mm²	15,1 mm	178,3 kg/km	306 kg/km	Send an inquiry
L05452434	24 x 2 x 0,34 mm²	17,6 mm	255,1 kg/km	415 kg/km	Send an inquiry
L05450250	2 x 2 x 0,50 mm²	7,2 mm	39,3 kg/km	66 kg/km	Send an inquiry
L05450350	3 x 2 x 0,50 mm²	7,9 mm	50,1 kg/km	84 kg/km	Send an inquiry
L05450650	6 x 2 x 0,50 mm²	10,4 mm	86 kg/km	146 kg/km	Send an inquiry
L05450850	8 x 2 x 0,50 mm²	10,9 mm	111,5 kg/km	166 kg/km	Send an inquiry
L05451050	10 x 2 x 0,50 mm²	13,2 mm	146,5 kg/km	229 kg/km	Send an inquiry
L05451250	12 x 2 x 0,50 mm²	14,4 mm	175,7 kg/km	268 kg/km	Send an inquiry
L05451650	16 x 2 x 0,50 mm²	16,3 mm	241,3 kg/km	368 kg/km	Send an inquiry
L05451850	18 x 2 x 0,50 mm²	16,9 mm	261 kg/km	399 kg/km	Send an inquiry
L05452050	20 x 2 x 0,50 mm²	16,9 mm	280,2 kg/km	418 kg/km	Send an inquiry
L05452450	24 x 2 x 0,50 mm²	19 mm	330,4 kg/km	491 kg/km	Send an inquiry
L05450275	2 x 2 x 0,75 mm²	8,5 mm	52,4 kg/km	92 kg/km	Send an inquiry
L05450375	3 x 2 x 0,75 mm²	9,4 mm	69,4 kg/km	112 kg/km	Send an inquiry
L05450675	6 x 2 x 0,75 mm²	12,5 mm	136,5 kg/km	218 kg/km	Send an inquiry
L05451275	12 x 2 x 0,75 mm²	17,1 mm	261,2 kg/km	385 kg/km	Send an inquiry
L05451675	16 x 2 x 0,75 mm²	18,6 mm	329,9 kg/km	482 kg/km	Send an inquiry
L05451875	18 x 2 x 0,75 mm²	19,3 mm	369,3 kg/km	535 kg/km	Send an inquiry
L05452475	24 x 2 x 0,75 mm²	21,8 mm	469,2 kg/km	661 kg/km	Send an inquiry
