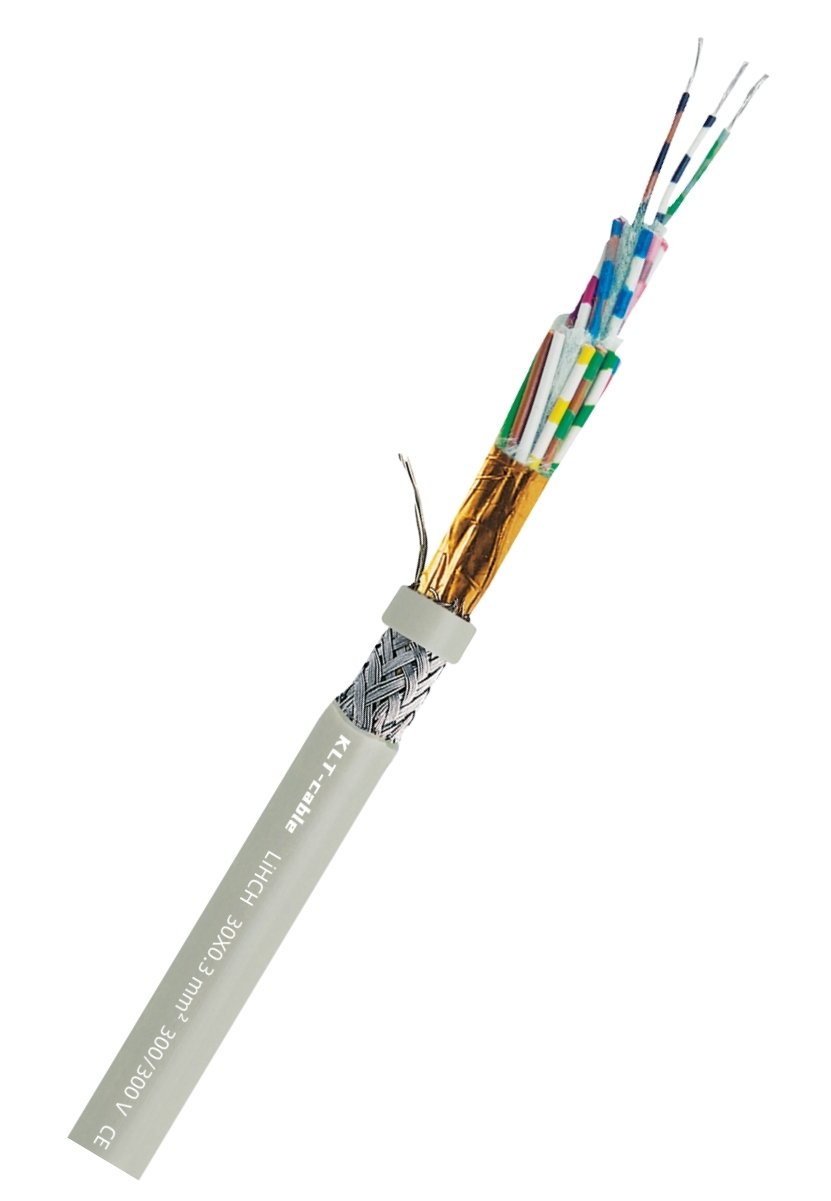

LiHCH-TP Halogen-free sheathed data cable 300/300V with total shielded core twisted
LiHCH-TP is a twisted pair data cable with improved fire resistance and full copper shielding.
In addition, it has good EMC characteristics and is flame retardant and self-extinguishing.
It is recommended for electronic data processing systems, weighing devices, and office equipment to meet higher requirements for transmission characteristics and near-end crosstalk attenuation.
Suitable for indoor installation in dry or wet areas, if used for open-air installation, UV protection is required. This data transmission cable is suitable for use in computers, CNC equipment, signal transmission systems, etc.
The design of the core stranded pair and small pitch stranding and the copper wire shield can prevent interference between the core and external wires, ensuring interference-free data transmission.
It is suitable for crowded situations, such as public buildings or transportation systems where fire prevention is required.
Can be used for fixed mounting or mobile installation without tension.
application
LiHCH-TP is a twisted pair data cable with improved fire resistance and full copper shielding.
In addition, it has good EMC characteristics and is flame retardant and self-extinguishing.
It is recommended for electronic data processing systems, weighing devices, and office equipment to meet higher requirements for transmission characteristics and near-end crosstalk attenuation.
Suitable for indoor installation in dry or wet areas, if used for open-air installation, UV protection is required. This data transmission cable is suitable for use in computers, CNC equipment, signal transmission systems, etc.
The design of the core stranded pair and small pitch stranding and the copper wire shield can prevent interference between the core and external wires, ensuring interference-free data transmission.
It is suitable for crowded situations, such as public buildings or transportation systems where fire prevention is required.
Can be used for fixed mounting or mobile installation without tension.
peculiarity
- No halogens
- shielding, good EMC characteristics
- Flame retardant and self-extinguishing
- No flame transmission
- Anti-capacitance
- Good transmission rate and crosstalk attenuation
Product structure
| conductor | Bare copper wire, refer to VDE 0812 |
|---|---|
| insulation | LSZH |
| color | Reference DIN 47100 |
| structure | In pairs, in layers |
| Wrap the bag | Firebreak |
| shield | Tinned copper braid |
| Sheath material: | LSZH |
| Sheath color | Grey (RAL 7032) |
Technical parameters
| Peak operating voltage | < 0,25 mm² = max. 350 V
> 0,25 mm² = max. 500 V |
|---|---|
| Test voltage | Core/Core 1500 V
Core/shielded 1200 V |
| Bending radius | Fixed laying: 5xd
Flexible use: 10xd |
| Temperature range | Fixed laying: -40/+85°C
Flexible use: -30 / +85°C |
| No halogens | Compliant with IEC 60754-1 + VDE 0482-754-1 |
| Flame spread | No flame spread, in accordance with IEC 60332-3-24 + VDE 0482-332-3-24 and IEC 60332-3-25 + VDE 0482-332-3-25 categories C and D |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of fire gases | Compliant with IEC 60754-2 + VDE 0482-754-2 – No corrosive gases are generated |
| Smoke density | Compliant with IEC 61034 + VDE 0482-1034 |
| flexibility | Can be moved occasionally |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|
| L63200214 | 2 x 0,14 mm² | 13 kg/km | 24 kg/km | Send an inquiry |
| L63200314 | 3 x 0,14 mm² | 14,4 kg/km | 26 kg/km | Send an inquiry |
| L63200414 | 4 x 0,14 mm² | 15,8 kg/km | 29 kg/km | Send an inquiry |
| L63200514 | 5 x 0,14 mm² | 20,6 kg/km | 35 kg/km | Send an inquiry |
| L63200614 | 6 x 0,14 mm² | 22 kg/km | 39 kg/km | Send an inquiry |
| L63200714 | 7 x 0,14 mm² | 23,4 kg/km | 40 kg/km | Send an inquiry |
| L63200814 | 8 x 0,14 mm² | 26,7 kg/km | 47 kg/km | Send an inquiry |
| L63201014 | 10 x 0,14 mm² | 29,5 kg/km | 52 kg/km | Send an inquiry |
| L63201214 | 12 x 0,14 mm² | 33,7 kg/km | 58 kg/km | Send an inquiry |
| L63201414 | 14 x 0,14 mm² | 36,5 kg/km | 63 kg/km | Send an inquiry |
| L63201614 | 16 x 0,14 mm² | 41,1 kg/km | 70 kg/km | Send an inquiry |
| L63201814 | 18 x 0,14 mm² | 43,9 kg/km | 76 kg/km | Send an inquiry |
| L63202014 | 20 x 0,14 mm² | 48,3 kg/km | 83 kg/km | Send an inquiry |
| L63202114 | 21 x 0,14 mm² | 51,9 kg/km | 88 kg/km | Send an inquiry |
| L63202414 | 24 x 0,14 mm² | 56 kg/km | 94 kg/km | Send an inquiry |
| L63202514 | 25 x 0,14 mm² | 57,4 kg/km | 105 kg/km | Send an inquiry |
| L63202714 | 27 x 0,14 mm² | 60,1 kg/km | 110 kg/km | Send an inquiry |
| L63203014 | 30 x 0,14 mm² | 66,5 kg/km | 119 kg/km | Send an inquiry |
| L63203214 | 32 x 0,14 mm² | 69,3 kg/km | 125 kg/km | Send an inquiry |
| L63203614 | 36 x 0,14 mm² | 74,7 kg/km | 135 kg/km | Send an inquiry |
| L63204014 | 40 x 0,14 mm² | 83 kg/km | 150 kg/km | Send an inquiry |
| L63204414 | 44 x 0,14 mm² | 106,8 kg/km | 171 kg/km | Send an inquiry |
| L63204814 | 48 x 0,14 mm² | 112,3 kg/km | 181 kg/km | Send an inquiry |
| L63205014 | 50 x 0,14 mm² | 121,1 kg/km | 190 kg/km | Send an inquiry |
| L63205214 | 52 x 0,14 mm² | 123,8 kg/km | 194 kg/km | Send an inquiry |
| L63205614 | 56 x 0,14 mm² | 129,4 kg/km | 205 kg/km | Send an inquiry |
| L63206114 | 61 x 0,14 mm² | 136,3 kg/km | 217 kg/km | Send an inquiry |
| L63200125 | 1 x 0,25 mm² | 9,3 kg/km | 17 kg/km | Send an inquiry |
| L63200225 | 2 x 0,25 mm² | 15,2 kg/km | 27 kg/km | Send an inquiry |
| L63200325 | 3 x 0,25 mm² | 17,6 kg/km | 31 kg/km | Send an inquiry |
| L63200425 | 4 x 0,25 mm² | 23,5 kg/km | 37 kg/km | Send an inquiry |
| L63200525 | 5 x 0,25 mm² | 26 kg/km | 42 kg/km | Send an inquiry |
| L63200625 | 6 x 0,25 mm² | 28,5 kg/km | 45 kg/km | Send an inquiry |
| L63200725 | 7 x 0,25 mm² | 30,9 kg/km | 50 kg/km | Send an inquiry |
| L63200825 | 8 x 0,25 mm² | 35,3 kg/km | 59 kg/km | Send an inquiry |
| L63200925 | 9 x 0,25 mm² | 39,3 kg/km | 65 kg/km | Send an inquiry |
| L63201025 | 10 x 0,25 mm² | 43,5 kg/km | 67 kg/km | Send an inquiry |
| L63201225 | 12 x 0,25 mm² | 48,4 kg/km | 75 kg/km | Send an inquiry |
| L63201425 | 14 x 0,25 mm² | 53,4 kg/km | 83 kg/km | Send an inquiry |
| L63201525 | 15 x 0,25 mm² | 57,4 kg/km | 90 kg/km | Send an inquiry |
| L63201625 | 16 x 0,25 mm² | 59,8 kg/km | 92 kg/km | Send an inquiry |
| L63201825 | 18 x 0,25 mm² | 66,9 kg/km | 102 kg/km | Send an inquiry |
| L63202025 | 20 x 0,25 mm² | 71,8 kg/km | 118 kg/km | Send an inquiry |
| L63202125 | 21 x 0,25 mm² | 76,6 kg/km | 125 kg/km | Send an inquiry |
| L63202425 | 24 x 0,25 mm² | 83,9 kg/km | 131 kg/km | Send an inquiry |
| L63202525 | 25 x 0,25 mm² | 89 kg/km | 140 kg/km | Send an inquiry |
| L63202725 | 27 x 0,25 mm² | 93,8 kg/km | 148 kg/km | Send an inquiry |
| L63203025 | 30 x 0,25 mm² | 101,1 kg/km | 159 kg/km | Send an inquiry |
| L63203225 | 32 x 0,25 mm² | 106 kg/km | 167 kg/km | Send an inquiry |
| L63203625 | 36 x 0,25 mm² | 134,1 kg/km | 196 kg/km | Send an inquiry |
| L63204025 | 40 x 0,25 mm² | 150,1 kg/km | 217 kg/km | Send an inquiry |
| L63204425 | 44 x 0,25 mm² | 160 kg/km | 231 kg/km | Send an inquiry |
| L63204825 | 48 x 0,25 mm² | 169,8 kg/km | 257 kg/km | Send an inquiry |
| L63205025 | 50 x 0,25 mm² | 179,5 kg/km | 267 kg/km | Send an inquiry |
| L63205225 | 52 x 0,25 mm² | 184,3 kg/km | 275 kg/km | Send an inquiry |
| L63205625 | 56 x 0,25 mm² | 194,1 kg/km | 291 kg/km | Send an inquiry |
| L63206125 | 61 x 0,25 mm² | 206,3 kg/km | 310 kg/km | Send an inquiry |
| L63200234 | 2 x 0,34 mm² | 20,4 kg/km | 34 kg/km | Send an inquiry |
| L63200334 | 3 x 0,34 mm² | 23,8 kg/km | 40 kg/km | Send an inquiry |
| L63200434 | 4 x 0,34 mm² | 27,2 kg/km | 47 kg/km | Send an inquiry |
| L63200534 | 5 x 0,34 mm² | 32,3 kg/km | 55 kg/km | Send an inquiry |
| L63200634 | 6 x 0,34 mm² | 37,3 kg/km | 64 kg/km | Send an inquiry |
| L63200734 | 7 x 0,34 mm² | 40,5 kg/km | 67 kg/km | Send an inquiry |
| L63200834 | 8 x 0,34 mm² | 47,4 kg/km | 81 kg/km | Send an inquiry |
| L63201034 | 10 x 0,34 mm² | 56,3 kg/km | 91 kg/km | Send an inquiry |
| L63201234 | 12 x 0,34 mm² | 62,9 kg/km | 101 kg/km | Send an inquiry |
| L63201434 | 14 x 0,34 mm² | 71,9 kg/km | 123 kg/km | Send an inquiry |
| L63201634 | 16 x 0,34 mm² | 78,5 kg/km | 135 kg/km | Send an inquiry |
| L63201834 | 18 x 0,34 mm² | 87,8 kg/km | 150 kg/km | Send an inquiry |
| L63202034 | 20 x 0,34 mm² | 94,5 kg/km | 162 kg/km | Send an inquiry |
| L63202134 | 21 x 0,34 mm² | 116,3 kg/km | 183 kg/km | Send an inquiry |
| L63202434 | 24 x 0,34 mm² | 132,4 kg/km | 202 kg/km | Send an inquiry |
| L63202734 | 27 x 0,34 mm² | 142,3 kg/km | 217 kg/km | Send an inquiry |
| L63203034 | 30 x 0,34 mm² | 152,4 kg/km | 234 kg/km | Send an inquiry |
| L63203234 | 32 x 0,34 mm² | 164 kg/km | 262 kg/km | Send an inquiry |
| L63203634 | 36 x 0,34 mm² | 177,3 kg/km | 286 kg/km | Send an inquiry |
| L63204034 | 40 x 0,34 mm² | 216,4 kg/km | 329 kg/km | Send an inquiry |
| L63204234 | 42 x 0,34 mm² | 223 kg/km | 339 kg/km | Send an inquiry |
| L63204434 | 44 x 0,34 mm² | 240,8 kg/km | 357 kg/km | Send an inquiry |
| L63204834 | 48 x 0,34 mm² | 254,1 kg/km | 378 kg/km | Send an inquiry |
| L63205034 | 50 x 0,34 mm² | 261 kg/km | 405 kg/km | Send an inquiry |
| L63205234 | 52 x 0,34 mm² | 267,6 kg/km | 415 kg/km | Send an inquiry |
| L63205634 | 56 x 0,34 mm² | 281 kg/km | 439 kg/km | Send an inquiry |
| L63206134 | 61 x 0,34 mm² | 308,9 kg/km | 474 kg/km | Send an inquiry |
| L63200150 | 1 x 0,50 mm² | 11,9 kg/km | 22 kg/km | Send an inquiry |
| L63200250 | 2 x 0,50 mm² | 23,6 kg/km | 40 kg/km | Send an inquiry |
| L63200350 | 3 x 0,50 mm² | 28,5 kg/km | 45 kg/km | Send an inquiry |
| L63200450 | 4 x 0,50 mm² | 35,2 kg/km | 54 kg/km | Send an inquiry |
| L63200550 | 5 x 0,50 mm² | 41,7 kg/km | 65 kg/km | Send an inquiry |
| L63200650 | 6 x 0,50 mm² | 48,4 kg/km | 75 kg/km | Send an inquiry |
| L63200750 | 7 x 0,50 mm² | 53,2 kg/km | 79 kg/km | Send an inquiry |
| L63200850 | 8 x 0,50 mm² | 62,1 kg/km | 96 kg/km | Send an inquiry |
| L63201050 | 10 x 0,50 mm² | 74,2 kg/km | 117 kg/km | Send an inquiry |
| L63201250 | 12 x 0,50 mm² | 83,8 kg/km | 130 kg/km | Send an inquiry |
| L63201450 | 14 x 0,50 mm² | 96,2 kg/km | 147 kg/km | Send an inquiry |
| L63201650 | 16 x 0,50 mm² | 106 kg/km | 163 kg/km | Send an inquiry |
| L63201850 | 18 x 0,50 mm² | 134,1 kg/km | 192 kg/km | Send an inquiry |
| L63202050 | 20 x 0,50 mm² | 150 kg/km | 212 kg/km | Send an inquiry |
| L63202150 | 21 x 0,50 mm² | 155,1 kg/km | 221 kg/km | Send an inquiry |
| L63202450 | 24 x 0,50 mm² | 174,7 kg/km | 255 kg/km | Send an inquiry |
| L63202550 | 25 x 0,50 mm² | 179,6 kg/km | 262 kg/km | Send an inquiry |
| L63202750 | 27 x 0,50 mm² | 189,2 kg/km | 275 kg/km | Send an inquiry |
| L63203050 | 30 x 0,50 mm² | 203,8 kg/km | 296 kg/km | Send an inquiry |
| L63203250 | 32 x 0,50 mm² | 239,2 kg/km | 331 kg/km | Send an inquiry |
| L63203650 | 36 x 0,50 mm² | 258,8 kg/km | 360 kg/km | Send an inquiry |
| L63204050 | 40 x 0,50 mm² | 289,8 kg/km | 415 kg/km | Send an inquiry |
| L63204250 | 42 x 0,50 mm² | 299,4 kg/km | 427 kg/km | Send an inquiry |
| L63205050 | 50 x 0,50 mm² | 350,2 kg/km | 491 kg/km | Send an inquiry |
| L63205250 | 52 x 0,50 mm² | 359,8 kg/km | 503 kg/km | Send an inquiry |
| L63206150 | 61 x 0,50 mm² | 404,3 kg/km | 568 kg/km | Send an inquiry |
| L63200175 | 1 x 0,75 mm² | 17,5 kg/km | 28 kg/km | Send an inquiry |
| L63200275 | 2 x 0,75 mm² | 30,4 kg/km | 49 kg/km | Send an inquiry |
| L63200375 | 3 x 0,75 mm² | 37,7 kg/km | 58 kg/km | Send an inquiry |
| L63200475 | 4 x 0,75 mm² | 48,3 kg/km | 71 kg/km | Send an inquiry |
| L63200575 | 5 x 0,75 mm² | 55,8 kg/km | 83 kg/km | Send an inquiry |
| L63200675 | 6 x 0,75 mm² | 66,9 kg/km | 98 kg/km | Send an inquiry |
| L63200775 | 7 x 0,75 mm² | 74,1 kg/km | 105 kg/km | Send an inquiry |
| L63200875 | 8 x 0,75 mm² | 83,9 kg/km | 132 kg/km | Send an inquiry |
| L63201075 | 10 x 0,75 mm² | 101,2 kg/km | 152 kg/km | Send an inquiry |
| L63201275 | 12 x 0,75 mm² | 134 kg/km | 184 kg/km | Send an inquiry |
| L63201475 | 14 x 0,75 mm² | 154,7 kg/km | 209 kg/km | Send an inquiry |
| L63201675 | 16 x 0,75 mm² | 169,4 kg/km | 231 kg/km | Send an inquiry |
| L63201875 | 18 x 0,75 mm² | 184,2 kg/km | 265 kg/km | Send an inquiry |
| L63202175 | 21 x 0,75 mm² | 236,7 kg/km | 322 kg/km | Send an inquiry |
| L63202475 | 24 x 0,75 mm² | 269,8 kg/km | 357 kg/km | Send an inquiry |
| L63202775 | 27 x 0,75 mm² | 291,7 kg/km | 386 kg/km | Send an inquiry |
| L63203075 | 30 x 0,75 mm² | 313,8 kg/km | 431 kg/km | Send an inquiry |
| L63203275 | 32 x 0,75 mm² | 328,8 kg/km | 454 kg/km | Send an inquiry |
| L63203675 | 36 x 0,75 mm² | 369,2 kg/km | 500 kg/km | Send an inquiry |
| L63200180 | 1 x 1,00 mm² | 19,9 kg/km | 30 kg/km | Send an inquiry |
| L63200280 | 2 x 1,00 mm² | 35,3 kg/km | 55 kg/km | Send an inquiry |
| L63200380 | 3 x 1,00 mm² | 46,5 kg/km | 66 kg/km | Send an inquiry |
| L63200480 | 4 x 1,00 mm² | 58 kg/km | 80 kg/km | Send an inquiry |
| L63200580 | 5 x 1,00 mm² | 69,4 kg/km | 96 kg/km | Send an inquiry |
| L63200680 | 6 x 1,00 mm² | 81,4 kg/km | 112 kg/km | Send an inquiry |
| L63200780 | 7 x 1,00 mm² | 91 kg/km | 121 kg/km | Send an inquiry |
| L63200185 | 1 x 1,50 mm² | 24,8 kg/km | 36 kg/km | Send an inquiry |
| L63200285 | 2 x 1,50 mm² | 48,3 kg/km | 68 kg/km | Send an inquiry |
| L63200385 | 3 x 1,50 mm² | 62,9 kg/km | 82 kg/km | Send an inquiry |
| L63200485 | 4 x 1,50 mm² | 79,1 kg/km | 101 kg/km | Send an inquiry |
| L63200585 | 5 x 1,50 mm² | 95,8 kg/km | 131 kg/km | Send an inquiry |
| L63200685 | 6 x 1,50 mm² | 112,7 kg/km | 152 kg/km | Send an inquiry |
| L63200785 | 7 x 1,50 mm² | 127,1 kg/km | 165 kg/km | Send an inquiry |
| L63210625 | 6 x 2 x 0,25 mm² | 47,4 kg/km | 84 kg/km | Send an inquiry |
| L63210825 | 8 x 2 x 0,25 mm² | 59,1 kg/km | 108 kg/km | Send an inquiry |
| L63211025 | 10 x 2 x 0,25 mm² | 73,1 kg/km | 132 kg/km | Send an inquiry |
| L63210234 | 2 x 2 x 0,34 mm² | 28,4 kg/km | 51 kg/km | Send an inquiry |
| L63210434 | 4 x 2 x 0,34 mm² | 46,7 kg/km | 89 kg/km | Send an inquiry |
| L63210834 | 8 x 2 x 0,34 mm² | 93,5 kg/km | 155 kg/km | Send an inquiry |
| L63210250 | 2 x 2 x 0,50 mm² | 36,2 kg/km | 65 kg/km | Send an inquiry |
| L63210350 | 3 x 2 x 0,50 mm² | 47,4 kg/km | 84 kg/km | Send an inquiry |
| L63210450 | 4 x 2 x 0,50 mm² | 61,1 kg/km | 105 kg/km | Send an inquiry |
| L63210550 | 5 x 2 x 0,50 mm² | 73,2 kg/km | 131 kg/km | Send an inquiry |
| L63210275 | 2 x 2 x 0,75 mm² | 49,3 kg/km | 85 kg/km | Send an inquiry |
| L63210475 | 4 x 2 x 0,75 mm² | 98,9 kg/km | 159 kg/km | Send an inquiry |
| L63210875 | 8 x 2 x 0,75 mm² | 167,1 kg/km | 254 kg/km | Send an inquiry |
| L63211075 | 10 x 2 x 0,75 mm² | 228,2 kg/km | 326 kg/km | Send an inquiry |
| L63210885 | 8 x 2 x 1,50 mm² | 315,4 kg/km | 401 kg/km | Send an inquiry |
Other sizes and colors are available upon request.The above data is for reference only and is subject to the actual product.
Related products
Recently viewed products
You have no recently viewed item.
