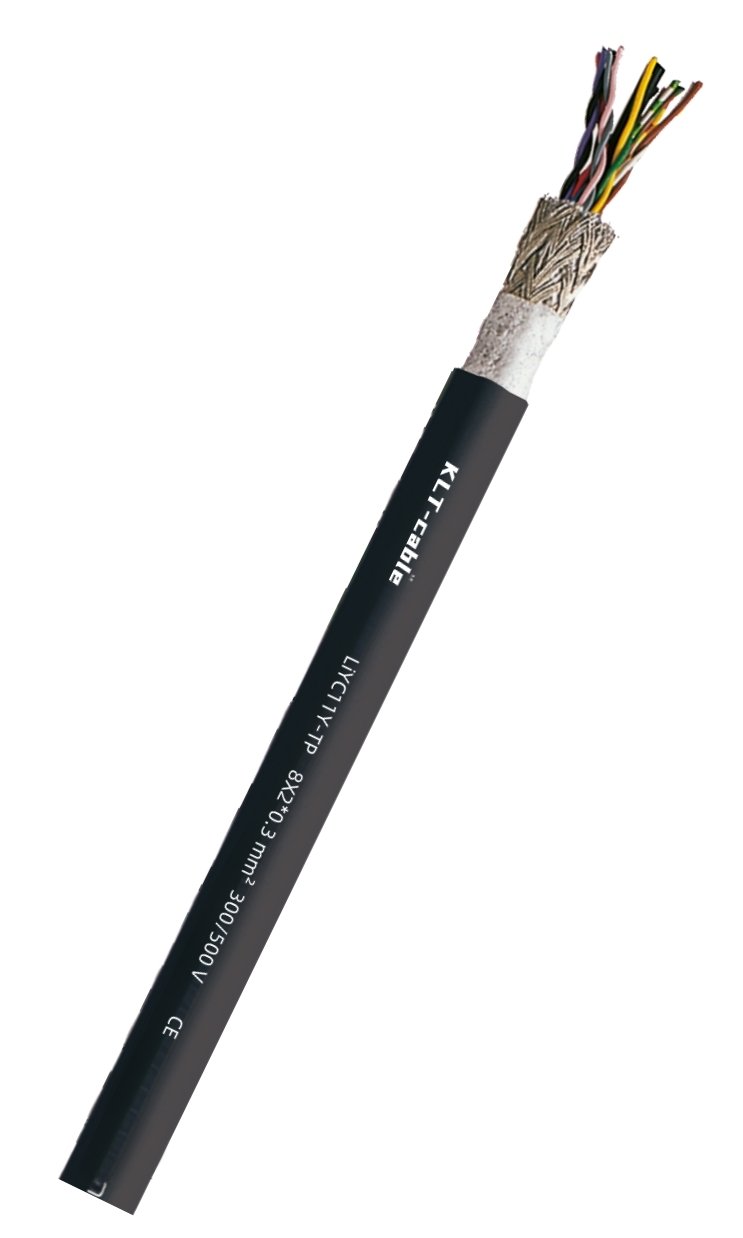

LiYC11Y-TP PUR sheathed data cable 300/300V, small outer diameter with total shielding core twisted
Li2YCY TP cable is a twisted pair shielded PVC data cable with a small outer diameter. The cable is suitable for measurement, control and voice signals such as low-voltage power distribution equipment, scales and electrical engineering, communication technology, control and measurement technology as well as office and computers.
application
LiYC11Y-TP data cable is widely used in dry or humid indoor energy chain systems where reciprocating free bending moves without forced tension. Such as machine tool processing equipment, logistics conveying system, equipment installation engineering, robot equipment, CNC machine tools, laser CNC, robotic arms, woodworking machinery, ceramic machinery, steel large robotic arms, medical equipment, rapid mobile equipment, etc.
LiYC11Y TP generally refers to data transmission wires used for smaller sections.
peculiarity
- Good anti-interference performance, twisted (TP) structure can decouple the circuit (crosstalk effect),
- It is suitable for wiring installation in the energy chain, and the design and materials of ultra-fine conductors and special structures enhance its wear resistance and bending resistance.
- Tensile reinforcement fibers greatly improve the service life and tensile resistance of the product
- High flexibility, wear resistance, bending resistance, oil resistance, waterproof, flame retardant and other characteristics
Product structure
| conductor | Multi-stranded filament conductors in accordance with VDE 0295 and IEC 60288 Class 2 or 5 conductors |
|---|---|
| insulation | Polyvinyl chloride, according to EN 50363-3 + VDE 0207-363-3 |
| color | Black core wire, white numerals continuously marked, yellow-green ground protection (3 cores and more than 3 cores included) |
| structure | Core wire pitch twisted into a cable |
| Wrap the bag | Non-woven fabric wraps |
| shield | Tin plated wire weaving |
| Sheath material: | Specialty PUR (TMPU) |
| Sheath color | Grey (RAL 7032) |
Technical parameters
| Peak operating voltage | < 0,25 mm² = max. 300 V
≥ 0,25 mm² = max. 350 V |
|---|---|
| Test voltage | Core/Core 1500 V
Core/shielded 1200 V |
| Minimum bend radius | Fixed laying: 5xd
Flexible application: 10 xd |
| capacitance | See “Technical Data” – Capacitors |
| Radiation resistant | 8 x 10^7 cJ/kg |
| Temperature range | Fixed laying: -40/+80°C
Flexible application: -30 / +80°C |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | Meets internal standards |
| Chemical resistance | See “Technical Data” – Chemical Resistance |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Outer Diameter – ø ± 10% | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| L04450214 | 2 x 2 x 0,14 mm² | 5,2 mm | 19,1 kg/km | 34 kg/km | Send an inquiry |
| L04450314 | 3 x 2 x 0,14 mm² | 5,7 mm | 23,4 kg/km | 41 kg/km | Send an inquiry |
| L04450414 | 4 x 2 x 0,14 mm² | 6,5 mm | 27,8 kg/km | 53 kg/km | Send an inquiry |
| L04450514 | 5 x 2 x 0,14 mm² | 7 mm | 31,9 kg/km | 60 kg/km | Send an inquiry |
| L04450614 | 6 x 2 x 0,14 mm² | 7,2 mm | 36,2 kg/km | 68 kg/km | Send an inquiry |
| L04450814 | 8 x 2 x 0,14 mm² | 7,8 mm | 43,4 kg/km | 80 kg/km | Send an inquiry |
| L04451014 | 10 x 2 x 0,14 mm² | 8,9 mm | 50,6 kg/km | 100 kg/km | Send an inquiry |
| L04451214 | 12 x 2 x 0,14 mm² | 9,7 mm | 58,2 kg/km | 111 kg/km | Send an inquiry |
| L04451614 | 16 x 2 x 0,14 mm² | 10,5 mm | 71,4 kg/km | 136 kg/km | Send an inquiry |
| L04451814 | 18 x 2 x 0,14 mm² | 11,1 mm | 92,8 kg/km | 159 kg/km | Send an inquiry |
| L04452014 | 20 x 2 x 0,14 mm² | 11,1 mm | 98,1 kg/km | 164 kg/km | Send an inquiry |
| L04452414 | 24 x 2 x 0,14 mm² | 12,8 mm | 114,8 kg/km | 203 kg/km | Send an inquiry |
| L04452514 | 25 x 2 x 0,14 mm² | 12,8 mm | 117,5 kg/km | 207 kg/km | Send an inquiry |
| L04452814 | 28 x 2 x 0,14 mm² | 13,1 mm | 125,7 kg/km | 221 kg/km | Send an inquiry |
| L04453014 | 30 x 2 x 0,14 mm² | 13,8 mm | 135,6 kg/km | 237 kg/km | Send an inquiry |
| L04453614 | 36 x 2 x 0,14 mm² | 14,6 mm | 157,3 kg/km | 275 kg/km | Send an inquiry |
| L04454014 | 40 x 2 x 0,14 mm² | 14,9 mm | 168,2 kg/km | 296 kg/km | Send an inquiry |
| L04454414 | 44 x 2 x 0,14 mm² | 16,3 mm | 205,9 kg/km | 348 kg/km | Send an inquiry |
| L04455214 | 52 x 2 x 0,14 mm² | 17 mm | 228,1 kg/km | 388 kg/km | Send an inquiry |
| L04456114 | 61 x 2 x 0,14 mm² | 18,3 mm | 263,2 kg/km | 443 kg/km | Send an inquiry |
| L04450225 | 2 x 2 x 0,25 mm² | 5,7 mm | 24,9 kg/km | 42 kg/km | Send an inquiry |
| L04450325 | 3 x 2 x 0,25 mm² | 6,4 mm | 31,4 kg/km | 55 kg/km | Send an inquiry |
| L04450625 | 6 x 2 x 0,25 mm² | 7,9 mm | 50,7 kg/km | 85 kg/km | Send an inquiry |
| L04450825 | 8 x 2 x 0,25 mm² | 9 mm | 62,1 kg/km | 109 kg/km | Send an inquiry |
| L04451025 | 10 x 2 x 0,25 mm² | 9,8 mm | 73,9 kg/km | 132 kg/km | Send an inquiry |
| L04451225 | 12 x 2 x 0,25 mm² | 10,9 mm | 101,9 kg/km | 160 kg/km | Send an inquiry |
| L04451625 | 16 x 2 x 0,25 mm² | 11,9 mm | 126,8 kg/km | 195 kg/km | Send an inquiry |
| L04451825 | 18 x 2 x 0,25 mm² | 12,7 mm | 136,6 kg/km | 222 kg/km | Send an inquiry |
| L04452425 | 24 x 2 x 0,25 mm² | 14,2 mm | 170,3 kg/km | 270 kg/km | Send an inquiry |
| L04450234 | 2 x 2 x 0,34 mm² | 6,8 mm | 31,5 kg/km | 57 kg/km | Send an inquiry |
| L04450334 | 3 x 2 x 0,34 mm² | 7,4 mm | 39,7 kg/km | 72 kg/km | Send an inquiry |
| L04450434 | 4 x 2 x 0,34 mm² | 8,8 mm | 49,8 kg/km | 99 kg/km | Send an inquiry |
| L04450534 | 5 x 2 x 0,34 mm² | 9,5 mm | 58,5 kg/km | 116 kg/km | Send an inquiry |
| L04450634 | 6 x 2 x 0,34 mm² | 9,7 mm | 65,1 kg/km | 128 kg/km | Send an inquiry |
| L04450834 | 8 x 2 x 0,34 mm² | 10,6 mm | 80,7 kg/km | 144 kg/km | Send an inquiry |
| L04451234 | 12 x 2 x 0,34 mm² | 13,4 mm | 133,1 kg/km | 225 kg/km | Send an inquiry |
| L04451634 | 16 x 2 x 0,34 mm² | 14,6 mm | 165 kg/km | 280 kg/km | Send an inquiry |
| L04451834 | 18 x 2 x 0,34 mm² | 15,1 mm | 178,3 kg/km | 306 kg/km | Send an inquiry |
| L04452434 | 24 x 2 x 0,34 mm² | 17,6 mm | 255,1 kg/km | 415 kg/km | Send an inquiry |
| L04450250 | 2 x 2 x 0,50 mm² | 7,2 mm | 39,3 kg/km | 66 kg/km | Send an inquiry |
| L04450350 | 3 x 2 x 0,50 mm² | 7,9 mm | 50,1 kg/km | 84 kg/km | Send an inquiry |
| L04450650 | 6 x 2 x 0,50 mm² | 10,4 mm | 86 kg/km | 146 kg/km | Send an inquiry |
| L04450850 | 8 x 2 x 0,50 mm² | 10,9 mm | 111,5 kg/km | 166 kg/km | Send an inquiry |
| L04451050 | 10 x 2 x 0,50 mm² | 13,2 mm | 146,5 kg/km | 229 kg/km | Send an inquiry |
| L04451250 | 12 x 2 x 0,50 mm² | 14,4 mm | 175,7 kg/km | 268 kg/km | Send an inquiry |
| L04451650 | 16 x 2 x 0,50 mm² | 16,3 mm | 241,3 kg/km | 368 kg/km | Send an inquiry |
| L04451850 | 18 x 2 x 0,50 mm² | 16,9 mm | 261 kg/km | 399 kg/km | Send an inquiry |
| L04452050 | 20 x 2 x 0,50 mm² | 16,9 mm | 280,2 kg/km | 418 kg/km | Send an inquiry |
| L04452450 | 24 x 2 x 0,50 mm² | 19 mm | 330,4 kg/km | 491 kg/km | Send an inquiry |
| L04450275 | 2 x 2 x 0,75 mm² | 8,5 mm | 52,4 kg/km | 92 kg/km | Send an inquiry |
| L04450375 | 3 x 2 x 0,75 mm² | 9,4 mm | 69,4 kg/km | 112 kg/km | Send an inquiry |
| L04450675 | 6 x 2 x 0,75 mm² | 12,5 mm | 136,5 kg/km | 218 kg/km | Send an inquiry |
| L04451275 | 12 x 2 x 0,75 mm² | 17,1 mm | 261,2 kg/km | 385 kg/km | Send an inquiry |
| L04451675 | 16 x 2 x 0,75 mm² | 18,6 mm | 329,9 kg/km | 482 kg/km | Send an inquiry |
| L04451875 | 18 x 2 x 0,75 mm² | 19,3 mm | 369,3 kg/km | 535 kg/km | Send an inquiry |
| L04452475 | 24 x 2 x 0,75 mm² | 21,8 mm | 469,2 kg/km | 661 kg/km | Send an inquiry |
Other sizes and colors are available upon request. The above data is for reference only and is subject to the actual product.
