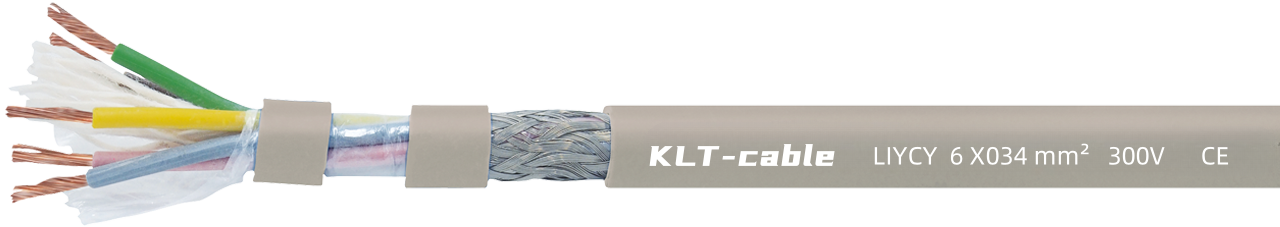

LIYCY
PVC data cable with overall shielding
Application
LiYCY cables have good EMC properties. This shielded data cable, color coded in accordance with DIN 47100, can be used in the construction of scales, appliances and control panels, in the construction of low-voltage switchboard equipment, in communication technology and in the construction, testing and control technology of electrically installed appliances.
Features
- Shielding, good EMV characteristics
- Flexible
- Small outer diameter
- Small bending radius
Construction
| Conductor |
Bare copper wire, reference VDE 0812 |
|---|---|
| Insulation |
Polyvinyl chloride,Conforming to EN 50363-3 + VDE 0207-363-3 |
| Color |
ReferenceDIN 47100 |
| Structure |
Layering |
| Wrapping |
PETP foil |
| Shielding |
Tinned copper braid |
| Sheath material |
Polyvinyl chloride, TM2Conforming to EN 50363-4-1 + VDE 0207-363-4-1 |
| Sheath color |
Gray (RAL 7032) |
Technical data
| Peak operating voltage |
< 0,25="" mm²="max." 350=""> ≥ 0,25 mm² = max. 500 V |
|---|---|
| Test voltage |
Core/core 1500 V Core/shield 1200 V |
| Minimum bending radius |
Fixed installation: 5xd Flexible application: 10 xd |
| Capacitor |
See “Technical data” –Capacitor |
| Radiation resistance |
8 x 10^7 cJ/kg |
| Temperature range |
Fixed installation: -30/+70°C Flexible application: -5 / +70°C |
| Fire resistance |
Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance |
Complies with internal standards |
| Chemical resistance |
See “Technical data” –Chemical resistance |
| Environmental protection |
CompliantEURoHS Directive |
Dimensions
| No. | Specifications | Outer diameter – ø ± 0,5% | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| L03150214 | 2 x 0,14 mm² | 3,6 mm | 12,6 kg/km | 18 kg/km | |
| L03150314 | 3 x 0,14 mm² | 3,8 mm | 14,1 kg/km | 21 kg/km | |
| L03150414 | 4 x 0,14 mm² | 4,0 mm | 15,9 kg/km | 24 kg/km | |
| L03151825 | 18 x 0,25 mm² | 80 kg/km | 102 kg/km | ||
| L03150734 | 7 x 0,34 mm² | 42 kg/km | 65 kg/km | ||
| L03152025 | 20 x 0,25 mm² | 96 kg/km | 117 kg/km | ||
| L03150634 | 6 x 0,34 mm² | 37 kg/km | 64 kg/km | ||
| L03150514 | 5 x 0,14 mm² | 4,3 mm | 19,5 kg/km | 29 kg/km | |
| L03150534 | 5 x 0,34 mm² | 30 kg/km | 52 kg/km | ||
| L03150614 | 6 x 0,14 mm² | 4,6 mm | 22 kg/km | 33 kg/km | |
| L03152125 | 21 x 0,25 mm² | 105 kg/km | 125 kg/km | ||
| L03150434 | 4 x 0,34 mm² | 25 kg/km | 43 kg/km | ||
| L03152425 | 24 x 0,25 mm² | 115 kg/km | 133 kg/km | ||
| L03150714 | 7 x 0,14 mm² | 24 kg/km | 33 kg/km | ||
| L03150334 | 3 x 0,34 mm² | 21 kg/km | 35 kg/km | ||
| L03150814 | 8 x 0,14 mm² | 26 kg/km | 44 kg/km | ||
| L03152525 | 25 x 0,25 mm² | 117 kg/km | 139 kg/km | ||
| L03151014 | 10 x 0,14 mm² | 29 kg/km | 47 kg/km | ||
| L03152725 | 27 x 0,25 mm² | 120 kg/km | 145 kg/km | ||
| L03150234 | 2 x 0,34 mm² | 17 kg/km | 29 kg/km | ||
| L03153025 | 30 x 0,25 mm² | 132 kg/km | 157 kg/km | ||
| L03156125 | 61 x 0,25 mm² | 287 kg/km | 306 kg/km | ||
| L03151214 | 12 x 0,14 mm² | 32 kg/km | 55 kg/km | ||
| L03151414 | 14 x 0,14 mm² | 35 kg/km | 61 kg/km | ||
| L03155625 | 56 x 0,25 mm² | 259 kg/km | 288 kg/km | ||
| L03153225 | 32 x 0,25 mm² | 138 kg/km | 166 kg/km | ||
| L03153625 | 36 x 0,25 mm² | 152 kg/km | 195 kg/km | ||
| L03155225 | 52 x 0,25 mm² | 234 kg/km | 269 kg/km | ||
| L03151614 | 16 x 0,14 mm² | 49 kg/km | 69 kg/km | ||
| L03154025 | 40 x 0,25 mm² | 164 kg/km | 217 kg/km | ||
| L03155025 | 50 x 0,25 mm² | 222 kg/km | 262 kg/km | ||
| L03151814 | 18 x 0,14 mm² | 54 kg/km | 75 kg/km | ||
| L03154825 | 48 x 0,25 mm² | 209 kg/km | 254 kg/km | ||
| L03152014 | 20 x 0,14 mm² | 58 kg/km | 82 kg/km | ||
| L03154425 | 44 x 0,25 mm² | 180 kg/km | 229 kg/km | ||
| L03152114 | 21 x 0,14 mm² | 60 kg/km | 87 kg/km | ||
| L03152414 | 24 x 0,14 mm² | 74 kg/km | 92 kg/km | ||
| L03152514 | 25 x 0,14 mm² | 78 kg/km | 102 kg/km | ||
| L03152714 | 27 x 0,14 mm² | 85 kg/km | 106 kg/km | ||
| L03153014 | 30 x 0,14 mm² | 98 kg/km | 116 kg/km | ||
| L03153214 | 32 x 0,14 mm² | 108 kg/km | 122 kg/km | ||
| L03153614 | 36 x 0,14 mm² | 117 kg/km | 133 kg/km | ||
| L03154014 | 40 x 0,14 mm² | 126 kg/km | 148 kg/km | ||
| L03154414 | 44 x 0,14 mm² | 138 kg/km | 168 kg/km | ||
| L03154814 | 48 x 0,14 mm² | 145 kg/km | 177 kg/km | ||
| L03155014 | 50 x 0,14 mm² | 150 kg/km | 183 kg/km | ||
| L03155214 | 52 x 0,14 mm² | 155 kg/km | 187 kg/km | ||
| L03151625 | 16 x 0,25 mm² | 71 kg/km | 91 kg/km | ||
| L03155614 | 56 x 0,14 mm² | 166 kg/km | 202 kg/km | ||
| L03151525 | 15 x 0,25 mm² | 68 kg/km | 90 kg/km | ||
| L03156114 | 61 x 0,14 mm² | 176 kg/km | 213 kg/km | ||
| L03151425 | 14 x 0,25 mm² | 64 kg/km | 81 kg/km | ||
| L03150125 | 1 x 0,25 mm² | 8 kg/km | 13 kg/km | ||
| L03151225 | 12 x 0,25 mm² | 50 kg/km | 73 kg/km | ||
| L03151025 | 10 x 0,25 mm² | 42 kg/km | 65 kg/km | ||
| L03150225 | 2 x 0,25 mm² | 15 kg/km | 23 kg/km | ||
| L03150325 | 3 x 0,25 mm² | 18 kg/km | 26 kg/km | ||
| L03150925 | 9 x 0,25 mm² | 39 kg/km | 67 kg/km | ||
| L03150425 | 4 x 0,25 mm² | 22 kg/km | 31 kg/km | ||
| L03150825 | 8 x 0,25 mm² | 35 kg/km | 59 kg/km | ||
| L03150725 | 7 x 0,25 mm² | 32 kg/km | 46 kg/km | ||
| L03150525 | 5 x 0,25 mm² | 25 kg/km | 38 kg/km | ||
| L03150625 | 6 x 0,25 mm² | 30 kg/km | 45 kg/km | ||
| L03150834 | 8 x 0,34 mm² | 45 kg/km | 81 kg/km | ||
| L03151034 | 10 x 0,34 mm² | 63 kg/km | 89 kg/km | ||
| L03151234 | 12 x 0,34 mm² | 70 kg/km | 100 kg/km | ||
| L03151434 | 14 x 0,34 mm² | 78 kg/km | 121 kg/km | ||
| L03151634 | 16 x 0,34 mm² | 87 kg/km | 134 kg/km | ||
| L03151834 | 18 x 0,34 mm² | 108 kg/km | 150 kg/km | ||
| L03152034 | 20 x 0,34 mm² | 124 kg/km | 163 kg/km | ||
| L03152134 | 21 x 0,34 mm² | 127 kg/km | 185 kg/km | ||
| L03152434 | 24 x 0,34 mm² | 140 kg/km | 200 kg/km | ||
| L03152734 | 27 x 0,34 mm² | 151 kg/km | 216 kg/km | ||
| L03153034 | 30 x 0,34 mm² | 162 kg/km | 233 kg/km | ||
| L03153234 | 32 x 0,34 mm² | 171 kg/km | 257 kg/km | ||
| L03153634 | 36 x 0,34 mm² | 188 kg/km | 285 kg/km | ||
| L03154034 | 40 x 0,34 mm² | 208 kg/km | 316 kg/km | ||
| L03154234 | 42 x 0,34 mm² | 215 kg/km | 326 kg/km | ||
| L03154434 | 44 x 0,34 mm² | 223 kg/km | 334 kg/km | ||
| L03154834 | 48 x 0,34 mm² | 243 kg/km | 355 kg/km | ||
| L03155034 | 50 x 0,34 mm² | 248 kg/km | 402 kg/km | ||
| L03155234 | 52 x 0,34 mm² | 273 kg/km | 412 kg/km | ||
| L03155634 | 56 x 0,34 mm² | 292 kg/km | 437 kg/km | ||
| L03156134 | 61 x 0,34 mm² | 316 kg/km | 464 kg/km | ||
| L03150150 | 1 x 0,50 mm² | 13,3 kg/km | 19 kg/km | ||
| L03150250 | 2 x 0,50 mm² | 23,5 kg/km | 36 kg/km | ||
| L03150350 | 3 x 0,50 mm² | 28,4 kg/km | 42 kg/km | ||
| L03150450 | 4 x 0,50 mm² | 35,1 kg/km | 51 kg/km | ||
| L03150550 | 5 x 0,50 mm² | 41,6 kg/km | 64 kg/km | ||
| L03150650 | 6 x 0,50 mm² | 48,3 kg/km | 75 kg/km | ||
| L03150750 | 7 x 0,50 mm² | 53,1 kg/km | 78 kg/km | ||
| L03150850 | 8 x 0,50 mm² | 62 kg/km | 99 kg/km | ||
| L03151050 | 10 x 0,50 mm² | 74,5 kg/km | 115 kg/km | ||
| L03151250 | 12 x 0,50 mm² | 84,2 kg/km | 128 kg/km | ||
| L03151450 | 14 x 0,50 mm² | 93,5 kg/km | 143 kg/km | ||
| L03151650 | 16 x 0,50 mm² | 105,9 kg/km | 162 kg/km | ||
| L03151850 | 18 x 0,50 mm² | 133,9 kg/km | 191 kg/km | ||
| L03152050 | 20 x 0,50 mm² | 143,8 kg/km | 208 kg/km | ||
| L03152150 | 21 x 0,50 mm² | 154,9 kg/km | 224 kg/km | ||
| L03152450 | 24 x 0,50 mm² | 169,7 kg/km | 248 kg/km | ||
| L03152550 | 25 x 0,50 mm² | 174,6 kg/km | 256 kg/km | ||
| L03152750 | 27 x 0,50 mm² | 184,2 kg/km | 269 kg/km | ||
| L03153050 | 30 x 0,50 mm² | 203,6 kg/km | 293 kg/km | ||
| L03153250 | 32 x 0,50 mm² | 213,5 kg/km | 311 kg/km | ||
| L03153650 | 36 x 0,50 mm² | 239 kg/km | 344 kg/km | ||
| L03154050 | 40 x 0,50 mm² | 289,4 kg/km | 416 kg/km | ||
| L03154250 | 42 x 0,50 mm² | 299 kg/km | 429 kg/km | ||
| L03155050 | 50 x 0,50 mm² | 349,7 kg/km | 487 kg/km | ||
| L03155250 | 52 x 0,50 mm² | 359,3 kg/km | 500 kg/km | ||
| L03156150 | 61 x 0,50 mm² | 403,7 kg/km | 565 kg/km | ||
| L03150175 | 1 x 0,75 mm² | 15,7 kg/km | 22 kg/km | ||
| L03150275 | 2 x 0,75 mm² | 30,3 kg/km | 45 kg/km | ||
| L03150375 | 3 x 0,75 mm² | 37,6 kg/km | 56 kg/km | ||
| L03150475 | 4 x 0,75 mm² | 46,5 kg/km | 68 kg/km | ||
| L03150575 | 5 x 0,75 mm² | 55,7 kg/km | 83 kg/km | ||
| L03150675 | 6 x 0,75 mm² | 66,8 kg/km | 99 kg/km | ||
| L03150775 | 7 x 0,75 mm² | 74 kg/km | 103 kg/km | ||
| L03150875 | 8 x 0,75 mm² | 83,8 kg/km | 136 kg/km | ||
| L03151075 | 10 x 0,75 mm² | 101,1 kg/km | 150 kg/km | ||
| L03151275 | 12 x 0,75 mm² | 133,9 kg/km | 183 kg/km | ||
| L03151475 | 14 x 0,75 mm² | 148,5 kg/km | 203 kg/km | ||
| L03151675 | 16 x 0,75 mm² | 169,2 kg/km | 231 kg/km | ||
| L03151875 | 18 x 0,75 mm² | 184 kg/km | 264 kg/km | ||
| L03152175 | 21 x 0,75 mm² | 211 kg/km | 307 kg/km | ||
| L03152475 | 24 x 0,75 mm² | 239,1 kg/km | 333 kg/km | ||
| L03152775 | 27 x 0,75 mm² | 260,9 kg/km | 363 kg/km | ||
| L03153075 | 30 x 0,75 mm² | 313,4 kg/km | 428 kg/km | ||
| L03153275 | 32 x 0,75 mm² | 328,3 kg/km | 453 kg/km | ||
| L03153675 | 36 x 0,75 mm² | 357,8 kg/km | 496 kg/km | ||
| L03150180 | 1 x 1,00 mm² | 18,2 kg/km | 25 kg/km | ||
| L03150280 | 2 x 1,00 mm² | 35,2 kg/km | 50 kg/km | ||
| L03150380 | 3 x 1,00 mm² | 46,4 kg/km | 64 kg/km | ||
| L03150480 | 4 x 1,00 mm² | 57,9 kg/km | 79 kg/km | ||
| L03150580 | 5 x 1,00 mm² | 69,6 kg/km | 96 kg/km | ||
| L03150680 | 6 x 1,00 mm² | 81,3 kg/km | 113 kg/km | ||
| L03150780 | 7 x 1,00 mm² | 90,9 kg/km | 120 kg/km | ||
| L03150185 | 1 x 1,50 mm² | 24,7 kg/km | 31 kg/km | ||
| L03150285 | 2 x 1,50 mm² | 46,5 kg/km | 68 kg/km | ||
| L03150385 | 3 x 1,50 mm² | 62,7 kg/km | 79 kg/km | ||
| L03150485 | 4 x 1,50 mm² | 79,2 kg/km | 98 kg/km | ||
| L03150585 | 5 x 1,50 mm² | 95,8 kg/km | 131 kg/km | ||
| L03150685 | 6 x 1,50 mm² | 112,7 kg/km | 155 kg/km | ||
| L03150785 | 7 x 1,50 mm² | 127,1 kg/km | 164 kg/km |
Other sizes and colors are available upon request. The above data are for reference only, and the actual product shall prevail.
