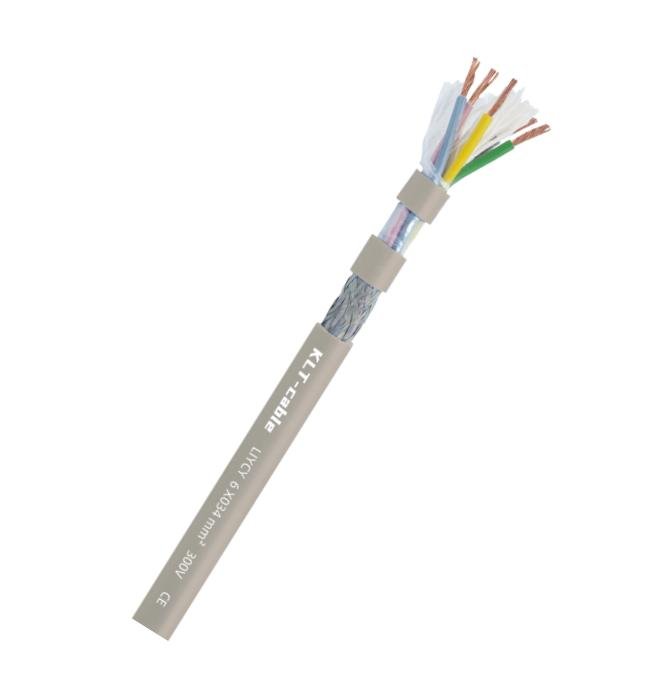

LIYCY PVC Sheathed Data Cable 300/300V with total shielding
LiYCY cables have good EMC characteristics. This shielded data cable is color-coded in accordance with DIN 47100 and can be used in the construction of scales, appliances and control panels, in the construction of low-voltage distribution board equipment, communication technology, as well as in the construction, testing and control technology of electrically installed appliances.
application
LiYCY cables have good EMC characteristics. This shielded data cable is color-coded in accordance with DIN 47100 and can be used in the construction of scales, appliances and control panels, in the construction of low-voltage distribution board equipment, communication technology, as well as in the construction, testing and control technology of electrically installed appliances.
peculiarity
- shielding, good EMV characteristics
- Flexible
- The outer diameter is small
- Small bending radius
Product structure
| conductor | Bare copper wire, refer to VDE 0812 |
|---|---|
| insulation | Polyvinyl chloride, according to EN 50363-3 + VDE 0207-363-3 |
| color | Reference DIN 47100 |
| structure | delamination |
| Wrap the bag | PETP foil |
| shield | Tinned copper braid |
| Sheath material: | Polyvinyl chloride, TM2 in accordance with EN 50363-4-1 + VDE 0207-363-4-1 |
| Sheath color | Grey (RAL 7032) |
Technical parameters
| Peak operating voltage | < 0,25 mm² = max. 350 V
≥ 0,25 mm² = max. 500 V |
|---|---|
| Test voltage | Core/Core 1500 V
Core/shielded 1200 V |
| Minimum bend radius | Fixed laying: 5xd
Flexible application: 10 xd |
| capacitance | See “Technical Data” – Capacitors |
| Radiation resistant | 8 x 10^7 cJ/kg |
| Temperature range | Fixed laying: -30/+70°C
Flexible application: -5 / +70°C |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | Meets internal standards |
| Chemical resistance | See “Technical Data” – Chemical Resistance |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Outer diameter – ø ± 0,5% | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| L03150214 | 2 x 0,14 mm² | 3,6 mm | 12,6 kg/km | 18 kg/km | Send an inquiry |
| L03150314 | 3 x 0,14 mm² | 3,8 mm | 14,1 kg/km | 21 kg/km | Send an inquiry |
| L03150414 | 4 x 0,14 mm² | 4,0 mm | 15,9 kg/km | 24 kg/km | Send an inquiry |
| L03151825 | 18 x 0,25 mm² | 80 kg/km | 102 kg/km | Send an inquiry | |
| L03150734 | 7 x 0,34 mm² | 42 kg/km | 65 kg/km | Send an inquiry | |
| L03152025 | 20 x 0,25 mm² | 96 kg/km | 117 kg/km | Send an inquiry | |
| L03150634 | 6 x 0,34 mm² | 37 kg/km | 64 kg/km | Send an inquiry | |
| L03150514 | 5 x 0,14 mm² | 4,3 mm | 19,5 kg/km | 29 kg/km | Send an inquiry |
| L03150534 | 5 x 0,34 mm² | 30 kg/km | 52 kg/km | Send an inquiry | |
| L03150614 | 6 x 0,14 mm² | 4,6 mm | 22 kg/km | 33 kg/km | Send an inquiry |
| L03152125 | 21 x 0,25 mm² | 105 kg/km | 125 kg/km | Send an inquiry | |
| L03150434 | 4 x 0,34 mm² | 25 kg/km | 43 kg/km | Send an inquiry | |
| L03152425 | 24 x 0,25 mm² | 115 kg/km | 133 kg/km | Send an inquiry | |
| L03150714 | 7 x 0,14 mm² | 24 kg/km | 33 kg/km | Send an inquiry | |
| L03150334 | 3 x 0,34 mm² | 21 kg/km | 35 kg/km | Send an inquiry | |
| L03150814 | 8 x 0,14 mm² | 26 kg/km | 44 kg/km | Send an inquiry | |
| L03152525 | 25 x 0,25 mm² | 117 kg/km | 139 kg/km | Send an inquiry | |
| L03151014 | 10 x 0,14 mm² | 29 kg/km | 47 kg/km | Send an inquiry | |
| L03152725 | 27 x 0,25 mm² | 120 kg/km | 145 kg/km | Send an inquiry | |
| L03150234 | 2 x 0,34 mm² | 17 kg/km | 29 kg/km | Send an inquiry | |
| L03153025 | 30 x 0,25 mm² | 132 kg/km | 157 kg/km | Send an inquiry | |
| L03156125 | 61 x 0,25 mm² | 287 kg/km | 306 kg/km | Send an inquiry | |
| L03151214 | 12 x 0,14 mm² | 32 kg/km | 55 kg/km | Send an inquiry | |
| L03151414 | 14 x 0,14 mm² | 35 kg/km | 61 kg/km | Send an inquiry | |
| L03155625 | 56 x 0,25 mm² | 259 kg/km | 288 kg/km | Send an inquiry | |
| L03153225 | 32 x 0,25 mm² | 138 kg/km | 166 kg/km | Send an inquiry | |
| L03153625 | 36 x 0,25 mm² | 152 kg/km | 195 kg/km | Send an inquiry | |
| L03155225 | 52 x 0,25 mm² | 234 kg/km | 269 kg/km | Send an inquiry | |
| L03151614 | 16 x 0,14 mm² | 49 kg/km | 69 kg/km | Send an inquiry | |
| L03154025 | 40 x 0,25 mm² | 164 kg/km | 217 kg/km | Send an inquiry | |
| L03155025 | 50 x 0,25 mm² | 222 kg/km | 262 kg/km | Send an inquiry | |
| L03151814 | 18 x 0,14 mm² | 54 kg/km | 75 kg/km | Send an inquiry | |
| L03154825 | 48 x 0,25 mm² | 209 kg/km | 254 kg/km | Send an inquiry | |
| L03152014 | 20 x 0,14 mm² | 58 kg/km | 82 kg/km | Send an inquiry | |
| L03154425 | 44 x 0,25 mm² | 180 kg/km | 229 kg/km | Send an inquiry | |
| L03152114 | 21 x 0,14 mm² | 60 kg/km | 87 kg/km | Send an inquiry | |
| L03152414 | 24 x 0,14 mm² | 74 kg/km | 92 kg/km | Send an inquiry | |
| L03152514 | 25 x 0,14 mm² | 78 kg/km | 102 kg/km | Send an inquiry | |
| L03152714 | 27 x 0,14 mm² | 85 kg/km | 106 kg/km | Send an inquiry | |
| L03153014 | 30 x 0,14 mm² | 98 kg/km | 116 kg/km | Send an inquiry | |
| L03153214 | 32 x 0,14 mm² | 108 kg/km | 122 kg/km | Send an inquiry | |
| L03153614 | 36 x 0,14 mm² | 117 kg/km | 133 kg/km | Send an inquiry | |
| L03154014 | 40 x 0,14 mm² | 126 kg/km | 148 kg/km | Send an inquiry | |
| L03154414 | 44 x 0,14 mm² | 138 kg/km | 168 kg/km | Send an inquiry | |
| L03154814 | 48 x 0,14 mm² | 145 kg/km | 177 kg/km | Send an inquiry | |
| L03155014 | 50 x 0,14 mm² | 150 kg/km | 183 kg/km | Send an inquiry | |
| L03155214 | 52 x 0,14 mm² | 155 kg/km | 187 kg/km | Send an inquiry | |
| L03151625 | 16 x 0,25 mm² | 71 kg/km | 91 kg/km | Send an inquiry | |
| L03155614 | 56 x 0,14 mm² | 166 kg/km | 202 kg/km | Send an inquiry | |
| L03151525 | 15 x 0,25 mm² | 68 kg/km | 90 kg/km | Send an inquiry | |
| L03156114 | 61 x 0,14 mm² | 176 kg/km | 213 kg/km | Send an inquiry | |
| L03151425 | 14 x 0,25 mm² | 64 kg/km | 81 kg/km | Send an inquiry | |
| L03150125 | 1 x 0,25 mm² | 8 kg/km | 13 kg/km | Send an inquiry | |
| L03151225 | 12 x 0,25 mm² | 50 kg/km | 73 kg/km | Send an inquiry | |
| L03151025 | 10 x 0,25 mm² | 42 kg/km | 65 kg/km | Send an inquiry | |
| L03150225 | 2 x 0,25 mm² | 15 kg/km | 23 kg/km | Send an inquiry | |
| L03150325 | 3 x 0,25 mm² | 18 kg/km | 26 kg/km | Send an inquiry | |
| L03150925 | 9 x 0,25 mm² | 39 kg/km | 67 kg/km | Send an inquiry | |
| L03150425 | 4 x 0,25 mm² | 22 kg/km | 31 kg/km | Send an inquiry | |
| L03150825 | 8 x 0,25 mm² | 35 kg/km | 59 kg/km | Send an inquiry | |
| L03150725 | 7 x 0,25 mm² | 32 kg/km | 46 kg/km | Send an inquiry | |
| L03150525 | 5 x 0,25 mm² | 25 kg/km | 38 kg/km | Send an inquiry | |
| L03150625 | 6 x 0,25 mm² | 30 kg/km | 45 kg/km | Send an inquiry | |
| L03150834 | 8 x 0,34 mm² | 45 kg/km | 81 kg/km | Send an inquiry | |
| L03151034 | 10 x 0,34 mm² | 63 kg/km | 89 kg/km | Send an inquiry | |
| L03151234 | 12 x 0,34 mm² | 70 kg/km | 100 kg/km | Send an inquiry | |
| L03151434 | 14 x 0,34 mm² | 78 kg/km | 121 kg/km | Send an inquiry | |
| L03151634 | 16 x 0,34 mm² | 87 kg/km | 134 kg/km | Send an inquiry | |
| L03151834 | 18 x 0,34 mm² | 108 kg/km | 150 kg/km | Send an inquiry | |
| L03152034 | 20 x 0,34 mm² | 124 kg/km | 163 kg/km | Send an inquiry | |
| L03152134 | 21 x 0,34 mm² | 127 kg/km | 185 kg/km | Send an inquiry | |
| L03152434 | 24 x 0,34 mm² | 140 kg/km | 200 kg/km | Send an inquiry | |
| L03152734 | 27 x 0,34 mm² | 151 kg/km | 216 kg/km | Send an inquiry | |
| L03153034 | 30 x 0,34 mm² | 162 kg/km | 233 kg/km | Send an inquiry | |
| L03153234 | 32 x 0,34 mm² | 171 kg/km | 257 kg/km | Send an inquiry | |
| L03153634 | 36 x 0,34 mm² | 188 kg/km | 285 kg/km | Send an inquiry | |
| L03154034 | 40 x 0,34 mm² | 208 kg/km | 316 kg/km | Send an inquiry | |
| L03154234 | 42 x 0,34 mm² | 215 kg/km | 326 kg/km | Send an inquiry | |
| L03154434 | 44 x 0,34 mm² | 223 kg/km | 334 kg/km | Send an inquiry | |
| L03154834 | 48 x 0,34 mm² | 243 kg/km | 355 kg/km | Send an inquiry | |
| L03155034 | 50 x 0,34 mm² | 248 kg/km | 402 kg/km | Send an inquiry | |
| L03155234 | 52 x 0,34 mm² | 273 kg/km | 412 kg/km | Send an inquiry | |
| L03155634 | 56 x 0,34 mm² | 292 kg/km | 437 kg/km | Send an inquiry | |
| L03156134 | 61 x 0,34 mm² | 316 kg/km | 464 kg/km | Send an inquiry | |
| L03150150 | 1 x 0,50 mm² | 13,3 kg/km | 19 kg/km | Send an inquiry | |
| L03150250 | 2 x 0,50 mm² | 23,5 kg/km | 36 kg/km | Send an inquiry | |
| L03150350 | 3 x 0,50 mm² | 28,4 kg/km | 42 kg/km | Send an inquiry | |
| L03150450 | 4 x 0,50 mm² | 35,1 kg/km | 51 kg/km | Send an inquiry | |
| L03150550 | 5 x 0,50 mm² | 41,6 kg/km | 64 kg/km | Send an inquiry | |
| L03150650 | 6 x 0,50 mm² | 48,3 kg/km | 75 kg/km | Send an inquiry | |
| L03150750 | 7 x 0,50 mm² | 53,1 kg/km | 78 kg/km | Send an inquiry | |
| L03150850 | 8 x 0,50 mm² | 62 kg/km | 99 kg/km | Send an inquiry | |
| L03151050 | 10 x 0,50 mm² | 74,5 kg/km | 115 kg/km | Send an inquiry | |
| L03151250 | 12 x 0,50 mm² | 84,2 kg/km | 128 kg/km | Send an inquiry | |
| L03151450 | 14 x 0,50 mm² | 93,5 kg/km | 143 kg/km | Send an inquiry | |
| L03151650 | 16 x 0,50 mm² | 105,9 kg/km | 162 kg/km | Send an inquiry | |
| L03151850 | 18 x 0,50 mm² | 133,9 kg/km | 191 kg/km | Send an inquiry | |
| L03152050 | 20 x 0,50 mm² | 143,8 kg/km | 208 kg/km | Send an inquiry | |
| L03152150 | 21 x 0,50 mm² | 154,9 kg/km | 224 kg/km | Send an inquiry | |
| L03152450 | 24 x 0,50 mm² | 169,7 kg/km | 248 kg/km | Send an inquiry | |
| L03152550 | 25 x 0,50 mm² | 174,6 kg/km | 256 kg/km | Send an inquiry | |
| L03152750 | 27 x 0,50 mm² | 184,2 kg/km | 269 kg/km | Send an inquiry | |
| L03153050 | 30 x 0,50 mm² | 203,6 kg/km | 293 kg/km | Send an inquiry | |
| L03153250 | 32 x 0,50 mm² | 213,5 kg/km | 311 kg/km | Send an inquiry | |
| L03153650 | 36 x 0,50 mm² | 239 kg/km | 344 kg/km | Send an inquiry | |
| L03154050 | 40 x 0,50 mm² | 289,4 kg/km | 416 kg/km | Send an inquiry | |
| L03154250 | 42 x 0,50 mm² | 299 kg/km | 429 kg/km | Send an inquiry | |
| L03155050 | 50 x 0,50 mm² | 349,7 kg/km | 487 kg/km | Send an inquiry | |
| L03155250 | 52 x 0,50 mm² | 359,3 kg/km | 500 kg/km | Send an inquiry | |
| L03156150 | 61 x 0,50 mm² | 403,7 kg/km | 565 kg/km | Send an inquiry | |
| L03150175 | 1 x 0,75 mm² | 15,7 kg/km | 22 kg/km | Send an inquiry | |
| L03150275 | 2 x 0,75 mm² | 30,3 kg/km | 45 kg/km | Send an inquiry | |
| L03150375 | 3 x 0,75 mm² | 37,6 kg/km | 56 kg/km | Send an inquiry | |
| L03150475 | 4 x 0,75 mm² | 46,5 kg/km | 68 kg/km | Send an inquiry | |
| L03150575 | 5 x 0,75 mm² | 55,7 kg/km | 83 kg/km | Send an inquiry | |
| L03150675 | 6 x 0,75 mm² | 66,8 kg/km | 99 kg/km | Send an inquiry | |
| L03150775 | 7 x 0,75 mm² | 74 kg/km | 103 kg/km | Send an inquiry | |
| L03150875 | 8 x 0,75 mm² | 83,8 kg/km | 136 kg/km | Send an inquiry | |
| L03151075 | 10 x 0,75 mm² | 101,1 kg/km | 150 kg/km | Send an inquiry | |
| L03151275 | 12 x 0,75 mm² | 133,9 kg/km | 183 kg/km | Send an inquiry | |
| L03151475 | 14 x 0,75 mm² | 148,5 kg/km | 203 kg/km | Send an inquiry | |
| L03151675 | 16 x 0,75 mm² | 169,2 kg/km | 231 kg/km | Send an inquiry | |
| L03151875 | 18 x 0,75 mm² | 184 kg/km | 264 kg/km | Send an inquiry | |
| L03152175 | 21 x 0,75 mm² | 211 kg/km | 307 kg/km | Send an inquiry | |
| L03152475 | 24 x 0,75 mm² | 239,1 kg/km | 333 kg/km | Send an inquiry | |
| L03152775 | 27 x 0,75 mm² | 260,9 kg/km | 363 kg/km | Send an inquiry | |
| L03153075 | 30 x 0,75 mm² | 313,4 kg/km | 428 kg/km | Send an inquiry | |
| L03153275 | 32 x 0,75 mm² | 328,3 kg/km | 453 kg/km | Send an inquiry | |
| L03153675 | 36 x 0,75 mm² | 357,8 kg/km | 496 kg/km | Send an inquiry | |
| L03150180 | 1 x 1,00 mm² | 18,2 kg/km | 25 kg/km | Send an inquiry | |
| L03150280 | 2 x 1,00 mm² | 35,2 kg/km | 50 kg/km | Send an inquiry | |
| L03150380 | 3 x 1,00 mm² | 46,4 kg/km | 64 kg/km | Send an inquiry | |
| L03150480 | 4 x 1,00 mm² | 57,9 kg/km | 79 kg/km | Send an inquiry | |
| L03150580 | 5 x 1,00 mm² | 69,6 kg/km | 96 kg/km | Send an inquiry | |
| L03150680 | 6 x 1,00 mm² | 81,3 kg/km | 113 kg/km | Send an inquiry | |
| L03150780 | 7 x 1,00 mm² | 90,9 kg/km | 120 kg/km | Send an inquiry | |
| L03150185 | 1 x 1,50 mm² | 24,7 kg/km | 31 kg/km | Send an inquiry | |
| L03150285 | 2 x 1,50 mm² | 46,5 kg/km | 68 kg/km | Send an inquiry | |
| L03150385 | 3 x 1,50 mm² | 62,7 kg/km | 79 kg/km | Send an inquiry | |
| L03150485 | 4 x 1,50 mm² | 79,2 kg/km | 98 kg/km | Send an inquiry | |
| L03150585 | 5 x 1,50 mm² | 95,8 kg/km | 131 kg/km | Send an inquiry | |
| L03150685 | 6 x 1,50 mm² | 112,7 kg/km | 155 kg/km | Send an inquiry | |
| L03150785 | 7 x 1,50 mm² | 127,1 kg/km | 164 kg/km | Send an inquiry |
Other sizes and colors are available upon request. The above data is for reference only and is subject to the actual product.
Other sizes and colors are available upon request. The above data is for reference only and is subject to the actual product.
Related products
Recently viewed products
You have no recently viewed item.
