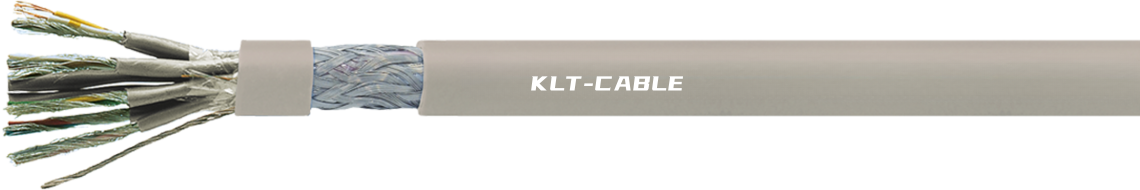

LiYDY-CY TP
PVC data cable, core wires twisted, each component shielded + total shielding
Application
LiYDY-CY TP is a paired PVC data cable with paired and integral copper shielding. Areas of application include measurement, control and speech signals such as scales and low-voltage switchboard plant engineering, interference-sensitive operating controls, control and measurement technology and highly sensitive data processing systems.
Features
- Very good EMV properties
- Flexible
Construction
| Conductor |
Bare copper wire, reference to VDE 0812 |
|---|---|
| Insulation |
PVC,Conforming to EN 50363-3 + VDE 0207-363-3 |
| Color |
ReferenceDIN 47100 |
| Construction |
2-core stranded wire |
| Shield |
Wound in pairs with tinned copper wire |
| Sheath |
Pairs PVC, TM2Conforming to EN 50363-4-1 + VDE 0207-363-4-1 |
| Construction |
Concentric layer pairs |
| Wrap |
PETP Foil |
| Shield |
Tinned copper drain wire with braided tinned copper (equal to conductor cross-section) |
| Sheath material |
PVC, TM2Conforming to EN 50363-4-1 + VDE 0207-363-4-1 |
| Sheath color |
Grey (RAL 7032) |
Technical data
| Peak operating voltage |
< 0,25="" mm²="max." 350=""> ≥ 0,25 mm² = max. 500 V |
|---|---|
| Test voltage |
Core/core 1500 V Core/shield 1200 V |
| Bending radius |
Fixed installation: 5xd Flexible application: 10 xd |
| Capacitor |
See “Technical data”-Capacitor |
| Radiation resistance |
8 x 10^7 cJ/kg |
| Temperature range |
Fixed installation: -30/+70°C Flexible application: -5 / +70°C |
| Fire resistance |
Flame retardant and self-extinguishing in accordance with IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance |
Complies with internal standards |
| Chemical resistance |
See “Technical data”-Chemical resistance |
| Environmentally friendly |
CompliantEURoHS Directive |
Dimensions
| No. | Specifications | Outer diameter -ø ± 10% | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| L03410214 | 2 x 2 x 0,14 mm² | 8,1 mm | 35,6 kg/km | 82 kg/km | |
| L03410314 | 3 x 2 x 0,14 mm² | 9,2 mm | 45,4 kg/km | 111 kg/km | |
| L03410414 | 4 x 2 x 0,14 mm² | 9,9 mm | 55,4 kg/km | 127 kg/km | |
| L03410614 | 6 x 2 x 0,14 mm² | 11,8 mm | 95 kg/km | 187 kg/km | |
| L03410814 | 8 x 2 x 0,14 mm² | 13,8 mm | 115,6 kg/km | 245 kg/km | |
| L03411014 | 10 x 2 x 0,14 mm² | 14,8 mm | 153,9 kg/km | 297 kg/km | |
| L03411214 | 12 x 2 x 0,14 mm² | 15,6 mm | 179,5 kg/km | 331 kg/km | |
| L03411414 | 14 x 2 x 0,14 mm² | 15,7 mm | 189,7 kg/km | 352 kg/km | |
| L03411614 | 16 x 2 x 0,14 mm² | 17,3 mm | 221,7 kg/km | 415 kg/km | |
| L03412414 | 24 x 2 x 0,14 mm² | 20,4 mm | 297,4 kg/km | 571 kg/km | |
| L03410225 | 2 x 2 x 0,25 mm² | 8,4 mm | 41,2 kg/km | 92 kg/km | |
| L03410325 | 3 x 2 x 0,25 mm² | 9,4 mm | 53,2 kg/km | 122 kg/km | |
| L03410425 | 4 x 2 x 0,25 mm² | 11,6 mm | 89,2 kg/km | 176 kg/km | |
| L03410625 | 6 x 2 x 0,25 mm² | 13,9 mm | 114,5 kg/km | 241 kg/km | |
| L03410825 | 8 x 2 x 0,25 mm² | 15,1 mm | 157,2 kg/km | 313 kg/km | |
| L03411025 | 10 x 2 x 0,25 mm² | 16,5 mm | 187,7 kg/km | 354 kg/km | |
| L03411225 | 12 x 2 x 0,25 mm² | 16,9 mm | 208,1 kg/km | 389 kg/km | |
| L03411425 | 14 x 2 x 0,25 mm² | 17,4 mm | 238,2 kg/km | 426 kg/km | |
| L03411625 | 16 x 2 x 0,25 mm² | 18,7 mm | 259,7 kg/km | 480 kg/km | |
| L03412425 | 24 x 2 x 0,25 mm² | 23,7 mm | 365,9 kg/km | 709 kg/km | |
| L03410234 | 2 x 2 x 0,34 mm² | 10,6 mm | 57,4 kg/km | 133 kg/km | |
| L03410334 | 3 x 2 x 0,34 mm² | 11,2 mm | 70,9 kg/km | 152 kg/km | |
| L03410434 | 4 x 2 x 0,34 mm² | 12,2 mm | 99,9 kg/km | 198 kg/km | |
| L03410634 | 6 x 2 x 0,34 mm² | 14,6 mm | 142 kg/km | 280 kg/km | |
| L03410834 | 8 x 2 x 0,34 mm² | 17,1 mm | 201,3 kg/km | 382 kg/km | |
| L03411034 | 10 x 2 x 0,34 mm² | 18,4 mm | 223,9 kg/km | 429 kg/km | |
| L03411234 | 12 x 2 x 0,34 mm² | 18,8 mm | 249,2 kg/km | 474 kg/km | |
| L03411434 | 14 x 2 x 0,34 mm² | 20,6 mm | 316,6 kg/km | 574 kg/km | |
| L03411634 | 16 x 2 x 0,34 mm² | 20,9 mm | 343,2 kg/km | 626 kg/km | |
| L03412434 | 24 x 2 x 0,34 mm² | 24,8 mm | 446,5 kg/km | 851 kg/km | |
| L03410250 | 2 x 2 x 0,50 mm² | 10,8 mm | 61,8 kg/km | 142 kg/km | |
| L03410350 | 3 x 2 x 0,50 mm² | 11,2 mm | 77,8 kg/km | 167 kg/km | |
| L03410450 | 4 x 2 x 0,50 mm² | 13,4 mm | 115,6 kg/km | 233 kg/km | |
| L03410650 | 6 x 2 x 0,50 mm² | 15 mm | 174,3 kg/km | 322 kg/km | |
| L03410850 | 8 x 2 x 0,50 mm² | 18,2 mm | 227,8 kg/km | 433 kg/km | |
| L03411050 | 10 x 2 x 0,50 mm² | 19,9 mm | 270,8 kg/km | 505 kg/km | |
| L03411250 | 12 x 2 x 0,50 mm² | 20,8 mm | 303,7 kg/km | 555 kg/km | |
| L03411450 | 14 x 2 x 0,50 mm² | 21,4 mm | 336,2 kg/km | 607 kg/km | |
| L03411650 | 16 x 2 x 0,50 mm² | 23,1 mm | 393,7 kg/km | 696 kg/km | |
| L03412450 | 24 x 2 x 0,50 mm² | 26,5 mm | 533,9 kg/km | 960 kg/km |
Other sizes and colors are available upon request. The above data are for reference only, and the actual product shall prevail.
