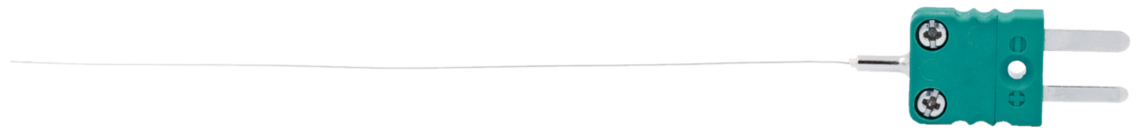

MTC101
Mineral insulated thermocouple with micro glow plug
Application
The main features of miniature mineral insulated thermocouples are fast response times and robust construction. These very small thermocouples are used wherever rapid temperature changes need to be controlled and measured,
For example in laboratories or medical technology. Depending on individual requirements, the connection ends can be designed as miniature thermal plugs, connecting cables or bare ends. As a manufacturer of thermal and compensation cables, we are able to offer a wide range of different types of cables
Features
- Short response time
- Precise measurement
- Low thermal conductivity
- Small size and large displacement
- Sheath diameter: 0.25 and 0.4 mm
- Available in different sheath lengths
- Electrical ground measurement point
Construction
| Thermocouple |
1 x Type K |
|---|---|
| Sheath material |
1.4541 and 2.4816 |
| Type |
– Mineral insulated thermocouples with micro plug – Mineral insulated thermocouples with bare ends – Mineral insulated thermocouples with connecting cable |
| Special products |
Available on demand and technically proven |
| Diameter |
0.25 mm and 0.40 mm |
| Accuracy |
Class 1 |
| Measuring points |
B Type, welded |
| Exposed ends |
max. 6 mm (for thermocouples without plug) |
Technical data
Dimensions
