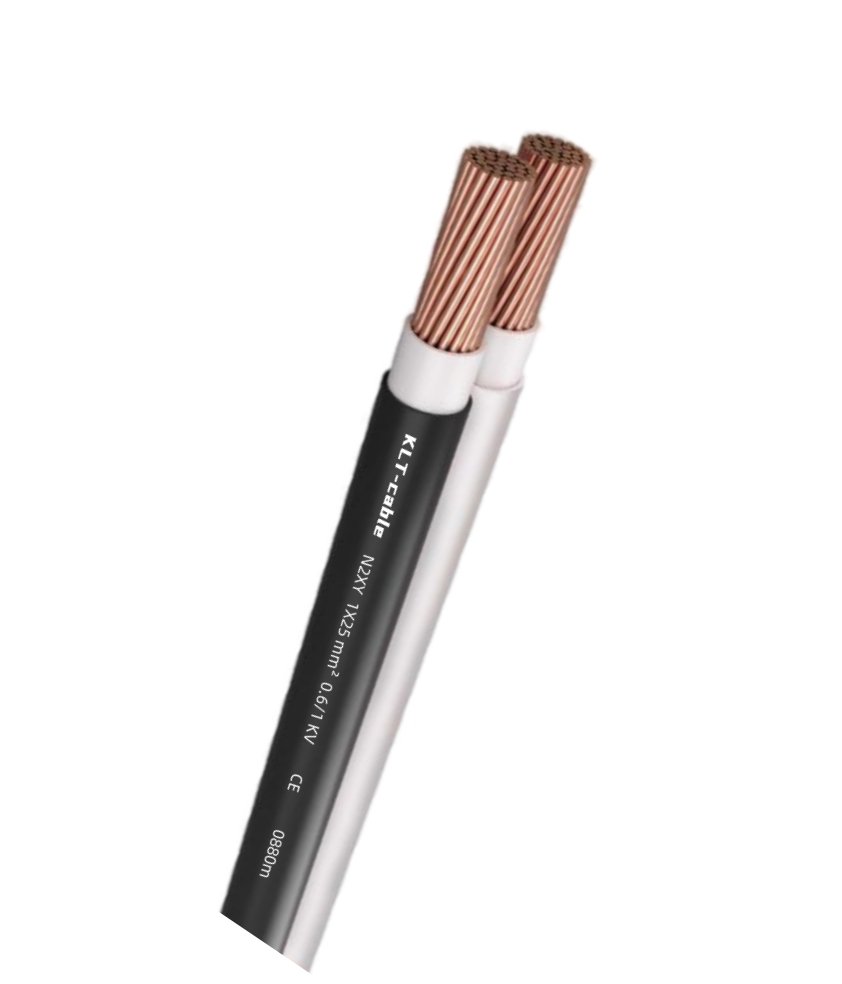

NYY dual-core parallel Power cable 600/1000V

application

NYY power cables are dedicated to the supply of energy for cable ducts, power stations, industrial and distribution boards, and user networks. It can also be used in brick walls, concrete (non-compact concrete), except for the present situation where flutter and swaying are required, NYY cables can be installed in the open air, laid underground, in water and in indoor areas to prevent mechanical damage. This cable is UV resistant and can be used outdoors.

CE= products comply with the EU Low Voltage Directive 2014/35/EU

certifications and standards

The materials used in production are cadmium-free and silicone-free, and do not contain substances that destroy the wetting properties of the coating

Product structure

conductor	Solid or multi-stranded bare copper conductors in accordance with DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2, IEC 60228 cl.1/cl.2
insulation	PVC insulated DIV4 in accordance with HD 603.1
Core color	Color coding in accordance with DIN VDE 0293-308, 0276- 603/HD 186 , 3+1/2 conductor core color Category J: Chartreuse (1/2), Brown, Black, Grey Category O: Blue (1/2), Brown, Black, Grey
shield	not
Sheath material	PVC outer sheath DMV5 compliant with HD 603.1
Sheath color	Black (RAL9005), other colors can be customized according to the request.

Technical parameters

Nominal voltage	Uo/U 600/1000 V
Test voltage	Core/core 4000V
Bending radius	Fixed laying: 12xD Flexible application: 15xD
Temperature range	Fixed laying: -40/+70 °C Flexible application: +5/+50 °C Temperature reachable in case of short circuit: +160º C
Flame retardant	Compliant with IEC 60332-1
Insulation resistance	＞100 MΩ x km
environmental protection	Comply with EU RoHS directive

Cable parameters

numbering	specification	Wire diameter	Copper weight	Cable weight ≈
HN5510505	4 x 1,5 mm²	13.8 mm	58,5 kg/km	225 kg/km	Send an inquiry
HN5510705	4 x 2,5 mm²	14 mm	98,6 kg/km	300 kg/km	Send an inquiry
HN5511205	4 x 6 mm²	16 mm	230 kg/km	410 kg/km	Send an inquiry
HN5511805	4 x 10 mm²	19 mm	385 kg/km	525 kg/km	Send an inquiry
HN5513405	4 x 16 mm²	22 mm	614 kg/km	1010 kg/km	Send an inquiry
HN5514205	4 x 25 mm²	26 mm	960 kg/km	1656 kg/km	Send an inquiry
HN5515005	4 x 35 mm²	28 mm	1326 kg/km	1862 kg/km	Send an inquiry
HN5510407	4 x 50 mm²	31 mm	1920 kg/km	2500 kg/km	Send an inquiry
HN5510507	4 x 70 mm²	35 mm	2655 kg/km	3380 kg/km	Send an inquiry
HN5510707	4 x 95 mm²	38 mm	3650 kg/km	4500 kg/km	Send an inquiry
HN5512507	4 x 120 mm²	42 mm	4610 kg/km	5500 kg/km	Send an inquiry
HN5513207	4 x 240 mm²	59 mm	9210 kg/km	6880 kg/km	Send an inquiry
HN5513407	3X25/16 mm²	25 mm	870 kg/km	1572 kg/km	Send an inquiry
HN5514207	3X50/25 mm²	30 mm	1680 kg/km	2330 kg/km	Send an inquiry
