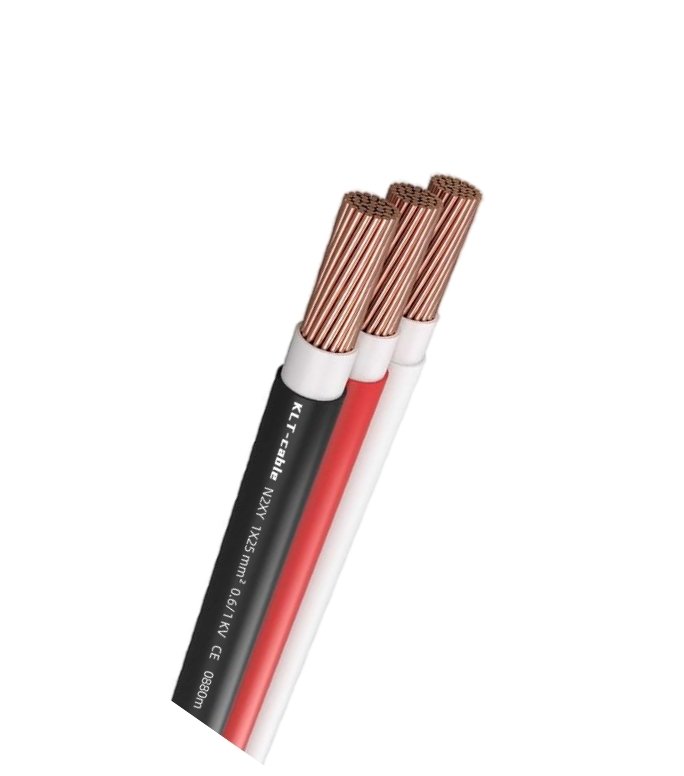

NYY three cores are parallel Power cable 600/1000V
NYY power cables are dedicated to the supply of energy for cable ducts, power stations, industrial and distribution boards, and user networks. It can also be used in brick walls, concrete (non-compact concrete), except for the present situation where flutter and swaying are required, NYY cables can be installed in the open air, laid underground, in water and in indoor areas to prevent mechanical damage. This cable is UV resistant and can be used outdoors.
CE= products comply with the EU Low Voltage Directive 2014/35/EU
application
NYY power cables are dedicated to the supply of energy for cable ducts, power stations, industrial and distribution boards, and user networks. It can also be used in brick walls, concrete (non-compact concrete), except for the present situation where flutter and swaying are required, NYY cables can be installed in the open air, laid underground, in water and in indoor areas to prevent mechanical damage. This cable is UV resistant and can be used outdoors.
CE= products comply with the EU Low Voltage Directive 2014/35/EU
certifications and standards
- The materials used in production are cadmium-free and silicone-free, and do not contain substances that destroy the wetting properties of the coating
Product structure
| conductor | Solid or multi-stranded bare copper conductors in accordance with DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2, IEC 60228 cl.1/cl.2 |
|---|---|
| insulation | PVC insulated DIV4 in accordance with HD 603.1 |
| Core color | Color coding in accordance with DIN VDE 0293-308, 0276- 603/HD 186 ,
3+1/2 conductor core color Category J: Chartreuse (1/2), Brown, Black, Grey Category O: Blue (1/2), Brown, Black, Grey |
| shield | not |
| Sheath material | PVC outer sheath DMV5 compliant with HD 603.1 |
| Sheath color | Black (RAL9005), other colors can be customized according to the request. |
Technical parameters
| Nominal voltage | Uo/U 600/1000 V |
|---|---|
| Test voltage | Core/core 4000V |
| Bending radius | Fixed laying: 12xD
Flexible application: 15xD |
| Temperature range | Fixed laying: -40/+70 °C
Flexible application: +5/+50 °C Temperature reachable in case of short circuit: +160º C |
| Flame retardant | Compliant with IEC 60332-1 |
| Insulation resistance | ＞100 MΩ x km |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Wire diameter | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| HN5510505 | 4 x 1,5 mm² | 13.8 mm | 58,5 kg/km | 225 kg/km | Send an inquiry |
| HN5510705 | 4 x 2,5 mm² | 14 mm | 98,6 kg/km | 300 kg/km | Send an inquiry |
| HN5511205 | 4 x 6 mm² | 16 mm | 230 kg/km | 410 kg/km | Send an inquiry |
| HN5511805 | 4 x 10 mm² | 19 mm | 385 kg/km | 525 kg/km | Send an inquiry |
| HN5513405 | 4 x 16 mm² | 22 mm | 614 kg/km | 1010 kg/km | Send an inquiry |
| HN5514205 | 4 x 25 mm² | 26 mm | 960 kg/km | 1656 kg/km | Send an inquiry |
| HN5515005 | 4 x 35 mm² | 28 mm | 1326 kg/km | 1862 kg/km | Send an inquiry |
| HN5510407 | 4 x 50 mm² | 31 mm | 1920 kg/km | 2500 kg/km | Send an inquiry |
| HN5510507 | 4 x 70 mm² | 35 mm | 2655 kg/km | 3380 kg/km | Send an inquiry |
| HN5510707 | 4 x 95 mm² | 38 mm | 3650 kg/km | 4500 kg/km | Send an inquiry |
| HN5512507 | 4 x 120 mm² | 42 mm | 4610 kg/km | 5500 kg/km | Send an inquiry |
| HN5513207 | 4 x 240 mm² | 59 mm | 9210 kg/km | 6880 kg/km | Send an inquiry |
| HN5513407 | 3X25/16 mm² | 25 mm | 870 kg/km | 1572 kg/km | Send an inquiry |
| HN5514207 | 3X50/25 mm² | 30 mm | 1680 kg/km | 2330 kg/km | Send an inquiry |
Other sizes and colors are available upon request. The above data is for reference only and is subject to the actual product.
