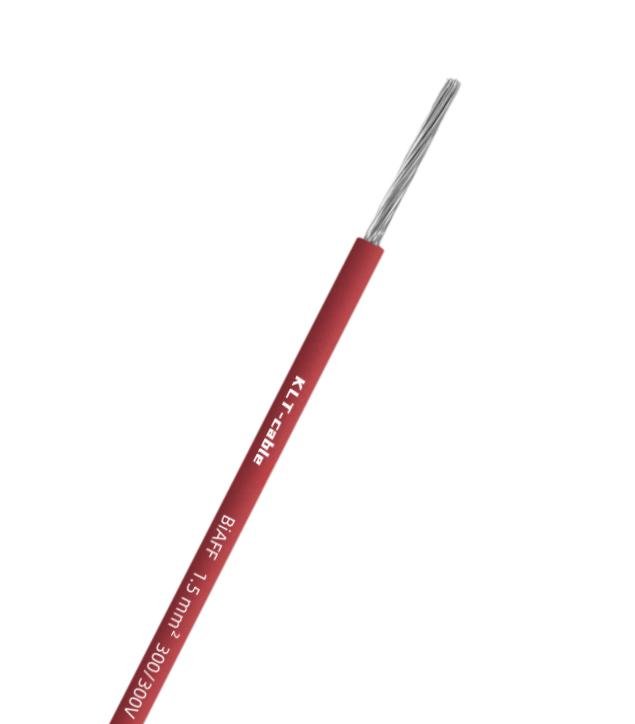

SiF Silicone insulation Class 5 conductors -30 ∽+180°C 300/500V
SiF/BiAFF are highly flexible silicon insulated wires that are flexible at low temperatures. In addition, they are suitable for highly flexible applications for internal wiring of lamps, heating equipment, switchboards, and switchboards in industries such as smelters, steel mills, hot rolling mills, industrial ovens and textile machinery manufacturing, lamping, lighting and electrical industries, and electric drive technology.
application
SiF/BiAFF are highly flexible silicon insulated wires that are flexible at low temperatures. In addition, they are suitable for highly flexible applications for internal wiring of lamps, heating equipment, switchboards, and switchboards in industries such as smelters, steel mills, hot rolling mills, industrial ovens and textile machinery manufacturing, lamping, lighting and electrical industries, and electric drive technology.
peculiarity
- No halogens
- Flexible at low temperatures
- heat resisting
- Flexibility
ADDITIONAL INFORMATION
- 0 = greenish-yellow, 1 = blue, 2 = black, 3 = brown, 4 = gray, 5 = white, 6 = reddish-brown, 7 = red
Product structure
| conductor | Tinned copper wire for high flexibility |
|---|---|
| insulation | EI2 compliant. EN 50363-1 + VDE 0207-363-1 compliant |
Technical parameters
| Nominal voltage | Voltage/current 300/300V |
|---|---|
| Test voltage | 2000 V |
| Bending radius | 5 xd |
| Radiation resistant | 2 x 10^7 cJ/kg |
| Temperature range | Fixed laying: -40/+180°C
Flexible application: -25/+180°C Short time use: +250°C |
| No halogens | Compliant with IEC 60754-1 + VDE 0482-754-1 |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of fire gases | IEC 60754-2 + VDE 0482-754-2 – No corrosive gases are generated |
| Chemical resistance | See “Technical Data” – Chemical Resistance |
| Weather resistance | Very good |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Wire diameter – ø | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| L0115025…* | 0,25 mm² | 0,05 mm | 2,4 kg/km | 6 kg/km | Send an inquiry |
| L0115050…* | 0,5 mm² | 0,05 mm | 4,8 kg/km | 9 kg/km | Send an inquiry |
| L0115051…* | 0,5 mm² | 0,07 mm | 4,8 kg/km | 9 kg/km | Send an inquiry |
| L0115075…* | 0,75 mm² | 0,05 mm | 7,2 kg/km | 12 kg/km | Send an inquiry |
| L0115076…* | 0,75 mm² | 0,07 mm | 7,2 kg/km | 13 kg/km | Send an inquiry |
| L0115100…* | 1 mm² | 0,05 mm | 9,6 kg/km | 15 kg/km | Send an inquiry |
| L0115101…* | 1 mm² | 0,07 mm | 9,6 kg/km | 15 kg/km | Send an inquiry |
| L0115150…* | 1,5 mm² | 0,07 mm | 14,4 kg/km | 22 kg/km | Send an inquiry |
| L0115250…* | 2,5 mm² | 0,07 mm | 24 kg/km | 35 kg/km | Send an inquiry |
