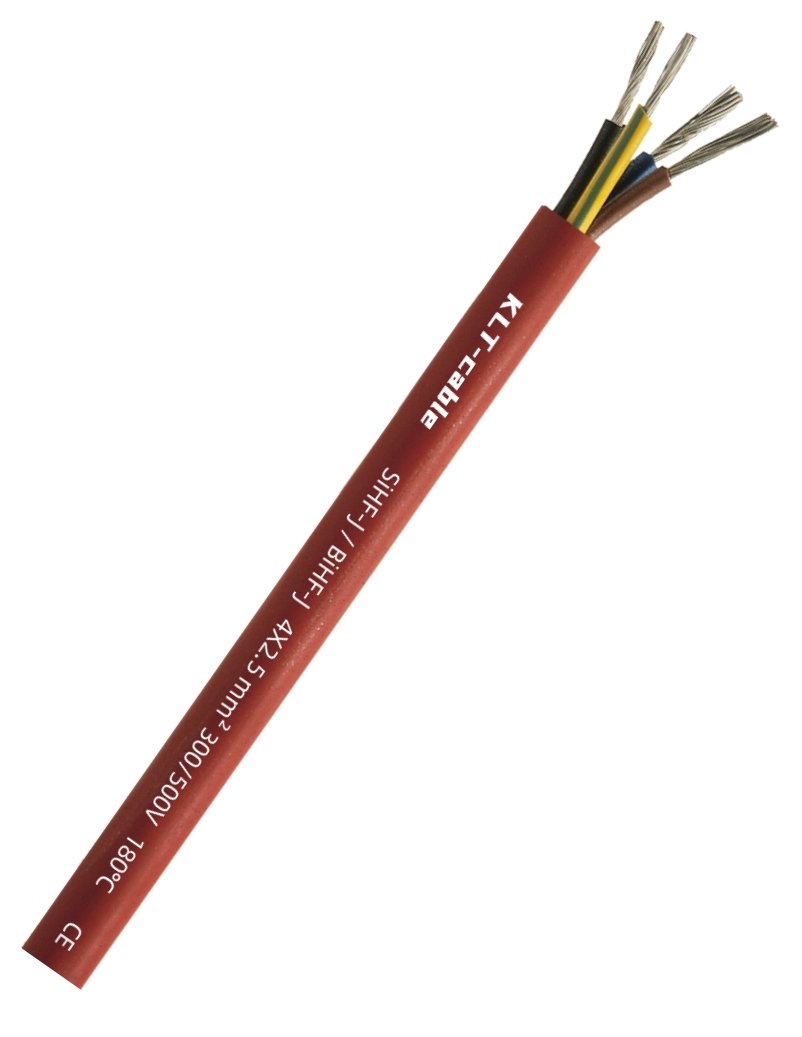

SIHF Silicone insulation, silicone sheathed cable, 300/500V
SiHF-J / BiHF-J consists of a silicon insulated wiring harness and a silicon outer jacket. It is flexible, halogen-free, and heat-resistant at low temperatures. It can be used in plastics processing, packaging machinery manufacturing, smelters, steel mills and hot rolling mills, safety technology, measurement and control technology, cement, glass and ceramics industries, refrigeration, heat and air conditioning technology, power plants and sauna construction.
application
SiHF-J / BiHF-J consists of a silicon insulated wiring harness and a silicon outer jacket. It is flexible, halogen-free, and heat-resistant at low temperatures. It can be used in plastics processing, packaging machinery manufacturing, smelters, steel mills and hot rolling mills, safety technology, measurement and control technology, cement, glass and ceramics industries, refrigeration, heat and air conditioning technology, power plants and sauna construction.
peculiarity
- No halogens
- heat resisting
- Flexible at low temperatures
- CE certified
ADDITIONAL INFORMATION
- Black sheath is available
Product structure
| conductor | Tinned copper strands comply with IEC 60228, EN 60228, VDE 0295, Class 5 |
|---|---|
| insulation | Besilen® EI2 compliant. Compliant with EN 50363-1 + VDE 0207-363-1 |
| color | The colours are HD 308 (VDE 0293-308) compliant, with a 6-core black core with continuous numerals
Compliant with EN 50334 + VDE 0293-334, 3-core green yellow ground wire |
| structure | delamination |
| Sheath material: | EM9 compliant. Complies with EN 50363-2-1 + VDE 0207-363-2-1 |
| Sheath color | Reddish-brown (similar to RAL 3016) |
Technical parameters
| Nominal voltage | Voltage/current 300/500 V |
|---|---|
| Test voltage | Core/core 2000 V |
| Bending radius | Fixed laying: 4 x d
Flexible application: 6 x d |
| Radiation resistant | 2 x 10^7 cJ/kg |
| Temperature range | Fixed laying: -40/+180°C
Flexible application: -25/+180°C Short time use: +250°C |
| No halogens | Compliant with IEC 60754-1 + VDE 0482-754-1 |
| Fire resistance | Flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of fire gases | IEC 60754-2 + VDE 0482-754-2 – No corrosive gases are generated |
| Chemical resistance | See “Technical Data” – Chemical Resistance |
| Weather resistance | Very good |
| environmental protection | Comply with EU RoHS directive |
Cable parameters
| numbering | specification | Wire diameter – ø | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|
| L01410202 | 2 x 0,25 mm² | 0,16 mm | 4,8 kg/km | 23 kg/km | Send an inquiry |
| L01410402 | 4 x 0,25 mm² | 0,16 mm | 9,6 kg/km | 32 kg/km | Send an inquiry |
| L01410205 | 2 x 0,50 mm² | 0,21 mm | 9,6 kg/km | 31 kg/km | Send an inquiry |
| L01410305 | 3 x 0,50 mm² | 0,21 mm | 14,4 kg/km | 37 kg/km | Send an inquiry |
| L01410405 | 4 x 0,50 mm² | 0,21 mm | 19,2 kg/km | 45 kg/km | Send an inquiry |
| L01410505 | 5 x 0,50 mm² | 0,21 mm | 24 kg/km | 53 kg/km | Send an inquiry |
| L01410705 | 7 x 0,50 mm² | 0,21 mm | 33,6 kg/km | 69 kg/km | Send an inquiry |
| L01411205 | 12 x 0,50 mm² | 0,21 mm | 57,6 kg/km | 113 kg/km | Send an inquiry |
| L01411805 | 18 x 0,50 mm² | 0,21 mm | 86,4 kg/km | 164 kg/km | Send an inquiry |
| L01412505 | 25 x 0,50 mm² | 0,21 mm | 120 kg/km | 225 kg/km | Send an inquiry |
| L01410207 | 2 x 0,75 mm² | 0,21 mm | 14,4 kg/km | 41 kg/km | Send an inquiry |
| L01410307 | 3 x 0,75 mm² | 0,21 mm | 21,6 kg/km | 49 kg/km | Send an inquiry |
| L01410407 | 4 x 0,75 mm² | 0,21 mm | 28,8 kg/km | 60 kg/km | Send an inquiry |
| L01410507 | 5 x 0,75 mm² | 0,21 mm | 36 kg/km | 72 kg/km | Send an inquiry |
| L01410607 | 6 x 0,75 mm² | 0,21 mm | 43,2 kg/km | 86 kg/km | Send an inquiry |
| L01410707 | 7 x 0,75 mm² | 0,21 mm | 50,4 kg/km | 96 kg/km | Send an inquiry |
| L01411007 | 10 x 0,75 mm² | 0,21 mm | 57,6 kg/km | 136 kg/km | Send an inquiry |
| L01411207 | 12 x 0,75 mm² | 0,21 mm | 86,4 kg/km | 157 kg/km | Send an inquiry |
| L01411607 | 16 x 0,75 mm² | 0,21 mm | 115,2 kg/km | 201 kg/km | Send an inquiry |
| L01411807 | 18 x 0,75 mm² | 0,21 mm | 129,6 kg/km | 228 kg/km | Send an inquiry |
| L01412507 | 25 x 0,75 mm² | 0,21 mm | 180 kg/km | 314 kg/km | Send an inquiry |
| L01410210 | 2 x 1,00 mm² | 0,21 mm | 19,2 kg/km | 46 kg/km | Send an inquiry |
| L01410310 | 3 x 1,00 mm² | 0,21 mm | 28,8 kg/km | 57 kg/km | Send an inquiry |
| L01410410 | 4 x 1,00 mm² | 0,21 mm | 38,4 kg/km | 70 kg/km | Send an inquiry |
| L01410510 | 5 x 1,00 mm² | 0,21 mm | 48 kg/km | 84 kg/km | Send an inquiry |
| L01410610 | 6 x 1,00 mm² | 0,21 mm | 57,6 kg/km | 101 kg/km | Send an inquiry |
| L01410710 | 7 x 1,00 mm² | 0,21 mm | 67,2 kg/km | 113 kg/km | Send an inquiry |
| L01410810 | 8 x 1,00 mm² | 0,21 mm | 76,8 kg/km | 129 kg/km | Send an inquiry |
| L01411010 | 10 x 1,00 mm² | 0,21 mm | 96 kg/km | 160 kg/km | Send an inquiry |
| L01411210 | 12 x 1,00 mm² | 0,21 mm | 115,2 kg/km | 185 kg/km | Send an inquiry |
| L01411410 | 14 x 1,00 mm² | 0,21 mm | 134,4 kg/km | 211 kg/km | Send an inquiry |
| L01411610 | 16 x 1,00 mm² | 0,21 mm | 153,6 kg/km | 242 kg/km | Send an inquiry |
| L01411810 | 18 x 1,00 mm² | 0,21 mm | 172,8 kg/km | 270 kg/km | Send an inquiry |
| L01412010 | 20 x 1,00 mm² | 0,21 mm | 192 kg/km | 296 kg/km | Send an inquiry |
| L01412510 | 25 x 1,00 mm² | 0,21 mm | 240 kg/km | 369 kg/km | Send an inquiry |
| L01410215 | 2 x 1,50 mm² | 0,26 mm | 28,8 kg/km | 62 kg/km | Send an inquiry |
| L01410315 | 3 x 1,50 mm² | 0,26 mm | 43,2 kg/km | 80 kg/km | Send an inquiry |
| L01410415 | 4 x 1,50 mm² | 0,26 mm | 57,6 kg/km | 102 kg/km | Send an inquiry |
| L01410515 | 5 x 1,50 mm² | 0,26 mm | 72 kg/km | 121 kg/km | Send an inquiry |
| L01410615 | 6 x 1,50 mm² | 0,26 mm | 86,4 kg/km | 142 kg/km | Send an inquiry |
| L01410715 | 7 x 1,50 mm² | 0,26 mm | 100,8 kg/km | 158 kg/km | Send an inquiry |
| L01410815 | 8 x 1,50 mm² | 0,26 mm | 115,2 kg/km | 187 kg/km | Send an inquiry |
| L01411215 | 12 x 1,50 mm² | 0,26 mm | 172,8 kg/km | 265 kg/km | Send an inquiry |
| L01411615 | 16 x 1,50 mm² | 0,26 mm | 230,4 kg/km | 352 kg/km | Send an inquiry |
| L01411815 | 18 x 1,50 mm² | 0,26 mm | 259,2 kg/km | 391 kg/km | Send an inquiry |
| L01412015 | 20 x 1,50 mm² | 0,26 mm | 288 kg/km | 429 kg/km | Send an inquiry |
| L01412415 | 24 x 1,50 mm² | 0,26 mm | 345,6 kg/km | 520 kg/km | Send an inquiry |
| L01412515 | 25 x 1,50 mm² | 0,26 mm | 360 kg/km | 539 kg/km | Send an inquiry |
| L01410225 | 2 x 2,50 mm² | 0,26 mm | 48 kg/km | 99 kg/km | Send an inquiry |
| L01410325 | 3 x 2,50 mm² | 0,26 mm | 72 kg/km | 123 kg/km | Send an inquiry |
| L01410425 | 4 x 2,50 mm² | 0,26 mm | 96 kg/km | 153 kg/km | Send an inquiry |
| L01410525 | 5 x 2,50 mm² | 0,26 mm | 120 kg/km | 192 kg/km | Send an inquiry |
| L01410625 | 6 x 2,50 mm² | 0,26 mm | 144 kg/km | 224 kg/km | Send an inquiry |
| L01410725 | 7 x 2,50 mm² | 0,26 mm | 168 kg/km | 251 kg/km | Send an inquiry |
| L01410925 | 9 x 2,50 mm² | 0,26 mm | 216 kg/km | 333 kg/km | Send an inquiry |
| L01411225 | 12 x 2,50 mm² | 0,26 mm | 288 kg/km | 417 kg/km | Send an inquiry |
| L01412425 | 24 x 2,50 mm² | 0,26 mm | 576 kg/km | 813 kg/km | Send an inquiry |
| L01410240 | 2 x 4,00 mm² | 0,31 mm | 76,8 kg/km | 148 kg/km | Send an inquiry |
| L01410340 | 3 x 4,00 mm² | 0,31 mm | 115,2 kg/km | 186 kg/km | Send an inquiry |
| L01410440 | 4 x 4,00 mm² | 0,31 mm | 153,6 kg/km | 230 kg/km | Send an inquiry |
| L01410540 | 5 x 4,00 mm² | 0,31 mm | 192 kg/km | 282 kg/km | Send an inquiry |
| L01410740 | 7 x 4,00 mm² | 0,31 mm | 230,4 kg/km | 371 kg/km | Send an inquiry |
| L01410260 | 2 x 6,00 mm² | 0,31 mm | 115,2 kg/km | 201 kg/km | Send an inquiry |
| L01410360 | 3 x 6,00 mm² | 0,31 mm | 172,8 kg/km | 254 kg/km | Send an inquiry |
| L01410460 | 4 x 6,00 mm² | 0,31 mm | 230,4 kg/km | 317 kg/km | Send an inquiry |
| L01410560 | 5 x 6,00 mm² | 0,31 mm | 288 kg/km | 383 kg/km | Send an inquiry |
| L01410461 | 4 x 10,0 mm² | 0,41 mm | 384 kg/km | 556 kg/km | Send an inquiry |
| L01410561 | 5 x 10,0 mm² | 0,41 mm | 480 kg/km | 679 kg/km | Send an inquiry |
| L01410462 | 4 x 16,0 mm² | 0,41 mm | 614,4 kg/km | 820 kg/km | Send an inquiry |
| L01410463 | 4 x 25,0 mm² | 0,41 mm | 960 kg/km | 1330 kg/km | Send an inquiry |
| L01410464 | 4 x 35,0 mm² | 0,41 mm | 1344 kg/km | 1800 kg/km | Send an inquiry |
Other sizes and colors are available upon request. The above data is for reference only and is subject to the actual product.
