SR D311

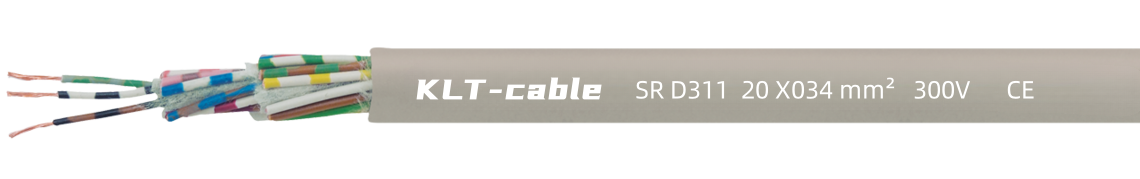

Semi-rigid PVC data cable
Application
SR D311 is a semi-rigid PVC data cable with a small bend radius. Areas of application include measurement, control and speech signals, such as medical technology, scale and low-voltage switchboard plant engineering, control and measurement technology, interference-sensitive operating controls and highly sensitive data processing systems.
Features
- Small outside diameter
- Flexible
Construction
| Conductor |
Bare copper wire to ASTM B 286 |
|---|---|
| Insulation |
Semi-rigid polyvinyl chloride |
| Color |
Layered according to color code |
| Construction | |
| Sheath material |
PVC |
| Sheath color |
Grey (RAL 7032) |
Technical data
| Voltage |
UL/CSA：300 V |
|---|---|
| Test voltage |
Core/core 2000 V |
| Bending radius |
Fixed installation: 5xd Flexible application: 10 xd |
| Temperature range |
Fixed installation: -30/+70°C Flexible application: -5 / +70°C UL/CSA：+80°C |
| Fire resistance |
Flame retardant and self-extinguishing in accordance with IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1, FT2 |
| Oil resistance |
In accordance with internal standards |
| Chemical resistance |
See “Technical data” –Chemical resistance |
| Environmentally friendly |
CompliantEURoHS directive |
Dimensions
| No. | Specifications | Copper weight | Cable weight≈ | |
|---|---|---|---|---|
| L03110226 | 2 x 26 AWG | 2,7 kg/km | 16 kg/km | |
| L03110326 | 3 x 26 AWG | 4 kg/km | 19 kg/km | |
| L03110426 | 4 x 26 AWG | 5,4 kg/km | 21 kg/km | |
| L03110526 | 5 x 26 AWG | 6,7 kg/km | 25 kg/km | |
| L03110726 | 7 x 26 AWG | 9,4 kg/km | 30 kg/km | |
| L03110826 | 8 x 26 AWG | 10,8 kg/km | 36 kg/km | |
| L03111226 | 12 x 26 AWG | 16,1 kg/km | 45 kg/km | |
| L03111626 | 16 x 26 AWG | 21,5 kg/km | 56 kg/km | |
| L03111826 | 18 x 26 AWG | 24,2 kg/km | 61 kg/km | |
| L03112526 | 25 x 26 AWG | 33,6 kg/km | 80 kg/km | |
| L03110224 | 2 x 24 AWG | 4,4 kg/km | 20 kg/km | |
| L03110324 | 3 x 24 AWG | 6,6 kg/km | 23 kg/km | |
| L03110424 | 4 x 24 AWG | 8,8 kg/km | 27 kg/km | |
| L03110524 | 5 x 24 AWG | 11 kg/km | 32 kg/km | |
| L03110724 | 7 x 24 AWG | 15,5 kg/km | 39 kg/km | |
| L03110824 | 8 x 24 AWG | 17,7 kg/km | 45 kg/km | |
| L03111224 | 12 x 24 AWG | 26,5 kg/km | 59 kg/km | |
| L03111624 | 16 x 24 AWG | 35,3 kg/km | 74 kg/km | |
| L03111824 | 18 x 24 AWG | 39,7 kg/km | 82 kg/km | |
| L03112524 | 25 x 24 AWG | 55,2 kg/km | 107 kg/km | |
| L03110222 | 2 x 22 AWG | 6,9 kg/km | 24 kg/km | |
| L03110322 | 3 x 22 AWG | 10,4 kg/km | 29 kg/km | |
| L03110422 | 4 x 22 AWG | 13,8 kg/km | 34 kg/km | |
| L03110522 | 5 x 22 AWG | 17,3 kg/km | 41 kg/km | |
| L03110722 | 7 x 22 AWG | 24,2 kg/km | 51 kg/km | |
| L03110822 | 8 x 22 AWG | 27,6 kg/km | 60 kg/km | |
| L03111222 | 12 x 22 AWG | 41,5 kg/km | 78 kg/km | |
| L03111622 | 16 x 22 AWG | 55,3 kg/km | 100 kg/km | |
| L03111822 | 18 x 22 AWG | 62,2 kg/km | 110 kg/km | |
| L03112522 | 25 x 22 AWG | 86,4 kg/km | 146 kg/km | |
| L03110220 | 2 x 20 AWG | 11,9 kg/km | 33 kg/km | |
| L03110320 | 3 x 20 AWG | 17,9 kg/km | 40 kg/km | |
| L03110420 | 4 x 20 AWG | 23,8 kg/km | 48 kg/km | |
| L03110520 | 5 x 20 AWG | 29,8 kg/km | 57 kg/km | |
| L03110720 | 7 x 20 AWG | 41,7 kg/km | 73 kg/km | |
| L03111220 | 12 x 20 AWG | 71,4 kg/km | 115 kg/km | |
| L03111820 | 18 x 20 AWG | 107,1 kg/km | 164 kg/km | |
| L03112520 | 25 x 20 AWG | 148,8 kg/km | 228 kg/km | |
| L03110218 | 2 x 18 AWG | 18,4 kg/km | 43 kg/km | |
| L03110318 | 3 x 18 AWG | 27,6 kg/km | 53 kg/km | |
| L03110418 | 4 x 18 AWG | 36,9 kg/km | 66 kg/km | |
| L03110518 | 5 x 18 AWG | 46,1 kg/km | 79 kg/km | |
| L03110718 | 7 x 18 AWG | 64,5 kg/km | 102 kg/km | |
| L03111218 | 12 x 18 AWG | 110,6 kg/km | 164 kg/km | |
| L03111818 | 18 x 18 AWG | 165,9 kg/km | 238 kg/km | |
| L03112518 | 25 x 18 AWG | 230,4 kg/km | 321 kg/km | |
| L03110216 | 2 x 16 AWG | 23,6 kg/km | 51 kg/km | |
| L03110316 | 3 x 16 AWG | 35,4 kg/km | 64 kg/km | |
| L03110416 | 4 x 16 AWG | 47,2 kg/km | 78 kg/km | |
| L03110516 | 5 x 16 AWG | 59 kg/km | 92 kg/km | |
| L03110716 | 7 x 16 AWG | 82,7 kg/km | 123 kg/km |
Other sizes and colors are available upon request. The above data are for reference only, and the actual product shall prevail.
