SV 602P

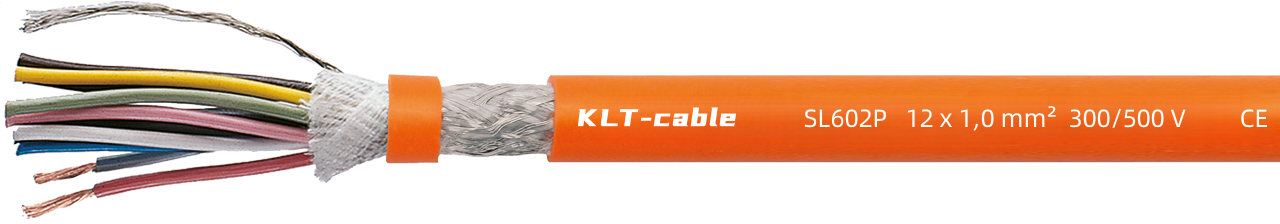

PUR sheathed flexible servo motor speed feedback shielded cable
Application
SL602P is a TPE/PUR feedback cable with integral copper shielding. It is a highly flexible mobile connection cable suitable for speedometers, brakes, temperature controls, etc. in electric motors and for continuously flexible applications in cable tracks in automation technology, control and production engineering, woodworking machinery, machine and industrial factory construction, even under high mechanical requirements and in dry, humid and low-temperature conditions.
CE= Product complies with the EU Low Voltage Directive 2014/35/EU
Features
- Electromagnetic compatibility EMC occasions
- Very high flexibility
- Long service life
- Suitable for cable tracks
- Adhesion-free installation
- Oil resistant
- Halogen-free
- Remains flexible at low temperatures
Remarks
- Can be customized upon request.
Construction
| Conductor |
Bare copper wire to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation |
PE L/MD Conforms. Conforming to EN 50290-2-23 + VDE 0819-103 |
| Core color |
Color separation |
| Construction |
Layering |
| Shielding |
Tinned copper braid |
| Sheath material |
PVC, TM2 compliant. Conforms to EN 50363-4-1 + VDE 0207-363-4-1 |
| Sheath color |
Gray (RAL 700) |
Technical data
| Operating voltage |
500V |
|---|---|
| Test voltage |
2000 V |
| Bending radius |
Fixed installation: 5xd Flexible application: 10 xd Continuous flexible: 12 xd |
| Radiation resistance |
8 x 10⁷ Joules/kg |
| Temperature range |
Fixed installation: -30/+70°C Flexible application: -5 / +70°C |
| Oil resistance |
Complies with internal standards |
| Chemical resistance |
See “Technical data” –Chemical resistance |
| Environmental protection |
CompliantEURoHS directive |
Dimensions
| Number | Specifications | Single wire max. | Outer diameter -ø ± 10% | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L08060407 | 4 x 0.75 mm² + 2 x (2 x 0.34 mm²) | 0,21/0,16 mm | 12,7 mm | 123,0 KG/KM | 205 KG/KM | |
| L08060415 | 4 x 1.50 mm² + 2 x (2 x 0.75 mm²) | 0,26/0,21 mm | 14,0 mm | 180,6 KG/KM | 274 KG/KM | |
| L08060425 | 4 x 2,50 mm² + 2 x (2 x 0,75 mm²) | 0,26/0,21 mm | 15,4 mm | 230,2 KG/KM | 346 KG/KM | |
| L08060440 | 4 x 4,00 mm² + (2 x 1,00 mm²) + (2 x 1,50 mm²) | 0,31/0,21/0,26 mm | 17,2 mm | 349,1 KG/KM | 473 KG/KM | |
| L08060460 | 4 x 6,00 mm² + (2 x 1,00 mm²) + (2 x 1,50 mm²) | 0,31/0,21/0,26 mm | 19,1 mm | 429,3 KG/KM | 581 KG/KM | |
| L08060470 | 4 x 10,00 mm² + 2 x (2 x 1,00 mm²) | 0,41/0,21 mm | 22,6 mm | 595.9 KG/KM | 843 KG/KM | |
| L08060480 | 4 x 16,00 mm² + 2 x (2 x 1,50 mm²) | 0,41/0,21 mm | 27,5 mm | 860,0 KG/KM | 1197 KG/KM | |
| L08060490 | 4 x 25,00 mm² + 2 x (2 x 1,50 mm²) | 0,41/0,26 mm | 31,5 mm | 1254.2 KG/KM | 1690 KG/KM | |
| L08060495 | 4 x 35,00 mm² + 2 x (2 x 1,50 mm²) | 0,41/0,26 mm | 35,2 mm | 1678,3 KG/KM | 2340 KG/KM |
Other sizes and colors are available upon request. The above data are for reference only, subject to the actual product.
