SV 623P

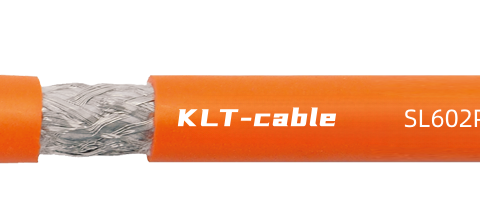

PUR sheathed TPE core Unshielded PUR motor connection cable 0.6/1 kV, more flexible
Application
SL623P is a PUR motor connection cable with TPE cores 0.6/1 kV and integral copper shielding and low temperature flexibility for DNC motors on frequency converters. This power cable is recommended for use in industries with intelligent servo drives, such as automation technology, power, control and production engineering, handling systems, the automotive manufacturing industry and cable tracks.
CE= Product complies with the EU Low Voltage Directive 2014/35/EU
Features
- Suitable for cable drag chains
- Very high flexibility
- Very good EMC properties
- Oil resistant
- Long service life
- Adhesion-free installation
- Halogen-free
- Elastic at low temperatures
Remarks
Construction
| Conductor |
Bare copper wire according to IEC 60228, VDE 0295, 6 Class standard |
|---|---|
| Insulation |
Thermoplastic elastomer |
| Color |
Black wire core with consecutive numbers, according to EN 50334 + VDE 0293-334and a green-yellow ground wire |
| Structure |
Layering |
| Wrap |
Two layers of non-woven tape |
| Shield |
Tinned copper braid |
| Outer wrap |
Non-woven tape |
| Sheath material |
PUR, TMPU according to EN 50363-10-2 + VDE 0207-363-10-2, rough surface |
| Sheath color |
Orange (RAL 2003) |
Technical data
| Operating Voltage |
Uo/U 0.6/1 kV |
|---|---|
| Test Voltage |
Core/Core 4000 V |
| Minimum Bending Radius |
Fixed Laying: 4xd Flexible application: 6 xd Continuous flexible: 10 xd |
| Radiation Resistance |
5 x 10⁷ cJ/kg |
| Temperature Range |
Fixed installation: -50/+90°C Flexible application: -40 / +90°C |
| Oil Resistance |
Very good – TMPU complies with EN 50363-10-2 + VDE 0207-363-10-2 standards |
| Chemical Resistance |
Resistant to acids, alkalis, solvents, hydraulic oils, etc. |
| Weather Resistance |
Very Good |
| Environmentally Friendly |
CompliantEURoHS Directive |
Dimensions
| No. | Specifications | Monofilament max. | Outer diameter -ø ± 5% | Copper weight | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L08230415 | 4 x 1,50 mm² | 0,16 mm | 9,5 mm | 95,8 kg/km | 141 kg/km | |
| L08230425 | 4 x 2,50 mm² | 0,16 mm | 11,9 mm | 147,0 kg/km | 217 kg/km | |
| L08230440 | 4 x 4,00 mm² | 0,16 mm | 13,0 mm | 210,2 kg/km | 289 kg/km | |
| L08230460 | 4 x 6,00 mm2 | 0,21 mm | 15,9 mm | 300,5 kg/km | 420 kg/km | |
| L08230470 | 4 x 10,0 mm² | 0,21 mm | 18,5 mm | 489,9 kg/km | 627 kg/km | |
| L08230480 | 4 x 16,0 mm² | 0,21 mm | 22,4 mm | 751.3 kg/km | 965 kg/km | |
| L08230490 | 4 x 25,0 mm² | 0,21 mm | 25,5 mm | 1118,2 kg/km | 1363 kg/km | |
| L08230495 | 4 x 35,0 mm² | 0,21 mm | 29,5 mm | 1533.4 kg/km | 1848 kg/km | |
| L08230496 | 4 x 50,0 mm² | 0,31 mm | 34,5 mm | 2148,7 kg/km | 2553 kg/km |
Other sizes and colors are available upon request. The above data are for reference only, and the actual product shall prevail.
