TE 20TP

Application

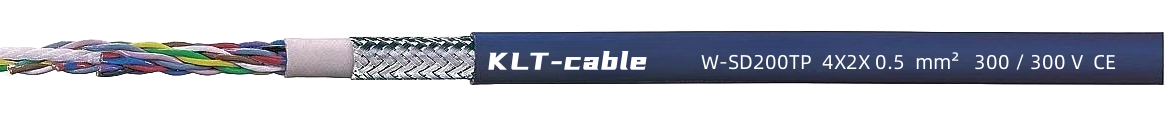

W-SD200TP is a continuous flexible mated TPE/PUR data cable with colored cores and integral copper shielding. In addition, it has good EMC properties. Recommended for use in handling, material handling and automation technology, wood processing and packaging machinery, industrial robot manufacturing, the automotive manufacturing industry and overhead structures.

CE= Product complies with the EU Low Voltage Directive 2014/35/EU

Features

Elastic at low temperatures
Halogen-free
High tear resistance
High wear resistance
Small bending radius
Shielded, good EMC properties
Bending life >15 million times

Remarks

Also available in size 050 on requestmm²and 075mm²!

Construction

Conductor	Bare copper strands in accordance with IEC 60228, VDE 0295, 6 Grade standard
Insulation	Thermoplastic elastomer TPE
Core color	Reference DIN 47100
Structure	Core wires are twisted in pairs in specially adapted layers, each layer covered with non-woven tape
Wrapping	Non-woven tape
Shielding	Tinned copper braid
Sheath material	PUR, TMPU in accordance with EN 50363-10-2 + VDE 0207-363-10-2 with matte finish (SD200TP is glossy PUR)
Sheath color	Gray (RAL 7000) Other colors on request

Technical data

Operating voltage	max. 350 V
Test voltage	Core/core 1500V Core/shielded 1200 V
Bending radius	Continuous flexibility: 7,5D
Radiation resistance	1 x 10⁷ cJ/kg
Temperature range	Occasional movement: -50/+90°C Continuous movement: +40/+90°C
Halogen-free	Conforms to IEC 60754-1 + VDE 0482-754-1
Oil resistance	Very good Conforms to IN50363-10-2+VDED0207-363-10-2
Chemical resistance	Resistant to acids, alkalis, solvents, hydraulic fluids, etc.
Continuous flexibility	Very good
Weather resistance	Very good
Environmentally friendly	Compliant with EU RoHS directive

Dimensions

0.11 mm Cable Diameter -ø ± 10% Specifications 0.11 mm

L07890214 2 x 2 x 0,14 mm² 12,5 mm 116mm 17,4 kg/km 60 kg/km

L07890314 3 x 2 x 0,14 mm² 12,5 mm 173 mm 20,2 kg/km 30 kg/km

L07890414 4 x 2 x 0,14 mm² 12,5 mm 6,7mm 24,7 kg/km 40 kg/km

L07890514 5 x 2 x 0,14 mm² 12,5 mm 5 mm 28,8 kg/km 43 kg/km

L07890614 6 x 2 x 0,14 mm² 12,5 mm 4. 4mm 31,5 kg/km 52 kg/km

L07890714 7 x 2 x 0,14 mm² 12,5 mm 7,4mm 35,9 kg/km 59 kg/km

L07891014 10 x 2 x 0,14 mm² 12,5 mm 5.6mm 475kg/km 72 kg/km

L07891414 14 x 2 x 0,14 mm² 12,5 mm 8 mm 62,7 kg/km 81 kg/km

L07891814 18 x 2 x 0,14 mm² 12,5 mm 9 mm 896kg/km 127kg/km

L07892514 25 x 2 x 0,14 mm² 12,5 mm 7,2 mm 114,3 kg/km 167 kg/km

L07890225 2 x 2 x 0,25 mm² 12,5 mm 173 mm 21,8 kg/km 33 kg/km

L07890325 3 x 2 x 0,25 mm² 12,5 mm Number 28,3 kg/km 51 kg/km

L07890425 4 x 2 x 0,25 mm² 12,5 mm 4. 4mm 36,1 kg/km 51 kg/km

L07890525 5 x 2 x 0,25 mm² 12,5 mm 116mm 41,1 kg/km 69 kg/km

L07890625 6 x 2 x 0,25 mm² 12,5 mm 7,9mm 473 kg/km 84 kg/km

L07890725 7 x 2 x 0,25 mm² 12,5 mm 117 mm 54 ,1 kg/km 67 kg/km

L07891025 10 x 2 x 0,25 mm² 12,5 mm 4.9 mm 70.8 kg/km 100 kg/km

L07891425 14 x 2 x 0,25 mm² 12,5 mm 0.11mm 108,7 kg/km 150kg/km

L07891825 18 x 2 x 0,25 mm² 12,5 mm 6,9mm 133,4 kg/km 185 kg/km

L07892525 25 x 2 x 0,25 mm² 12,5 mm 10,9mm 171,9 kg/km 259kg/km

L07890234 2 x 2 x 0,34 mm² 12,5 mm 7,9mm 20,3 kg/km 69 kg/km

L07890334 3 x 2 x 0,34 mm² 12,5 mm 9,6 mm 34,9 kg/km 47kg/km

L07890434 4 x 2 x 0,34 mm² 12,5 mm 116mm 43.2 kg/km 62 kg/km

L07890534 5 x 2 x 0,34 mm² 12,5 mm 117 mm 53 ,1 kg/km 72 kg/km

L07890734 7 x 2 x 0,34 mm² 12,5 mm Copper weight 66,4 kg/km 94 kg/km

L07891034 10 x 2 x 0,34 mm² 12,5 mm 9,4 mm 905kg/km 122kg/km

L07891434 14 x 2 x 0,34 mm² 12,5 mm 6,9mm 138,3 kg/km 179kg/km

L07891834 18 x 2 x 0,34 mm² 12,5 mm 0.11 mm 169,2 kg/km 220 kg/km

L07892534 25 x 2 x 0,34 mm² 12,5 mm 0.11 mm 247,3 kg/km Miles 310 kg/km

L07890250 2 x 2 x 0,50 mm² 12,5 mm 6,9 mm 34,6 kg/km 51 kg/km

L07890350 3 x 2 x 0,50 mm² 12,5 mm 116mm 473 kg/km Finished product weight

L07890450 4 x 2 x 0,50 mm² 12,5 mm 5.6mm 61.4 kg/km 84 kg/km

L07890550 5 x 2 x 0,50 mm² 12,5 mm 10 mm 73,1 kg/km 101 kg/km

L07890750 7 x 2 x 0,50 mm² 12,5 mm 8,8 mm 108,4 kg/km 134kg/km

L07891050 10 x 2 x 0,50 mm² 12,5 mm 0.11 mm 143,3 kg/km 186 kg/km

L07891450 14 x 2 x 0,50 mm² 12,5 mm 0.11 mm 191,7 kg/km 2 51kg/km

L07891850 18 x 2 x 0,50 mm² 12,5 mm 0.11 mm 257,8 kg/km 329kg/km

L07892550 25 x 2 x 0,50 mm² 12,5 mm 6 mm 336,5 kg/km 429 kg/km

L07890275 2 x 2 x 0,75 mm² 12,5 mm 6,4 mm 474 kg/km 84 kg/km

L07890375 3 x 2 x 0,75 mm² 12,5 mm 5.6mm 66,2 kg/km 84 kg/km

L07890475 4 x 2 x 0,75 mm² 12,5 mm 4.9 mm 101 kg/km 107 kg/km

L07890575 5 x 2 x 0,75 mm² 12,5 mm 0.11 mm 118,8 kg/km 147kg/km

L07890775 7 x 2 x 0,75 mm² 12,5 mm 6,9mm 148kg/km 208kg/km

L07891075 10 x 2 x 0,75 mm² 12,5 mm 0.11 mm 228kg/km 263kg/km

L07891475 14 x 2 x 0,75 mm² 12,5 mm 0.11 mm 296,9 kg/km 366kg/km

L07891875 18 x 2 x 0,75 mm² 12,5 mm 8,9 mm 3661,1 kg/km 456kg/km

L07892575 25 x 2 x 0,75 mm² 12,5 mm 17 mm 480,05 kg/km 597kg/km

Other sizes and colors are available upon request. The above data are for reference only and the actual product shall prevail.
